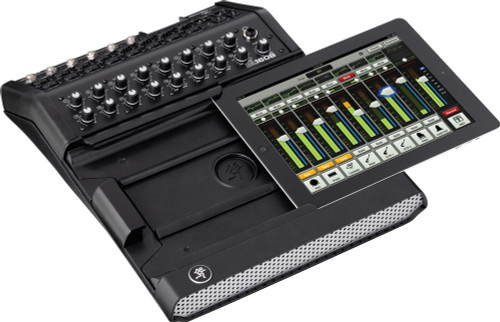

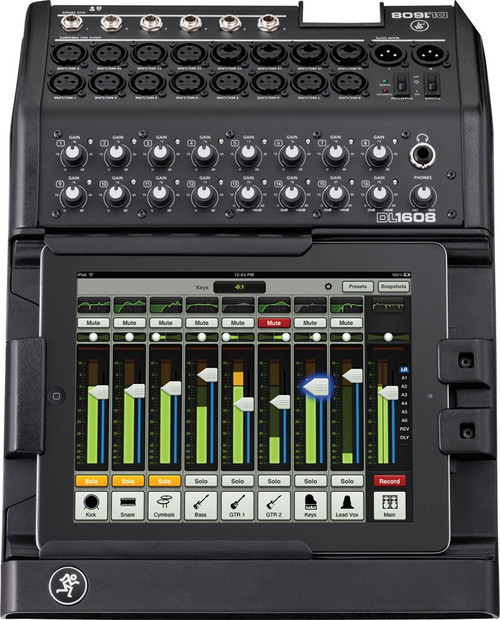

Mackie DL1608 16-Channel Digital Mixer with iPad Control (Discontinued)

Description

Details

Mackie DL1608 16 Channel Digital Mixer with iPad Control

Proven at millions of gigs worldwide, the Mackie DL1608 combines the power of a full-featured digital live sound mixer with the unmatched ease-of-use of mobile devices you already own. The 16-channel DL1608 features premium hardware like 16 boutique-quality Onyx preamps and Cirrus Logic® converters deliver unparalleled sound quality. Mackie’s class-leading Master Fader control software provides seamless wired-to-wireless control over an amazing amount of professional-grade processing for all inputs and outputs. Plus, you can control it all wirelessly from up to 20 iOS, Android™, macOS®, and Windows® devices. Truly the ideal digital mixer for bands, rental houses and production/installation, you get all the benefits of a next-gen console and more at an incredible price with the Mackie DL1608.

Features

Features

16-Channel Digital Mixer:

16 Onyx™ mic preamps
8 balanced outputs
High-end Cirrus Logic^®converters
Ultra low-noise, high-headroom design
Rugged, compact desktop design with iPad® dock
Rackmountable with optional kit

Flexible Wireless or Docked Control:

Mix wirelessly from anywhere in the venue
- Unmatched wireless control over mix
- Supports up to 20 devices at once
- Personal monitor mixing
Dock your iPad for added features and security
- Creates an integrated, self-contained desktop mixer
- Total control over assignable 2-channel recordings for immediate playback and easy exporting
- Playback music from any iPad app and incorporate into the mix
- Always keep your iPad charged
- PadLock™ feature locks down iPad for security
- Industry standard Kensington lock secures mixer
- iPad Air 2, iPad Air and iPad (4^th generation) docking compatibility
- Optional iPad mini docking tray available

Master Fader Control App:

Proven, intuitive workflow that’s customizable for your application
- Create view groups and see only the channels you need
- Unique access limiting hides controls you aren’t using
Export presets, shows and complete system backups
Quick setup with tons of factory and user-definable presets
Complete offline operation saves setup time at gig
Available for iOS, Android®, macOS®, and Windows®

Professional, Comprehensive DSP:

Packed with professional DSP processing
18 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
- 16 stereo-linkable input channels
- 2 stereo-linkable iPad return channels
12 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
- 6 stereo-linkable aux sends
- 4 stereo-linkable subgroups
- Main L/R busses
- EQ and Compressor feature modern and vintage modes
4 VCAs and 4 mute groups
2 stereo FX processors with 24 available effects and dedicated sends and returns

Record and Produce Like a Pro:

Pro Tools® | First and Waveform™ OEM professional software and plugin packages included
The Musician Collection for ProTools | First includes 23 plugins like BBD Delay, Eleven Lite, 304E EQ, and 304C Compressor
The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

Specification

General Digital
Sample Rate	48 kHz
A/D/A Bit Depth	24-bit
System Latency	1.5 ms
Frequency Response	±0, –1 dB, 20 Hz to 20 kHz
All Inputs to All Outputs
Distortion THD
Mic Input to Main Output, 1 kHz, –1 dBFS	<0.005%
Noise / Dynamic Range / Signal-to-Noise Ratio
EIN (150Ω termination)	-128 dbu
Mic input to Main Output (A–weighted)	Channel and main faders at unity: -79 dbu Faders down: -90 dbu
Crosstalk	Adjacent Inputs: <–120 dB @1 kHz Outputs: <–105 dB @1 kHz
Phones Level Pot Feedthrough @ Minimum Travel	<–75 dB
Signal-to-Noise Ratio	92 dB (Ref +4 dBu, One Channel and Main Fader at Unity, A–weighted)
Dynamic Range	109 dB (One channel and main fader at unity, A–weighted)
CMRR	>70 dB @1 kHz (60 dB gain)
Analog Inputs 1–16
Connectors	1-12: XLR Balanced 13-16: Combo XLR / TRS Balanced
XLR Mic Pre	Onyx
Input Impedance	1-12: 3kΩ 13-16: 3 kΩ mic [XLR]; 30 kΩ line [1/4"]
Max Input Level	XLR: +21 dBu 1/4": +30 dBu
Gain	XLR: 0 to 60 dB 1/4": -20 to 40 dB
48V Phantom Power (XLR)	48 VDC, 10 mA max per mic, with up to eight simultaneously. 5 mA max per mic, with up to 16 simultaneously.
Analog Main Out L/R
Connectors	XLR Balanced
Output Impedance	600 Ω
Max Output Level	+21 dBu
Analog Aux Sends 1 – 6
Connectors	1/4" TRS Impedance Balanced (Supports balanced / unbalanced operation)
Output Impedance	240 Ω Balanced 120 Ω Unbalanced
Max Output Level	+21 dBu
Analog Headphone Out
Connector	1/4" TRS Stereo
Max Output Level	+18 dBu into 600 Ω +19.5 dBu max into 100 Ω
Networking
Connector	100 MB Ethernet
Control	Complete
Simultaneous Control	20 iOS Devices
Power
Power Consumption	48W max
External Supply	Power Requirements: 100-240 VAC; 50-60 Hz; Universal Supply Output Voltage: 12 VDC Current: 4 A DC Connector: 5.5 mm x 2.5 mm barrel with locking ring
Line Cord	User-replaceable IEC
Operating Temperature [Extended Ambient Temperature]	0 - 40 ̊C 32 - 104 ̊F
Dimensions (H x W x D)
Front	1.6" (40 mm) x 11.5" (291 mm) x 15.4" (391 mm)
Rear	3.7" (95 mm) x 11.5" (291 mm) x 15.4" (391 mm)
Shipping	6.1" (155 mm) x 18.1" (460 mm) x 18.9" (480 mm)
Weight
Net	7.9 lbs (3.6 kg)
Shipping	12.8 lbs (5.8 kg)
