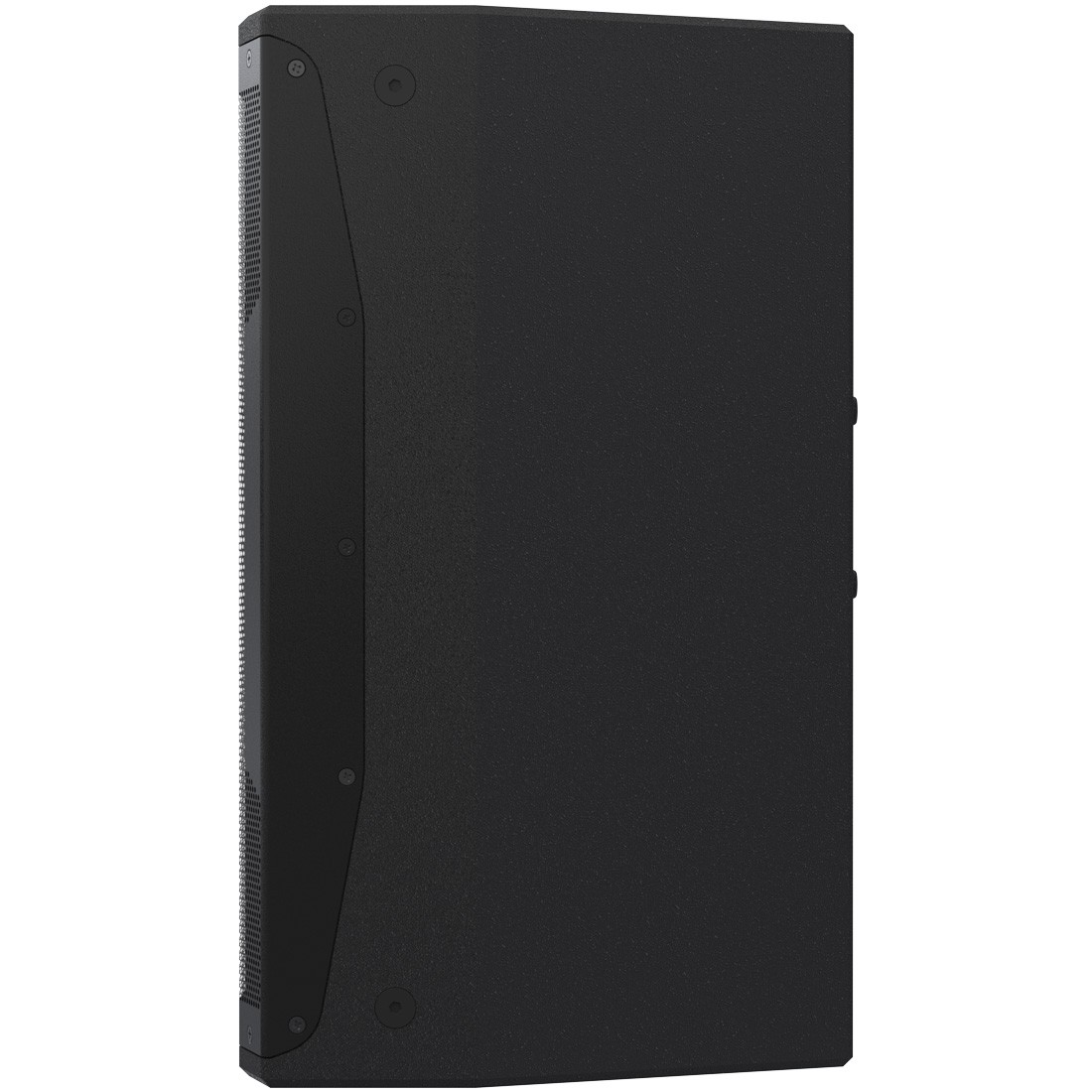

Mackie iP-10 10 inch Installation Loudspeaker (Discontinued)

Part # 2045152-00
Model # iP-10

Mackie’s iP-10 10″ Installation Loudspeaker is designed exclusively for a wide range of installed sound reinforcement applications, with the features contractors need and performance customers expect.


Description

Details

The Mackie iP-10 10″ Installation Loudspeaker is designed exclusively for a wide range of installed sound reinforcement applications. Behind iP-10’s clean, professional look are a high-output, custom-designed 10″ woofer and premium 1.4″ titanium diaphragm compression driver delivering rich, articulate full-bandwidth response. Ample rigging points support vertical and horizontal rigging and a choice of Neutrik® or terminal connections provides install flexibility. Optional ceiling and wall mounts are available for aesthetically demanding venues. Plus, the companion iP-18S 18″ subwoofer is perfect for additional low-frequency response and output in larger applications. Add the SP260 speaker processor with iP presets for quick setup and flawless sonic performance.

Features

Features

  • 10" 2-way low-profile installation loudspeaker
  • 10" high-output ceramic woofer with 2" voice coil for maximum output
  • 1.4" titanium compression driver provides smooth, consistent high-frequency response
  • 8 x M10 rigging points and rotatable 90° x 50° horn for vertical/horizontal rigging (PA-A2 accessory)
  • Optional ceiling and wall mount accessories meet the needs of the most aesthetically demanding venues (iP-CM100 & iP-WM100 accessories)
  • Rotatable center logo allows for clean presentation in all configurations
  • Convenient terminal strip connectivity saves time and cost
  • Dual Neutrik® parallel connectors
  • Lightweight, compact and durable 15mm poplar cabinet construction
  • Companion iP-18S 18" subwoofer extends low-frequency response and increases output in larger applications
  • Optional SP260 2x6 speaker processor delivers iP presets to get your system quickly dialed in



Specification
Frequency Range (–10 dB)50 Hz - 20 kHz
Horizontal Coverage Angle90°
Vertical Coverage Angle50°
Maximum SPL Peak124 dB
Nominal Impedance8Ω
Power Handling200W continuous
400W program
Crossover Frequency3 kHz
Low Frequency10" (254 mm) woofer, vented
High Frequency1.4" (35 mm) tweeter
Input ConnectorsTwo Neutrik NL4MP; 2-point screw terminal strip
Enclosure15 mm poplar with lightly textured black paint
MountingEight M10 rigging points
Dimensions (H x W x D)
Product20.5" (520 mm) x 12" (310 mm) x 13.4" (340 mm)
Shipping23.3" (593 mm) x 16.7" (425 mm) x 16.7" (425 mm)
Weight
Product26 lbs (11.8 kg)
Shipping34.4 lbs (15.6 kg)
