Mackie ProDX8 8 Channel Wireless Digital Mixer (Discontinued)

Description

Details

ProDX8 brings powerful digital mixing to small bands, venues and commercial applications that require lower channel counts with an intuitive, easy-to-use interface that looks great anywhere. Keep it simple with its single knob design, perfect for quick and easy level adjustments. Get total wireless control via the MixerConnect™ app to unlock recallable mix presets, built-in processing like EQ and compression per channel and great-sounding ReadyFX™ effects. Plus, with Bluetooth® streaming, you can wirelessly play back music or backing tracks right from your phone. ProDX8 delivers the powerful benefits of digital mixing with wireless control in an extremely compact design.

Features

Features

Simple and Intuitive

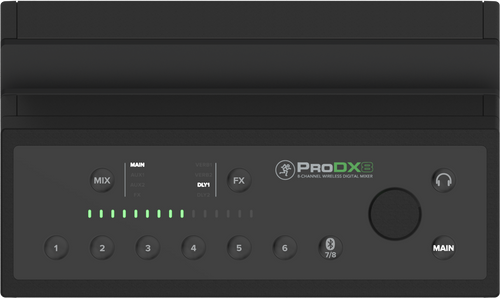

Control every level from the single knob front panel interface
Clean and professional design looks great anywhere
Ultra-compact for effortless transport and a perfect fit in tight spaces

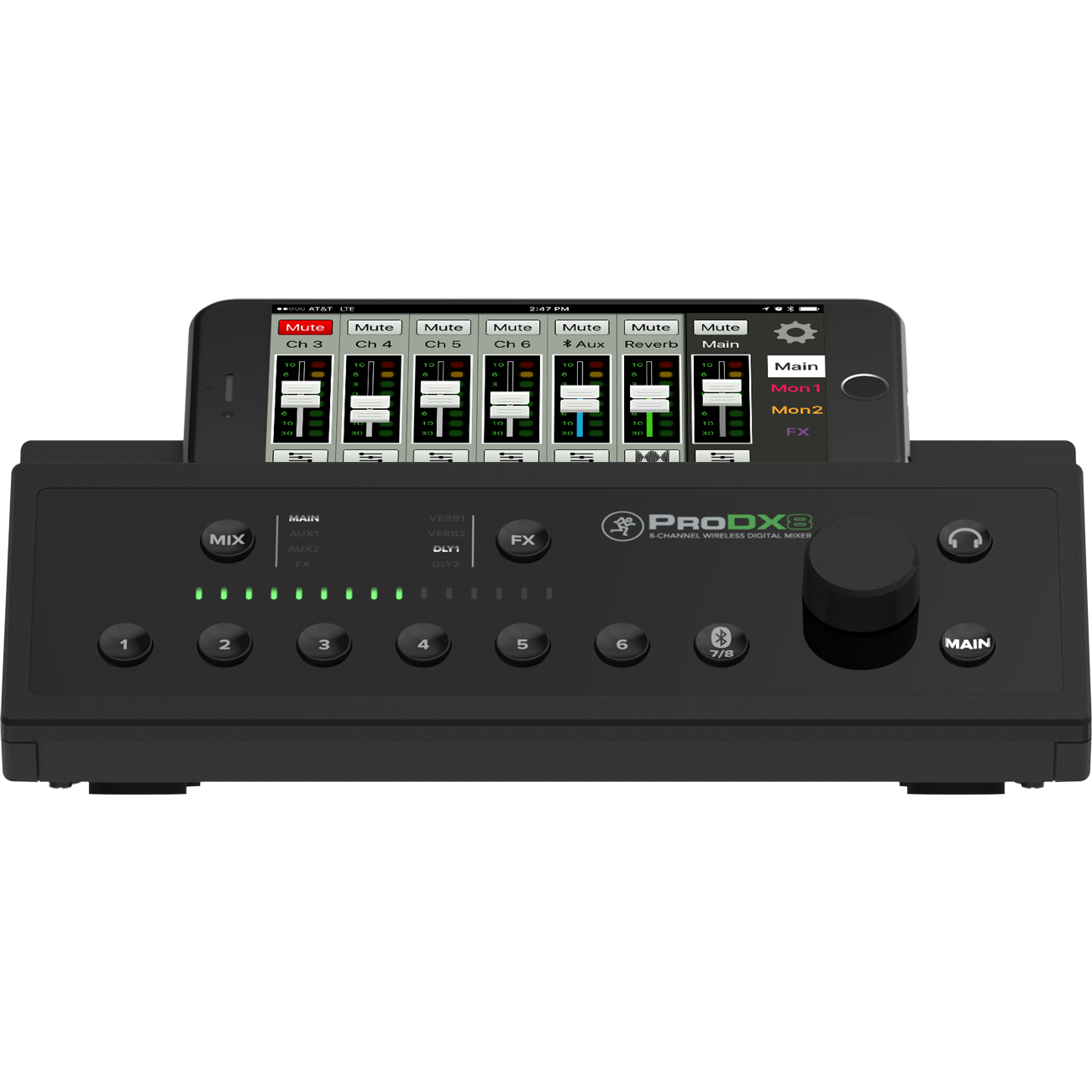

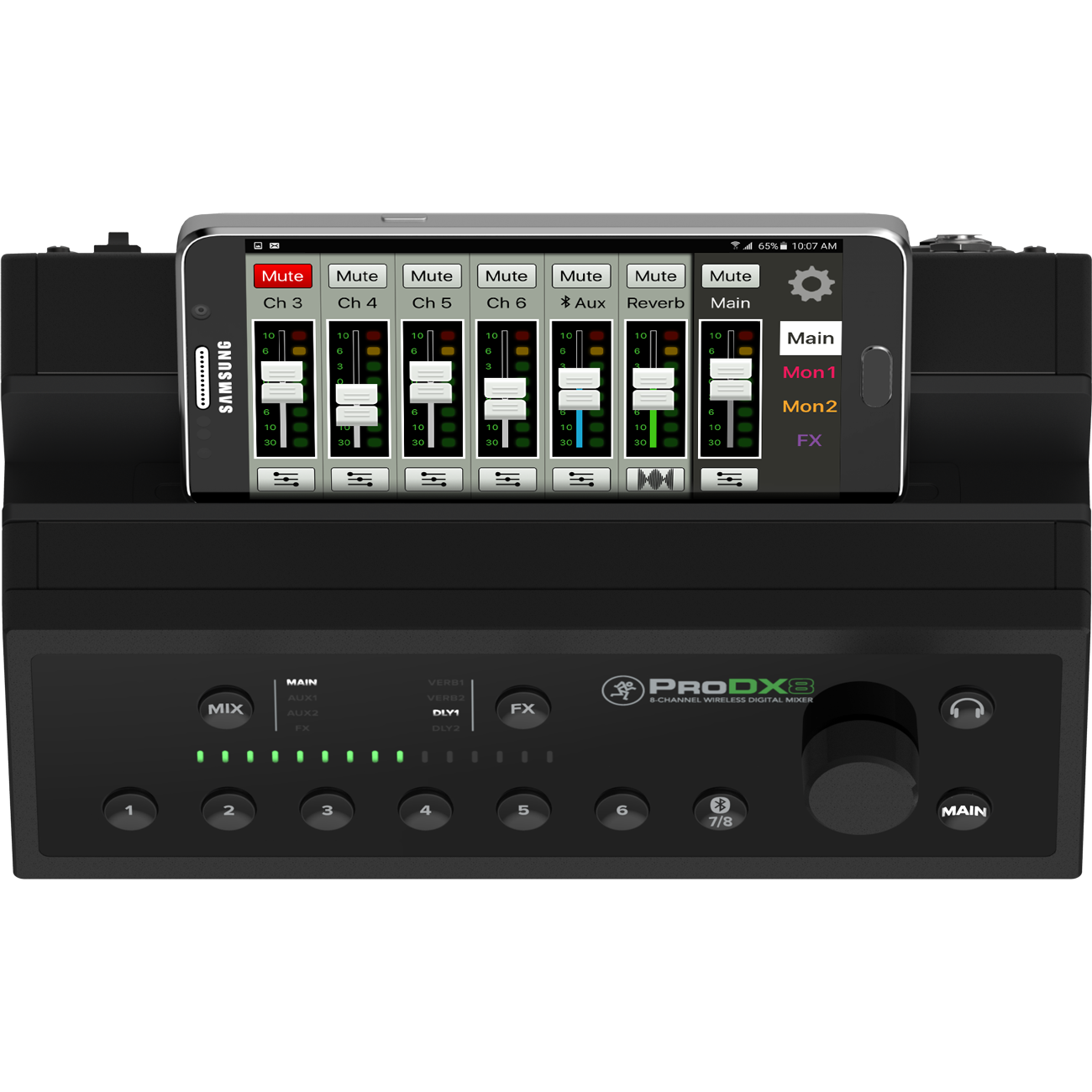

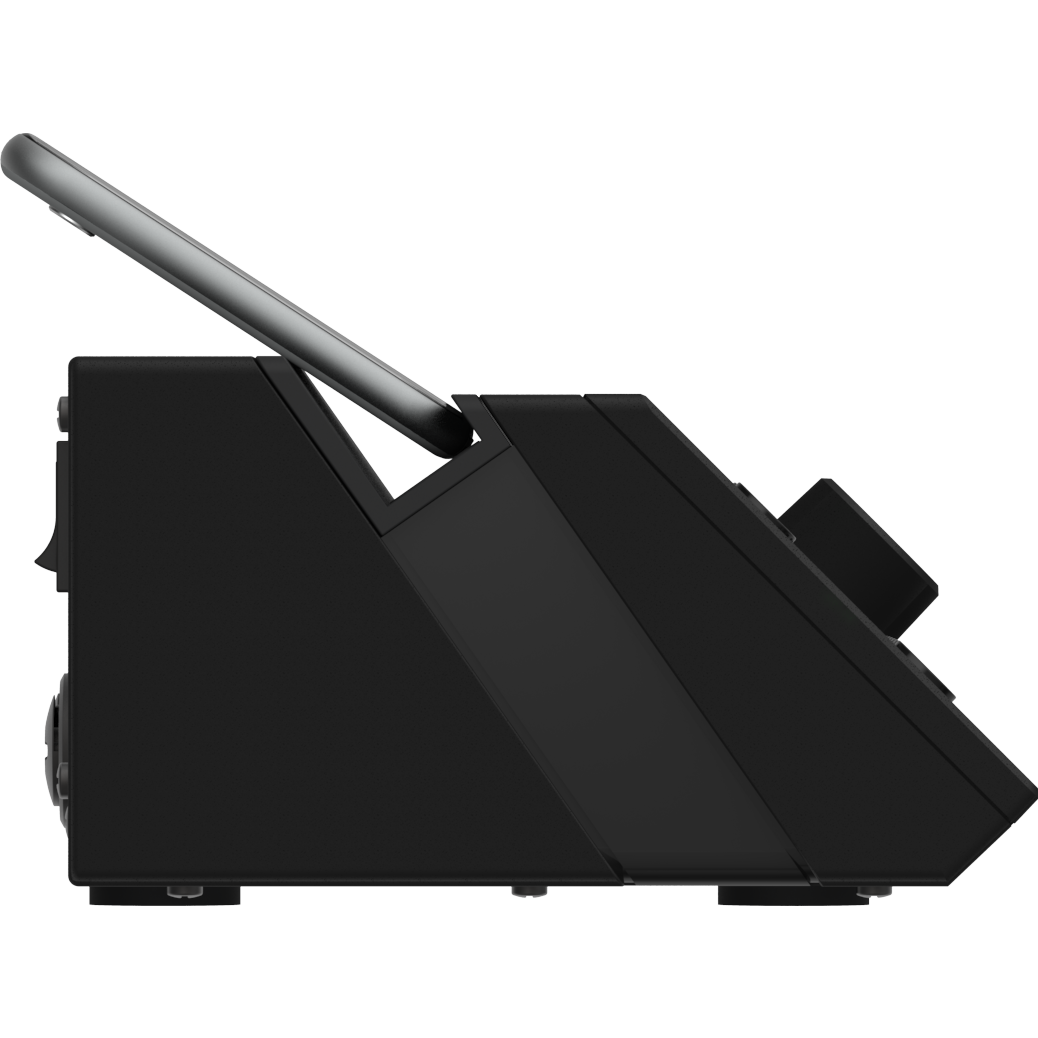

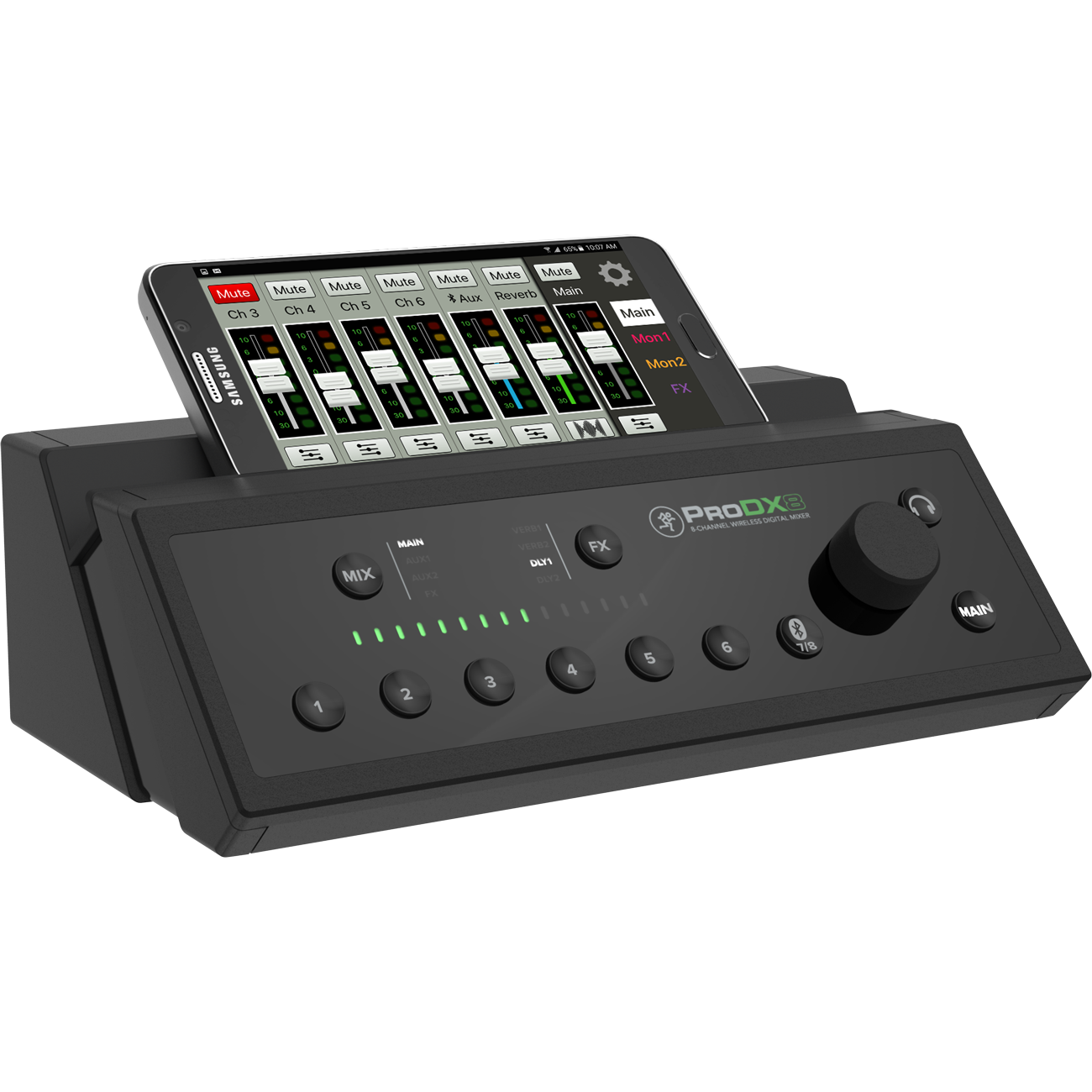

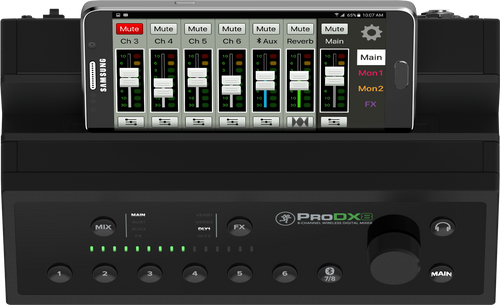

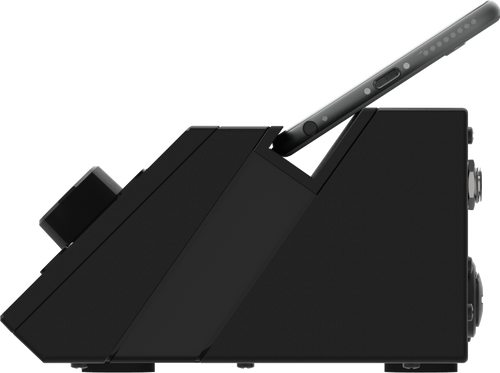

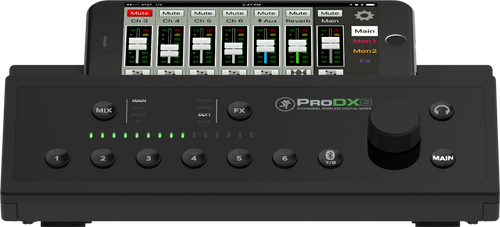

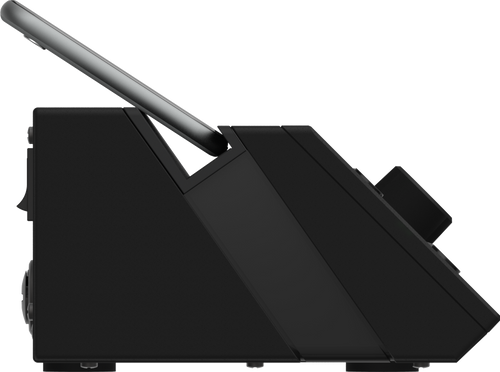

Integrated control bridge holds your phone or tablet for a quick view of your mix

Wireless Streaming and Control via the MixerConnect^™ app on iOS and Android^™

Stream music or backing tracks via Bluetooth®
Control levels, EQ, effects and more from anywhere
Recallable mix presets for quick setup
Place the mixer out of sight without losing any control

Sound Your Best with Powerful Built-in Processing

Dial in your sound with musical 3-band EQ with low-cut per channel
No-hassle channel compression adds punch to any vocal or instrument
Sweeten your mix with 16 great-sounding ReadyFX™ reverbs, delays and choruses
Outputs feature a flexible graphic EQ for fine tuning your mix

All the Right I/O

6 Wide-Z™ inputs for simple connection of mics, guitars, keyboards and more with no gain adjustments needed
Connect your media player via the stereo 1/8” input or stream wirelessly via Bluetooth®
L/R main outs to connect to your PA speakers, power amps or studio monitors
Two aux sends allow you to create multiple monitor or separate zone mixes
Headphone output for critical listening or monitoring on stage

Specification

Sample Rate	48 kHz
A/D/A Bit Depth	24-bit
System Latency	<2 ms
Frequency Response	20 Hz to 20 kHz, ±1 dB
THD+N	<0.005%
Crosstalk	Adjacent Inputs: <–85 dB Outputs: <–85 dB
Dynamic Range	105 dB
FX	16 presets
Memory Presets	3
Bluetooth Protocol	3.0
Bluetooth Function	Audio Streaming and User Interface Control
Dimensions (H x W x D)
Product	3" (76 mm) x 9.1" (230 mm) x 5.5" (140 mm)
Shipping	6.3" (160 mm) x 11" (279 mm) x 7.4" (188 mm)
Weight
Net	3.2 lbs (1.5 kg)
Shipping	4.2 lbs (1.9 kg)
