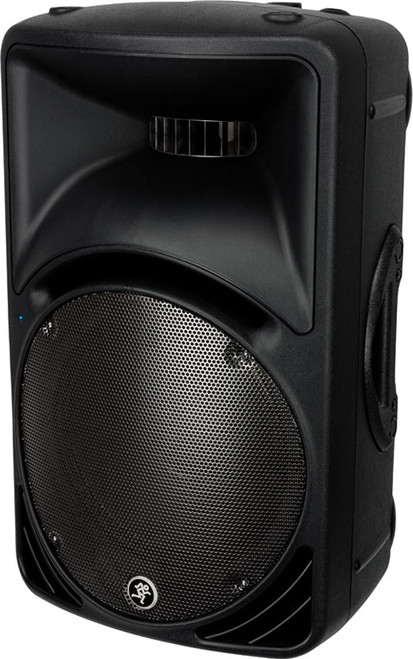

Two Fast Recovery™ amplifiers independently power a 12-inch lightweight woofer and a precision titanium compression driver. Mackie’s sophisticated Active electronics provide phase correction, crossover, time correction, equalization, and protection circuitry.
A heat-treated titanium compression driver with multi-cell aperture directs pristine highs through an exponential high-frequency waveguide, allowing for ultra-wide dispersion. This allows the SRM450 to deliver clear, smooth sound to audience members up to 45° off axis.
The 12-inch lightweight woofer provides a greater magnetic field with far less material, making the woofer extremely lightweight without sacrificing performance. The 3-inch voice coil allows the driver to run cooler, delivering consistent performance even after long hours of use.
Mackie-designed Active electronics provide equalization, crossover, time alignment, and phase correction to enhance sonic performance. Protective circuitry includes over-excursion protection, low-line voltage shut-down, thermal protection, level dependent low-frequency roll-off and independent LF and HF limiters.
The SRM450 features a number of dedicated controls including a mic/line switch, a single microphone and line input level control, and a contour switch for low-level sound reinforcement applications. There is also a timed turnoff feature that turns off the amplifiers if the signal drops below –45 dBu for three minutes.
The center of gravity, handle locations, handle design, position of fly-points and ease of use have been ergonomically designed. There is also an integrated pole mount cup and a weather resistant steel grille. The asymmetrical trapezoidal cabinet has been designed to provide an ideal floor monitoring position.
The cabinet is constructed of high-pressure injected polypropylene. The enclosure features ample amounts of reinforcement ribbing and structural strengthening resulting in a strong, super-rigid design providing ideal acoustical characteristics.
