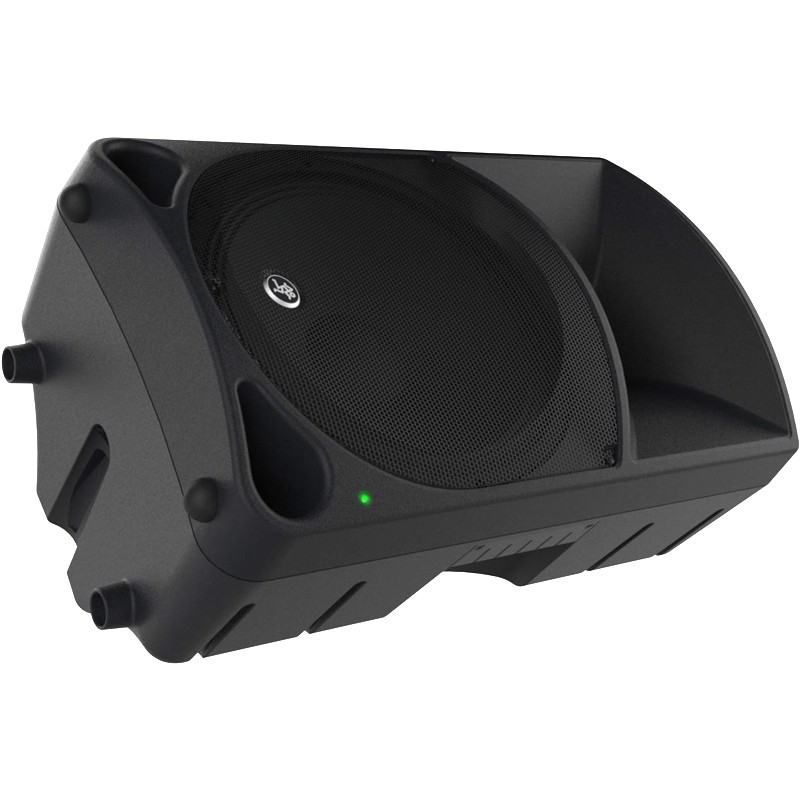

Mackie Thump15 Powered Loudspeaker

Home /
Mackie Thump15 Powered Loudspeaker (Discontinued)

Description

Details

Only Thump Powered Loudspeakers deliver the class-leading, chest-thumping low end you deserve. Each Thump loudspeaker delivers 1000W of power, providing the high-output you need in a package that’s tough, lightweight, and portable.

Designed by the world’s leader in portable live sound, Thump loudspeakers offer a 3-band EQ for dialing in the ideal sound. And with a rugged enclosure and robust system protection, you’re more than ready for the next gig.

Delivering real-world power levels, application flexibility and class-leading bass response, you can be confident that Thump loudspeakers offers the best performance for your money.

Features

Features

1000 W total system power
Gig-ready, high-output design
Ultra-efficient Class-D amplification
Class-leading, chest-thumping low end
15" High-output woofer
1.4" Titanium dome compression driver
Dynamic bass response delivers amazing lows at all volumes
Total system optimization
Precision 2-way crossover
Transducer time alignment
System protection / limiting
Application flexible
3-band EQ with sweepable mid to dial in the perfect sound
Mic/line input allows direct connection of microphone
Flexible mounting options including tripod and pole-mounting
Angled design perfect for use as a stage monitor
Lightweight and portable
Rugged polypropylene construction designed for heavy use

Specification

Acoustic Performance
Frequency Response (–3 dB)	39 Hz – 20 kHz
Frequency Response (–10 dB)	32 Hz – 23 kHz
Horizontal Coverage Angle	90 ̊
Vertical Coverage Angle	60 ̊
Maximum SPL Peak	126 dB SPL @ 1m
High-Frequency Section
Compression Driver	1.4" (36 mm)
Diaphragm Material	Titanium
Magnet Material	Ferrite
Low-Frequency Section
Woofer Diameter	15" (381 mm)
Cone Material	Paper
Magnet Material	Ferrite
Power Amplifiers
System Power Amplification
Rated Power	500W rms
Low Frequency Power Amplifier
Rated Power	400W rms
Design	Class D
High Frequency Power Amplifier
Rated Power	100W rms
Design	Class AB

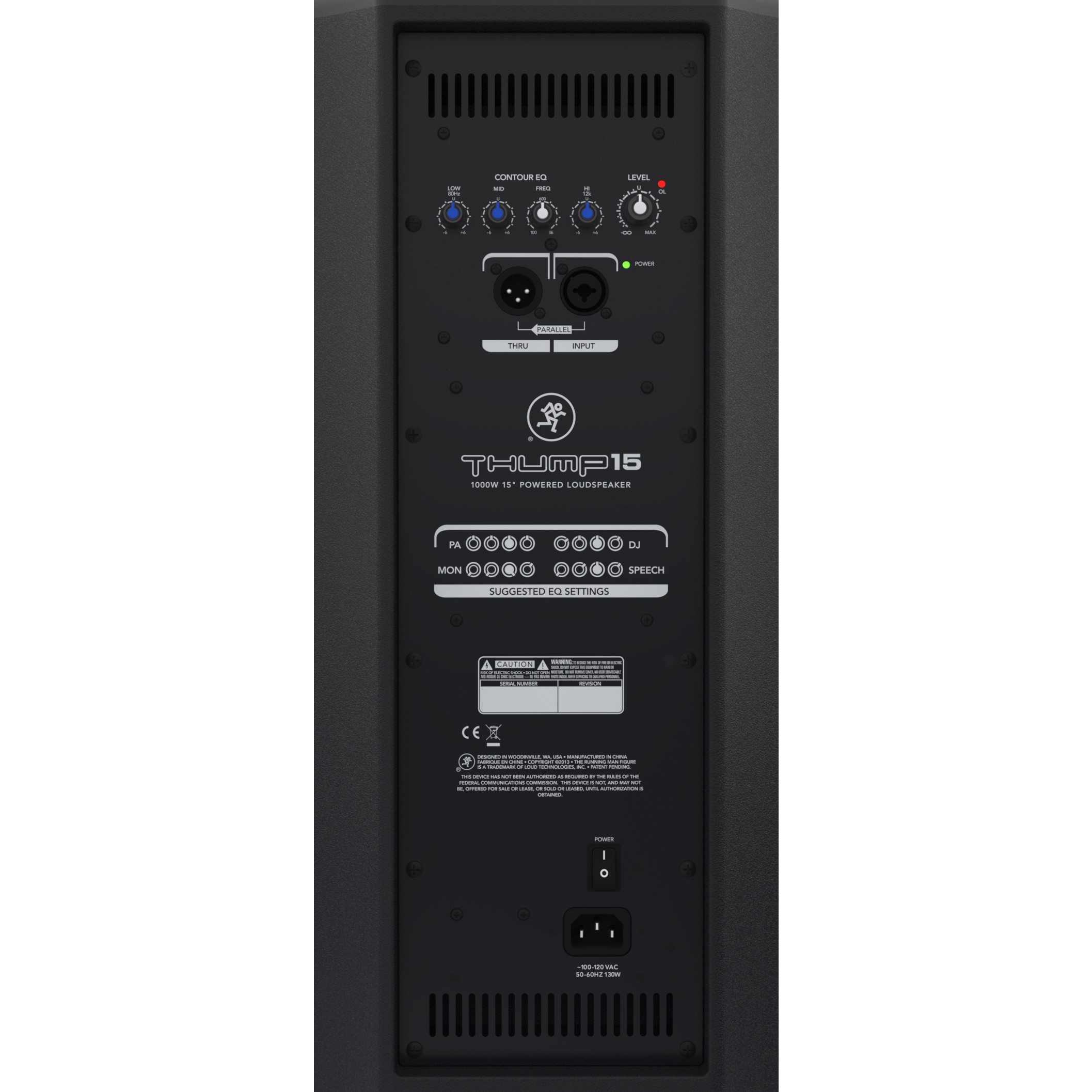

Input / Output
Input Type	Female XLR / 1/4" Balanced
Input Impedance	20 kΩ balanced bridging; 10 kΩ unbalanced
Thru	Male XLR balanced
Level Control	Rotating Knob; 0 dB at center
Sensitivity	+4 dBu for full output (Level Control @ Center); –36 dBu for full output (Level Control @ Max)
Electronic Crossover
Crossover Type	24 dB/octave
Crossover Frequency	3 kHz
Equalization
Low Frequency EQ	±6 dB @ 80 Hz, shelving
Mid Frequency EQ	±6 dB sweepable from 100 Hz to 8 kHz
High Frequency EQ	±6 dB @ 12 kHz, shelving
Power
US detachable line cord	100 – 120 VAC, 50 – 60 Hz, 130 W
EU detachable line cord	220 – 240 VAC, 50 – 60 Hz, 130 W
AC Connector	3-pin IEC 250 VAC, 10 A male
Power Supply Type	Switchmode
Operating Temperature	0 - 40 ̊C
Extended Ambient Temperature	32 - 104 ̊F
Safety Features
Input Protection	Peak and RMS limiting, power supply and amplifier thermal protection
Display LEDs	Front / rear power ON, Rear OL (Overload)
Construction Features
Basic Design	Trapezoidal
Cabinet	Polypropylene
Finish	Textured
Handles	One on each side, one on top
Grille	Perforated metal with weather-resistant coating
Monitor Angle	45 ̊
Mounting Methods	Pole-mountable via the built-in socket on the bottom of the cabinet
Dimensions (H x W x D)
Product	27.6" (702 mm) x 16.8" (427 mm) x 15.5" (394 mm)
Shipping	29" (737 mm) x 17.5" (445 mm) x 17" (432 mm)
Weight
Product	33.2 lbs (15.1 kg)
Shipping	36 lbs (16.3 kg)
