Manufacturing Plant Multicast Notification, Background Music and Paging System with VOIP PoE Speakers and LCD Displays

AtlasIED IP100-CS GLOBALCOM IP Announcement Control System:

• Manages dynamic requests for live, delayed, and prerecorded messages (simple and assembled)
• Manages record and playback of ad hoc messages
• Manages text-to-speech messages
• Manages mute actions (by zone or zone group) and two-way full-duplex intercom connections
• Allows up to 65,565 messages priority levels with NeverMISS™ capability
• Manages thousands of audio and video output zones over local or wide area networks utilizing a variety of industry-standard IP based protocols
• LDAP (Lightweight Directory Access Protocol) and Active Directory supported
• Initiate announcements by contact closure, paging stations, open standard IP network commands, and the built-in VoIP telephone interface
• Includes a built-in comprehensive message scheduling system that allows the creation of schedule profiles
• Built-in interface to VoIP telephone systems via SIP and PBX trunking as well as support for standard 3rd party FXO gateway devices
• Supports industry-standard G.711, G.722, and RTP protocols
• Stores up to 250 hours of pre-recorded .wav message files
• Stores/manages pre-recorded messages in any language
• Text to Speech messages may be generated in place of prerecorded messages utilizing the default TTS engine or optional multi-lingual TTS engines

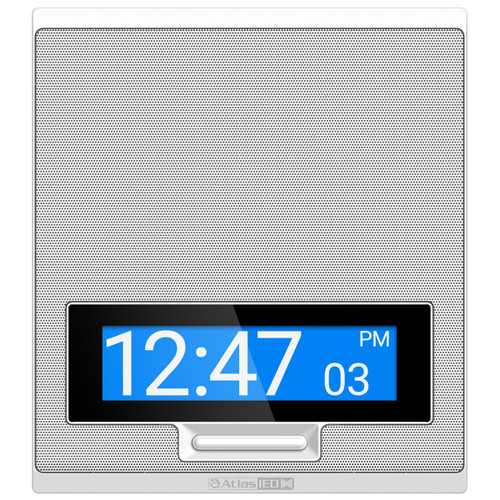

AtlasIED IP-SDMF PoE+ Indoor Wall Mount IP Loudspeakers with LCD Display and LED Flashers:

• Dynamic or Static IP Address
• IEEE802.3 10/100Base-T Ethernet
• IEEE 802.1q Tagging
• IEEE 802.11AT Compliant
• VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
• Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
• Auto Registration: SLP for InformaCast or DHCP Option 72 for SA-Announce or GCK
• Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
• Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
• Aux Audio Line-In Unbalanced (2.8Vpp 10K)
• Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
• 2 General Purpose Inputs
• 1 General Purpose Output (2A @ 30 VDC)
• Phone/Night Loud Ringer
• External Power Supply Option



AtlasIED IP-DD POE+ IP Compliant Dual Sided LCD Endpoint with Speakers:

• Network controlled, high visibility LCD display
• Auto registration and auto provisioning
• Multicast enabled network clock control
• Cisco SRST compliant
• Power using IEEE802.3af compliant PoE+ switch or local 12VDC-18VDC PSU
• RJ-45 female input on PCB

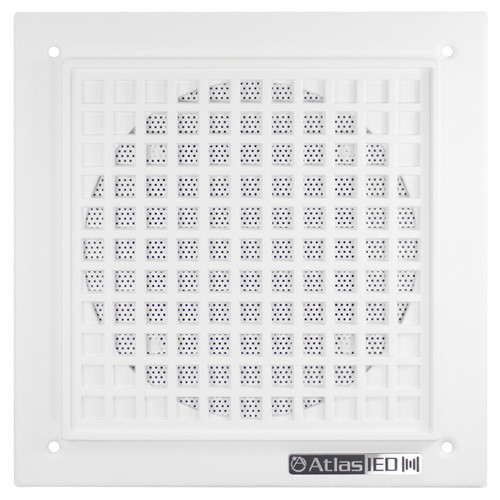

AtlasIED IP-HVP POE+ Vandal and Weather Resistant Wall Mount IP Speakers:

• Dynamic or static IP address
• IEEE802.3 10/100Base-T ethernet
• IEEE 802.1q tagging
• IEEE 802.11AT compliant
• VoIP standard audio: G.711 u-law/a-law (64 kbit/s) or G.722 wideband audio (64 kbit/s)
• Auto provisioning: DHCP option 66, 150, or TFTP server or DHCP option 72 for HTTP server
• Auto registration: SLP for InformaCast or DHCP option 72 for revolution or GCK
• Static configuration: HTTP GUI for static configuration or Cisco SRST
• Integrated amplifier 15W total power: primary speaker output 8 ohm
• Aux audio line-in unbalanced (2.8Vpp 10K)
• Aux audio line-out unbalanced (2.8Vpp 10K)
• 2 general purpose inputs
• 1 General purpose output (2A @ 30 VDC)
• Phone/night loud ringer
• External power supply option
