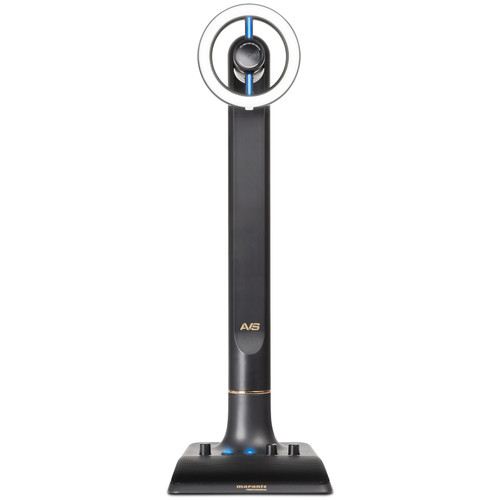

The AVS is an all-in-one broadcast system that offers the live streamer professional components in a compact, free-standing array.
The AVS features a full HD webcam compatible with H.264 video compression, a high-quality 48kHz/16-bit USB condenser boundary microphone conveniently integrated into the base of the unit, and an LED light ring, daylight-balanced, with both cool and warm filter accessories for the look of a studio production. The Marantz AVS is a unique, all-in-one broadcast tool that is designed for live-streaming, video calling and gaming applications. It is compact and simple, perfect on a desktop, and the lightweight design makes it portable enough to take on location.
To make the system truly self-contained and capable of handling any streaming/podcast task without the need for additional equipment, the AVS has a high-speed USB-C computer output for low latency and an internal USB hub. There is even an onboard headphone amplifier so audio monitoring is simple. Everything the demanding streaming/broadcasting enthusiast needs is right here, in one convenient, high-performance package.
| Camera | Fixed-focus CMOS Sensor Diagonal field of view: 70° Optical resolution: 2MP native Full HD 1080p video (up to 1920 x 1080 pixels) recording Frame rate: 30 fps/1080p, 30 fps/720p H.264 video compression ON/OFF switch Automatic low-light and white balance correction Compatible with Windows® XP, 7, 8, 10, Mac OS X, LINUX, Android Operates in USB Video Device Class (UVC) mode USB 2.0 – Class 2 Compliant Driver |
|---|---|
| Boundary Microphone | Element: Back electret condenser Polar pattern: Half-cardioid (cardioid in hemisphere above mounting surface) Open Circuit Sensitivity: -44dB ± 3dB (0db = 1V/Pa @ 1KHZ) Output impedance: 2.2 kΩ ± 30% (@ 1kHz) Sample rate: 32 kHz / 44.1 kHz / 48 kHz @16-bit Frequency response: 150 Hz - 10 kHz Signal-to-Noise Ratio: >60 dB (1kHz @ 1% THD) Max SPL: 100 dB ON/OFF switch |
| Headphone Amplifier | Frequency Response: 20 Hz – 20 kHz Output power: 130mW Level control 3.5 mm stereo output Mix control to mix microphone audio with USB audio input |
| LED Light Ring | 4" Dimmable LED light ring (30) Wide-angle white LEDs @ 5600K (3) Accessory filters: Diffused daylight, Cool, Warm |
| USB | USB 1 & 2: (2) Type A USB 3.0, 0.75A total available current between two ports for powering devices To PC: (1) USB-C connector/USB 3.0 connection USB Audio In: Class 2 compliant speaker device for audio to be monitored in headphone output, set by user in the computer |
| Microphone Auxiliary Output | Fixed line-level output on 3. 5mm TRS jack |
| Power | AC-DC Power Supply 100 ~ 240 VAC compatible 12 VDC @ 1 Amp output |
| Dimensions (H x W x D) | 19.1" (485 mm) x 7.39" (188 mm) x 6.26" (159 mm) |
| Weight | 2.29 lbs (1.04 kg) |
