Marshall CV346 Compact Full-HD 3G/HDSDI and HDMI Camera (Discontinued)

Marshall CV346 Compact Full HD 3G/HDSDI and HDMI Camera
with 1920x1080p Video at 60/59/50 fps

The Marshall CV346 Full-HD Miniature Camera offers performance, flexibility, and value in a compact form factor. Built around a next generation 2.5-Megapixel, 1/2.8-inch sensor, the CV346 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.

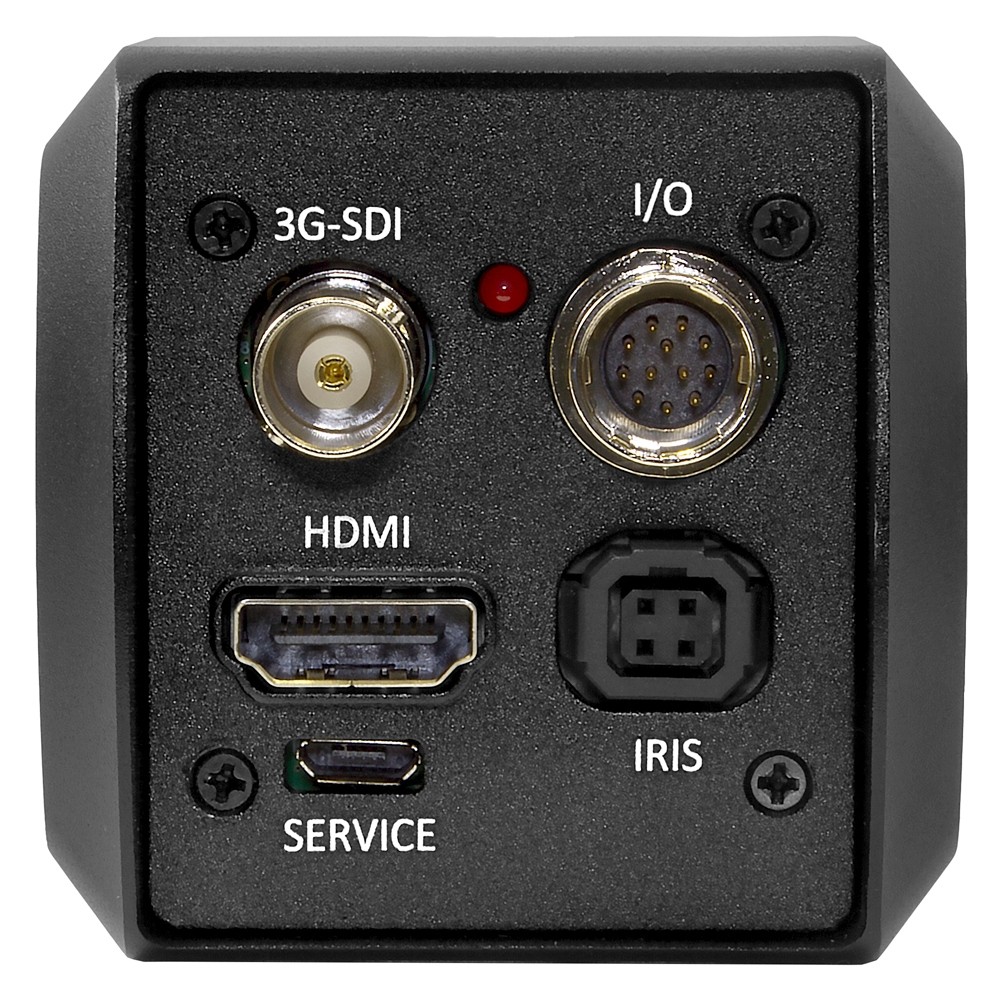

The CV346 utilizes a full-sized HDMI and BNC (3G/HDSDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on HDMI and 3G/HDSDI outputs). The CV346's CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.

The CV346 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more

CV346 applications:

The CV346 is suitable for use in HDMI Pro AV workflows or HDSDI environments including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

• HDMI and 3G/HDSDI output
• 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
• Interchangeable CS/C lens mount (sold separately)
• Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
• Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• Remote adjust through RS485 (Visca) or OSD menu joystick
• Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
• Includes 12V power supply in the box

Data Sheet

Manual

• Camera with CS/C Mount (Lens Sold Separately)

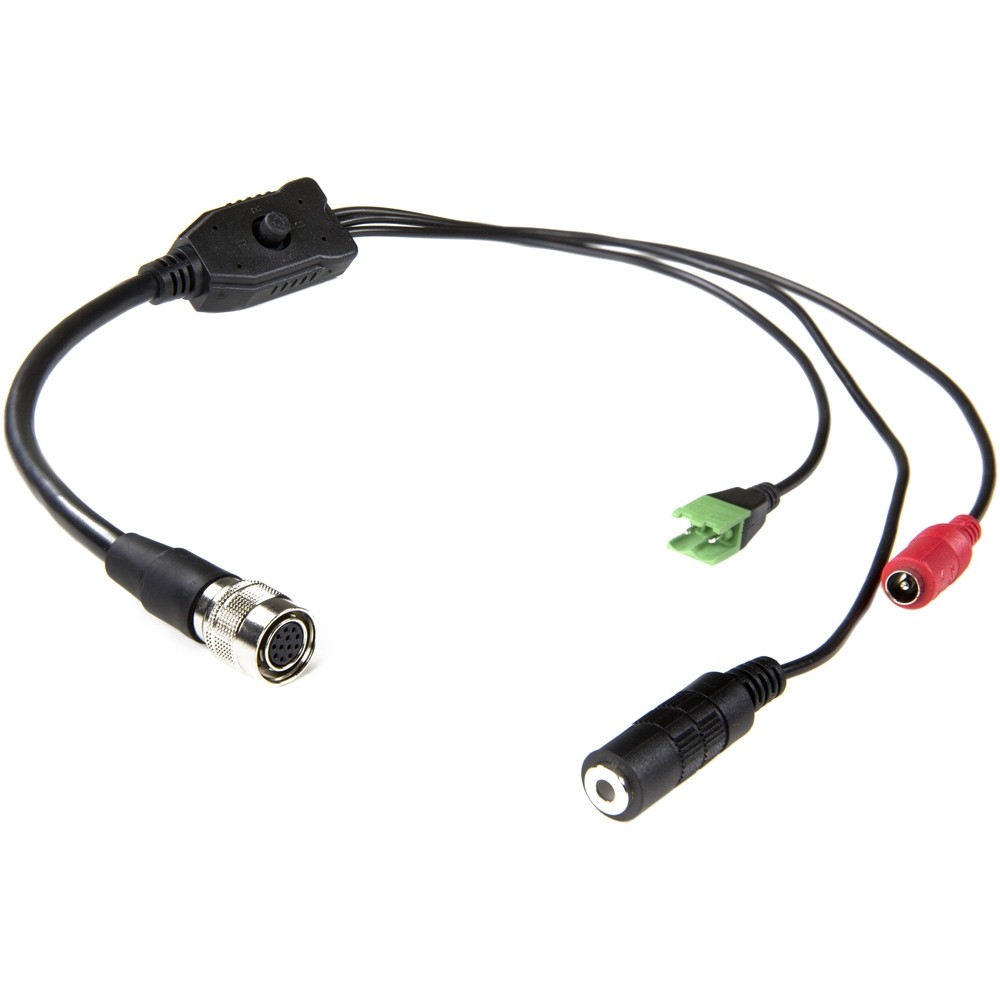

• Camera Breakout Cable (Power/RS485/Audio)
• C-Mount Lens Adapter (only used when using C-Mount lens)
• 12V Power Supply
