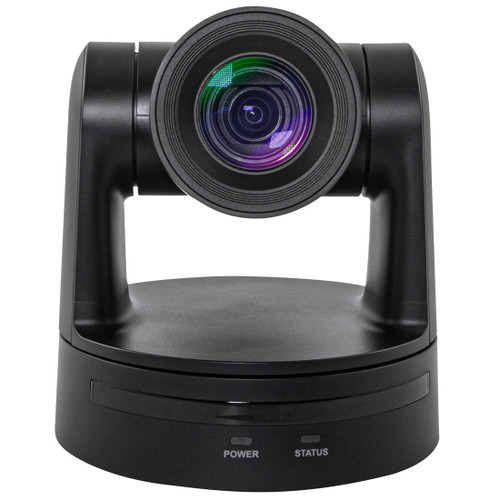

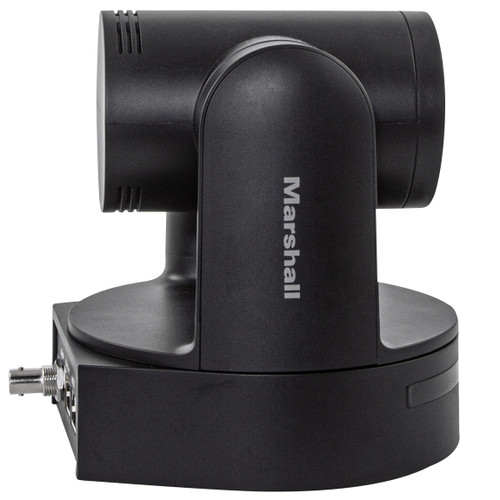

Marshall CV605 5x HD60 IP 3GSDI PTZ Camera
The CV605 5X optical zoom 3GSDI camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple available outputs include 3GSDI and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional A/V applications. CV605-BK/WH can be setup through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.
Ultra-Wide 85° with 5x Optical Zoom Range
The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.
3GSDI + IP (Ethernet) Workflow Flexibility
CV605 offers low latency 3GSDI (BNC) output as well as IP interface with multiple protocol supported. An IP interface provides easy one-cable setup with ethernet (Cat) cable handling video, audio, control and PoE (power).
Low-Light Sensitivity
The CV605 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.
One Cable to Camera
One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and 3GSDI simultaneous outputs with audio embedding.
| Optical Zoom Ratio | 5X Optical Zoom (3～15.5 mm) |
|---|---|
| Digital Zoom | 10X additional |
| Viewing Angle | 85° (wide open) through 16° (telephoto) |
| Focus | Auto/Manual/One Push |
| Dimensions (H x W x Dia) | 6.06" (154 mm) x 5.8" (147 mm) x 5.72" (145.4 mm) |
| Weight | 2.8 lbs (1.27 kg) |
