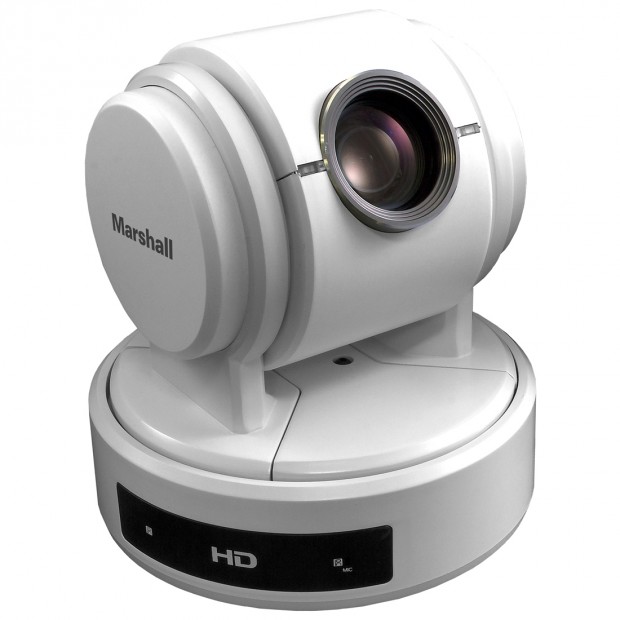

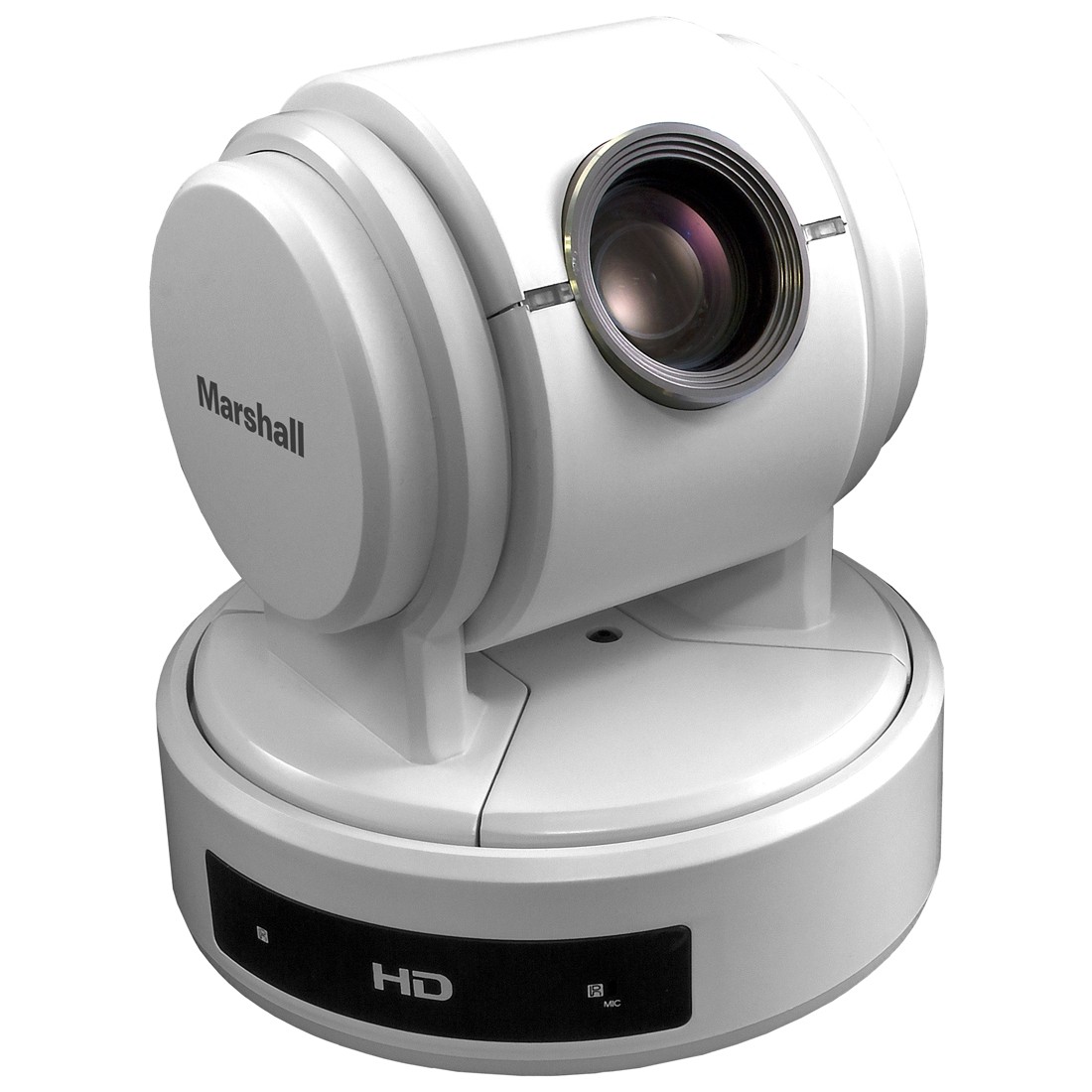

Marshall CV610-U3W-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI - White (Discontinued)

Marshall CV610-U3W-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI

Marshall's second-generation CV610-U3-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output.

The CV610-U3-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs.

The CV610-U3-V2 is ideal for delivering next-level performance for any UCC, teleconference, Pro A/V, or livestreaming applications.

• 2-Megapixel HD Sensor
• 10x Optical Zoom: 62.5° ~ 6.4°Horizontal AOV (12x Digital Zoom)
• Compact overall footprint (approx.): 145 mm diameter, 112 mm head diameter, 155 mm height
• USB 3.0 / 2.0 (uncompressed) output with simultaneous HDMI output
• Full-HD resolutions: 1920 x 1080p, 1280 x 720p
• Frame rates: 60, 50, 30, 25 fps
• HDMI output resolution can be set independently of USB output resolutions
• Onboard audio mic and 3.5 mm TRS audio jack (optional input)
• Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
• Up to 128 presets with quiet, smooth transitions
• Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0 / 2.0
• Breakout Cable, USB 3.0 / 2.0 cable, and 12V Power Cord included with camera

Spec Sheet

Manual

Installation Guide

• (1) PTZ Camera
• (1) Power Adapter and Power Cord

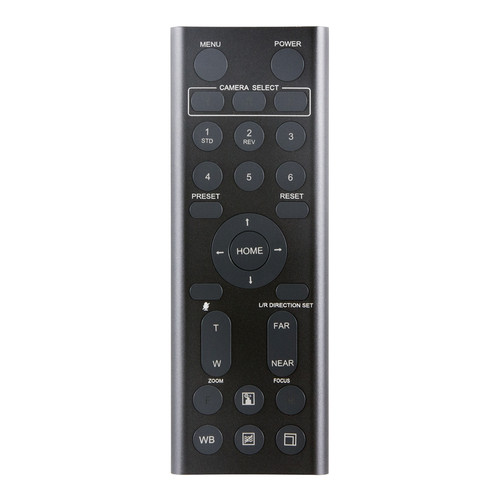

• (1) IR Remote Controller (3V CR2032 Coin Lithium Battery Required)

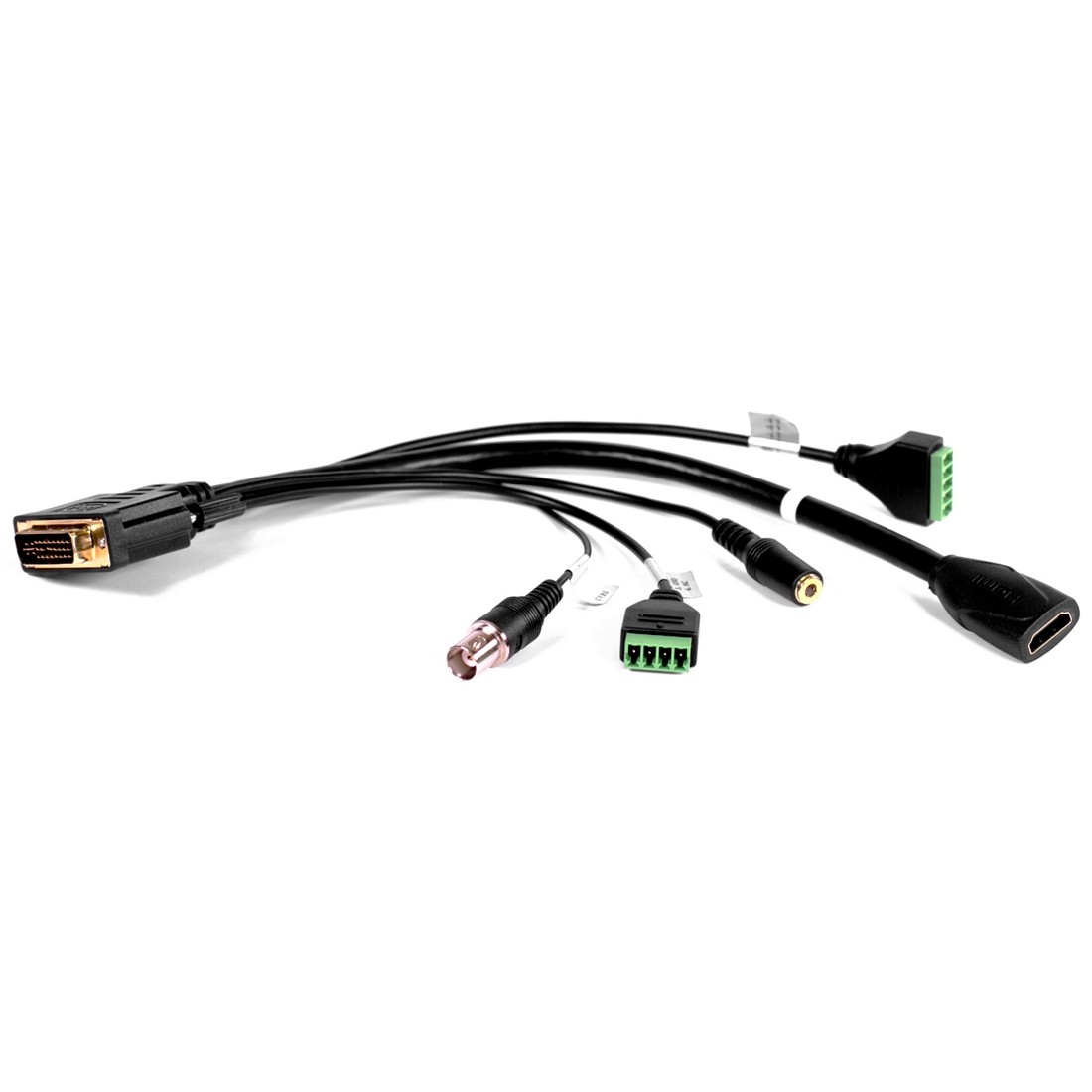

• (1) Camera Breakout Cable
• (1) USB 3.0 Cable (1.5m)
