Marshall V-LCD70-AFHD
Marshall V-LCD70-AFHD 7" High Resolution 1024 x 600 Lightweight Camera-Top Monitor with Multiple Inputs (Discontinued)
Marshall V-LCD70-AFHD 7" High Resolution 1024 x 600 Lightweight Camera-Top Monitor with Multiple Inputs (Discontinued)
By Marshall Electronics

Marshall V-LCD70-AFHD 7" High Resolution 1024 x 600 Lightweight Camera-Top Monitor with Multiple Inputs (Discontinued)

Write a Review
Part #:
V-LCD70-AFHD
Model #:
V-LCD70-AFHD
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Marshall V-LCD70-AFHD includes a wide range of professional features including multiple inputs, Picture-in-Picture, Image Flip, Screen Markers, Peaking Filter, False Color and Zebra filters. The screen is a bright 500 cd/m² ith a 700:1 contrast ratio.

Description

Marshall V-LCD70-AFHD 7" High Resolution 1024 x 600 Lightweight Camera Top Monitor with Multiple Inputs

The V-LCD70-AFHD includes a wide range of professional features including multiple inputs, Picture-in-Picture, Image Flip, Screen Markers, Peaking Filter, False Color and Zebra filters. The screen is a bright 500 cd/m² ith a 700:1 contrast ratio. The menu is fully accessible from the front of the monitor, where adjustments can be made to color, exposure, picture orientation, or the aspect ratio of the image can be adjusted from full screen to 4:3, 14:9 and 16:9.

The V-LCD70-AFHD is designed for the videographer who moves between HD, 3G, and analog formats and needs a field monitor that can adapt to every situation.

Special Features Include:

  • Picture-in-Picture
  • Image flip
  • False color level indication
  • Peaking filter focus assist
  • Zebra filters
  • Screen Markers

Features

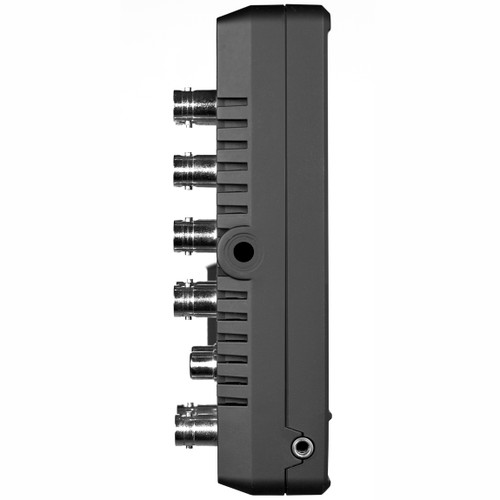

  • Multiple inputs including HDMI, 3GSDI, Component and Composite
  • Three color tally (Red, Yellow, Green)
  • 1/4-inch mounting on 4 sides plus VESA mount
  • Light weight for comfortable camera top use
  • Audio level display from HDMI or SDI inputs
  • On-screen framing marks
  • 4-pin XLR for ENG power supplies
  • Power adapter included

Specifications
Dimensions (H x W x D) 5.57" (141.48 mm) x 7.5" (190.5 mm) x 1.25" (31.75 mm)
Weight 1 lbs (0.45 kg)
