Medical Facility Sound Masking System with 20 Plenum Sound Masking Speakers, and 2-Zone Amplifier for up to 5000SF

Name: Medical Facility Sound Masking System with 20 Plenum Sound Masking Speakers, and 2-Zone Amplifier for up to 5000SF
Brand: AtlasIED
SKU: SMSS-20M1000ASPMG2240
Price: 3578.89 USD
Availability: InStock

Write a Review

Part #:

SMSS-20M1000ASPMG2240

Model #:

SMSS-20M1000ASPMG2240

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Sound masking has been shown to have a positive impact on patients. This sound masking system for healthcare applications features twenty above ceiling Atlas Sound sound masking speakers, a 2-zone sound masking amplifier and two volume controls, this highly versatile system is designed to cover approximately 5,000SF.

Description

Inside the Design

Safeguard private information and sensitive conversations in medical facilities by making speech less intelligible with this commercial sound masking speaker system. This speech privacy system also helps promote patient relaxation by pleasantly raising the ambient sound level in your environment by emitting just the right amount of acoustically optimized masking noise which can help to reduce noise distractions and eavesdropping. This sound masking system is perfect for healthcare facilities and medical offices to protect sensitive information and provide a more pleasant atmosphere.

Sound System Features:

Approximately 5,000 sq ft of coverage
70V commercial speaker system
Selectable pink or white noise sources
Designed to reproduce the required spectrum of masking signal into plenum space
Quick and easy installation
Includes chains for suspending speakers above droptile ceilings

About the System Components

This Pro Acoustics designed system provides sound masking for healthcare applications and includes 20 Atlas Sound M1000 sound masking speakers with 72" chains to hang in above ceiling plenum spaces, an Atlas Sound ASP-MG2240 two-zone compact sound masking controller amplifier with onboard DSP, two Pure Resonance Audio VC50W 50W decora 70V commercial volume controls and 1,500’ of plenum speaker wire.

Not sure if this is the right Sound Masking solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Atlas Sound M1000 8" Sound Masking Speakers:

Pre-assembled unit includes 8" dia. loudspeaker, transformer, enclosure, baffle and mounting hardware
Labor-saving hardware package – complete with new snap hanger assembly, allows quick and easy installation
Innovative input panel includes combination knock-out and strain relief connector to accommodate flexible or rigid conduit
Design enables upward, downward, or horizontal orientation
734 in³ enclosure for extended low-frequency response
Available in black or white epoxy finishes to blend with a variety of open ceiling plans
Suitable for use above suspended ceiling systems or open ceiling spaces approved for use in air handling (plenum ceilings)
Safety listed to UL 1480 & UL 2043

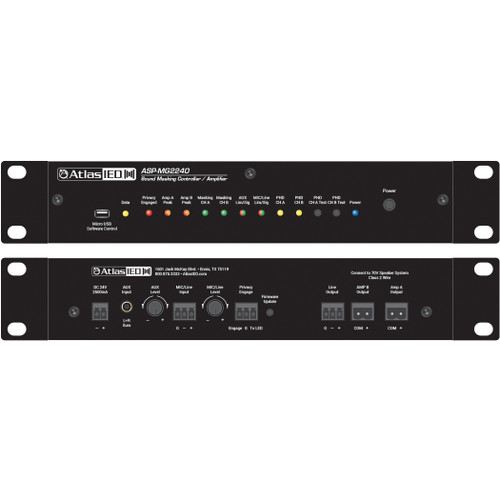

Atlas Sound ASP-MG2240 Two-Zone Compact Sound Masking Controller Amplifier with Onboard DSP:

Two-Channels of Internal Amplification (20-Watts per Channel @ 70.7V)
Two Separate Analog Masking Generators
Analog White & Pink Noise Generators
Auxiliary Input for BGM with EQ & Limiter
Mic/Line Input for Paging with EQ & Limiter
Speech Enhanced Privacy Mode (Adjustable +/- 12dB)
Assignable Balanced Line Output
Internal DSP Parameters EQ, HI & Lo Pass Filters, Limiter with Intuitive Software Control
Push Here Diagnostic (PHD) Automatic Diagnostic System Test
Single Zone Sound Masking Coverage up to 7000 sq ft

Pure Resonance Audio VC50W 50W Decora 70V Commercial Volume Control - White:

Stylish appearance - Decora style design includes white plastic plate with matching knob
Flexible - The VC50W is perfect for use with a 25V, 70V or 100V speakers and distributed audio systems
High-quality adjustment - Volume control attenuator provides excellent frequency response, low insertion loss, and reliable performance
Smooth volume adjustment - Easily adjust to your desired volume level. No stop between maximum and off position to prevent switch damage
Versatile - Provides high-quality audio level adjustment of single or multiple speaker lines
Detachable euroblock connector - Removable phoenix-style terminal block with in-out throughputs accommodates up to 14G speaker wire

System Includes

(20) Atlas Sound M1000 Sound Masking Speakers

(20) Atlas Sound MCHAIN72 72" Hanging Chains for M1000 Speakers

(1) Atlas Sound ASP-MG2240 Two-Zone Compact Sound Masking Controller Amplifier with Onboard DSP
(2) Pure Resonance Audio VC50W 50W Decora 70V Commercial Volume Controls - White

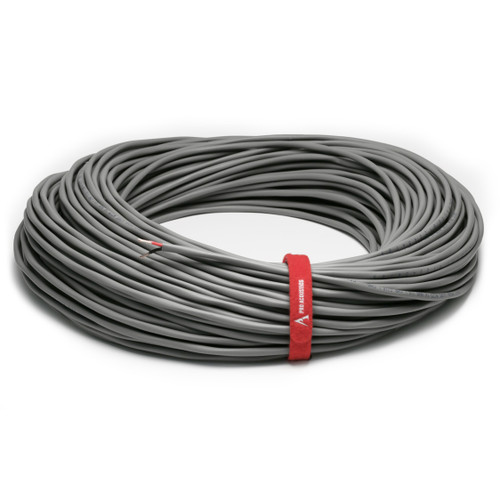

(1500') West Penn 25224 18/2 Plenum Speaker Wire
