Medium Conference Room Sound System
This Medium Conference Room Sound System with 16 Yamaha VXC6 In-Ceiling Speakers, 2 IF2108 Surface Mount Speakers, XMV8140 Power Amplifier, MTX3 Matrix Mixer, CD-C600RK CD Player, Audio-Technica Pro 49QL Microphone and Yamaha DCP4V4S Digital Control Panel ensures that presenters and speakers are easily heard. This is the ideal room set up for medium to large meeting areas such as town halls, local business centers and courtrooms.
To ensure that attendees seated at the back of the room can hear presentations clearly, multiple rows of speakers are provided, with independent volume control for each row. Delay processing is also provided to compensate for the natural delay that can degrade clarity in larger rooms like this, so that people in the back hear sound that is as clear and intelligible as it is at the front of the room.

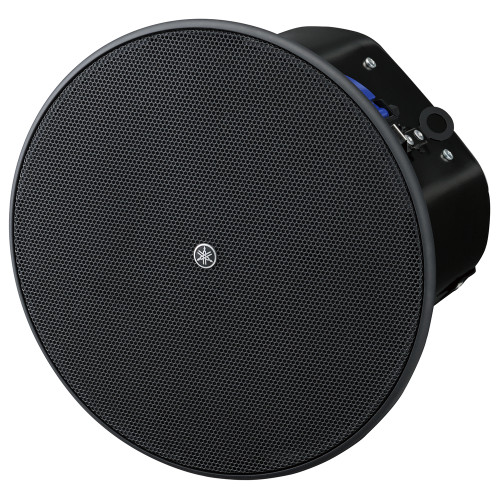

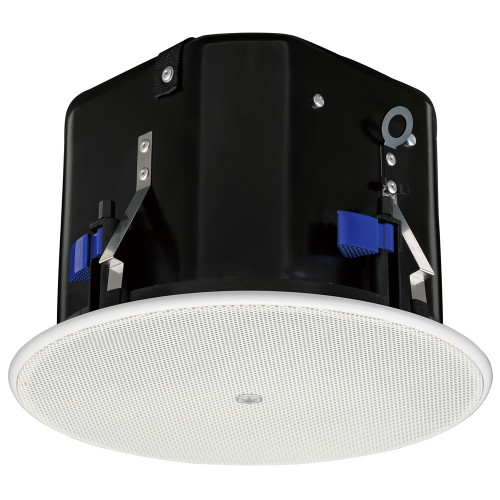

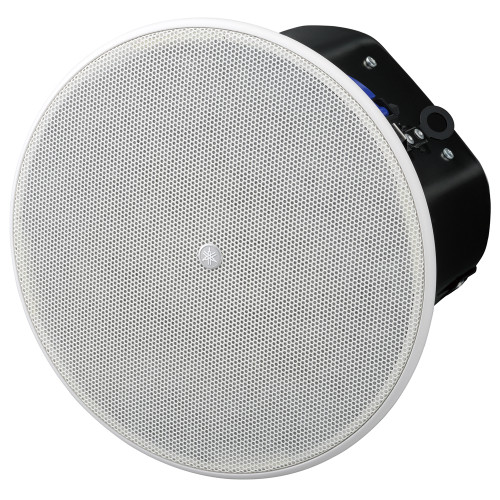

Yamaha VXC6 Full-Range 6.5" In-Ceiling Loudspeakers
The Yamaha VXC6 is a 6.5" in-ceiling 2-way coaxial acoustic suspension speaker. The VXC speakers deliver Yamaha’s famous sound quality in a round design to accommodate a growing list of applications in the installation market. They feature selectable 8Ω/High-impedance with built-in transformers. Easy-carry handles, anti-drop tabs and double threaded screws ensure both safety and ease of installation. All Yamaha VXC ceiling speaker models come in either black or white, with the additional option of being paintable to match the interior of the application.

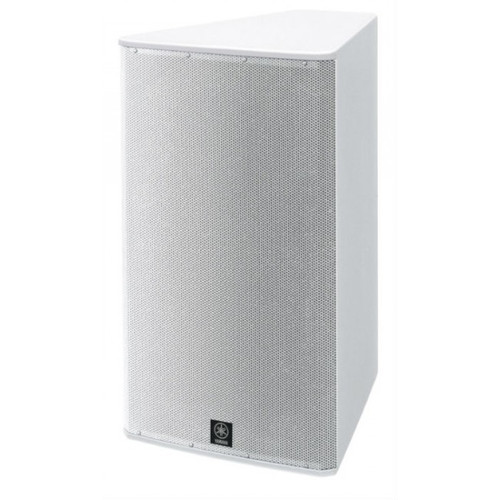

Yamaha IF2108 8" Loudspeakers with 90° x 60° Rotatable Horn
The IF2208 and IF2108 are highly versatile, highly compact 2-way full-range speaker systems. The IF2208 features dual 8-inch woofers. The IF2108 features a single 8-inch woofer. The IF2108 is ideal for underbalcony use, pole-stand mounting or floor monitor applications. The rotatable horn design allows vertical or horizontal enclosure orientation. Multiple suspension points are provided for an exceptionally wide range of installation options.

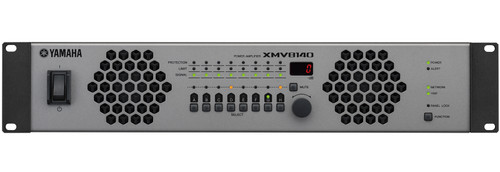

Yamaha XMV8140 Commercial Power Amplifier
The Yamaha XMV Series is comprised of 8 different models with varying output power capabilities and flexible in/out connectivity to accommodate a wide range of installation environments. The newly developed Double Power Mode function effectively doubles the output power of selected channels in order to drive speakers with higher output power. This means that speakers with varying output capacities can be powered simultaneously by the same amplifier, adding flexibility to system design and configuration.
Yamaha MTX3 Matrix Mixer with Signal Processor
With a focus on reliability and worry-free operation, functions such as Feedback Suppressor can automatically locate and eliminate acoustic feedback, while Auto Gain Control maintains a constant output level when input signals vary. For ancillary applications or environments that require public speaking, MTX processors feature a Priority Ducker function which automatically attenuates the output level a specified amount when the input signal from a separate sound source exceeds its threshold as well as an Ambient Noise Compensator which adjusts system gain to compensate for fluctuating background noise levels. Combined with an onboard speaker processor for optimized speaker performance and sound quality, the MTX Series makes it easy to design and configure a complete audio system from input to output.

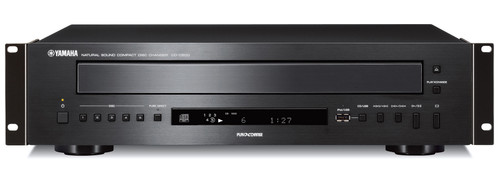

Yamaha CD-C600RK 5 Disc Rackmount CD Player
The Yamaha CD-C600-RK CD player offer Pure Direct, a special listening mode which ensures the highest quality analog audio output. Pure Direct shuts down the digital audio output with the press of a button on the front panel or the remote control, and turns off the display, thus achieving the lowest possible noise interference.
Audio-Technica Pro 49QL Gooseneck Microphone
The PRO 49QL quick-mount double-gooseneck cardioid condenser microphone is designed to plug into any standard XLRF-type surface or cable connector. With a flat, smooth frequency response and self-contained electronics, this mic features a quiet, fixed-placement, long-life gooseneck and wide-range condenser element with low-mass diaphragm for superior performance.

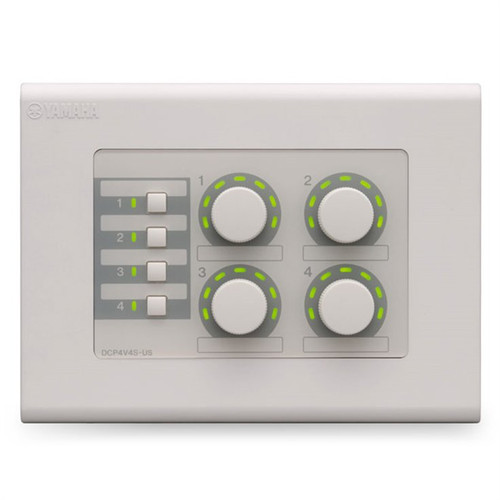

Yamaha DCP4V4S Digital Control Panel for MTX Series
The Yamaha DCP4V4S Digital Control Panel is used for the MTX Series and can be used with up to 8 controllers per 1MTX with CAT5 cable.
