Industry-Leading 192 kHz Precision

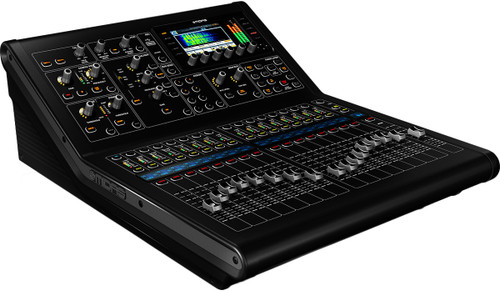

The groundbreaking MIDAS M32R Digital Console combines legendary MIDAS sound quality with advanced digital technology, future-proof 96 kHz capable open architecture design and industry-leading 192 kHz ADC and DAC converters, creating a revolutionary mid-format live console. M32R features ultra-sleek styling, offering you a truly luxurious mixing experience. High-end construction materials provide unparalleled durability and strength, plus substantially lower weight than comparable consoles.
The M32R utilises award-winning MIDAS PRO Series microphone preamplifiers and the custom-designed MIDAS PRO motorised faders that are rated for 1 million life cycles.
Legendary MIDAS Sound Quality
While the MIDAS M32R design, styling, and construction will surely turn a lot of heads, it’s the sound that matters most to engineers and performing artists.
Backing the analogue input section are audiophile Cirrus Logic multi-channel 192 kHz capable A/D converters, which boast a 114 dB dynamic range, ensuring impressively low distortion and low noise performance.
What Makes the M32R Possible is - Everything
Whether you come from an analogue mixing background, or are accustomed to using other digital consoles, your first experience with M32R has been engineered to be intuitive, fluid and straightforward.
The brilliance of the M32R is its simplicity and workflow. Tactile controls allow smooth adjustments to critical elements as the mix progresses while the TFT screen keeps you informed every step of the way. This integration of tactile controls, motorised faders and the array of LCD and TFT displays makes the M32R experience the premiere solution for Live Sound, Broadcast, Studio Recording and Post Production applications.
| Processing | |
|---|---|
| Input Processing Channels | 32 Input Channels, 8 Aux Channels, 8 FX Return Channels |
| Output Processing Channels | 8 / 16 |
| 16 Aux Buses, 6 Matrices, Main LRC | 100 |
| Internal Effects Engines (True Stereo / Mono) | 8 / 16 |
| Internal Show Automation (Structured Cues / Snippets) | 500 / 100 |
| Internal Total Recall Scenes (Incl. Preamplifiers and Faders) | 100 |
| Signal Processing | 40-Bit Floating Point |
| A/D Conversion (8-Channel, 96 kHz Ready) | 24-Bit, 114 dB Dynamic Range, A-weighted |
| D/A Conversion (Stereo, 96 kHz Ready) | 24-Bit, 120 dB Dynamic Range, A-weighted |
| I/O Latency (Console Input to Output) | 0.8 ms |
| Network Latency (Stage Box In > Console > Stage Box Out) | 1.1 ms |
| Connectors | |
| MIDAS PRO Series Microphone Preamplifier (XLR) | 16 |
| Talkback Microphone Input (XLR) | 1 |
| RCA Inputs / Outputs | 2 / 2 |
| XLR Outputs | 8 |
| Monitoring Outputs (XLR / 1/4 inch TRS Balanced) | 2 / 2 |
| Aux Inputs/Outputs (1/4 inch TRS Balanced) | 6 / 6 |
| Phones Output (1/4 inch TRS) | 1 (Stereo) |
| AES50 Ports (KLARK TEKNIK SuperMAC) | 2 |
| Expansion Card Interface | 32 Channel Audio Input / Output |
| ULTRANET P-16 Connector (No Power Supplied) | 1 |
| MIDI Inputs / Outputs | 1 / 1 |
| USB Type A (Audio and Data Import / Export) | 1 |
| USB Type B, Rear Panel, for Remote Control | 1 |
| Ethernet, RJ45, Rear Panel, for Remote Control | 1 |
| Mic Input Characteristics | |
| Design | MIDAS PRO Series |
| THD+N (0 dB Gain, 0 dBu Output) | < 0.01% unweighted |
| THD+N (+40 dB Gain, 0 dBu to +20 dBu Output) | |
| Input Impedance (Unbalanced / Balanced) | 10 kΩ / 10 kΩ |
| Non-Clip Maximum Input Level | +23 dBu |
| Phantom Power (Switchable Per Input) | +48 V |
| Equivalent Input Noise @ +45 dB Gain (150 Ω Source) | -125 dB (22 Hz-22 kHz, unweighted) |
| CMRR @ Unity Gain (Typical) | >70 dB |
| CMRR @ 40 dB Gain (Typical) | >90 dB |
| Input/Output Characteristics | |
| Frequency Response @ 48 kHz Sample Rate | 0 dB to -1 dB (20 Hz-20 kHz) |
| Dynamic Range, Analogue In to Analogue Out | 106 dB (22 Hz-22 kHz, unweighted) |
| A/D Dynamic Range, Preamplifier and Converter (Typical) | 109 dB (22 Hz-22 kHz, unweighted) |
| D/A Dynamic Range, Converter and Output (Typical) | 109 dB (22 Hz-22 kHz, unweighted) |
| Crosstalk Rejection @ 1 kHz, Adjacent Channels | 100 dB |
| Output Level, XLR Connectors (Nominal / Maximum) | +4 dBu / +21 dBu |
| Output Impedance, XLR Connectors (Unbalanced / Balanced) | 50 Ω / 50 Ω |
| Input Impedance, TRS Connectors (Unbalanced / Balanced) | 20 kΩ / 40 kΩ |
| Non-Clip Maximum Input Level, TRS Connectors | +21 dBu |
| Output Level, TRS (Nominal / Maximum) | +4 dBu / +21 dBu |
| Output Impedance, TRS (Unbalanced / Balanced) | 50 Ω / 50 Ω |
| Phones Output Impedance / Maximum Output Level | 40 Ω / +21 dBu (Stereo) |
| Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain | -85 dBu 22 Hz-22 kHz unweighted |
| Residual Noise Level, Out 1-16 XLR Connectors, Muted | -88 dBu 22Hz-22kHz unweighted |
| Residual Noise Level, TRS and Monitor Out XLR Connectors | -83 dBu 22 Hz-22 kHz unweighted |
| Display | |
| Main Screen | 5" TFT LCD, 800 x 480 Resolution, 262k Colours |
| Channel LCD Screen | 128 x 64 LCD with RGB Colour Backlight |
| Main Meter | 18 Segment (-45 dB to Clip) |
| Power | |
| Switch-Mode Power Supply | Auto-Ranging 100-240 VAC (50/60 Hz) |
| Power Consumption | 70 W |
| Standard Operating Temperature Range | 5°C – 40°C (41°F – 104°F) |
| Dimensions (H x W x D) | 18.8" (478 mm) x 24.3" (617 mm) x 8.2" (208 mm) |
| Weight | 31.5 lbs (14.3 kg) |
