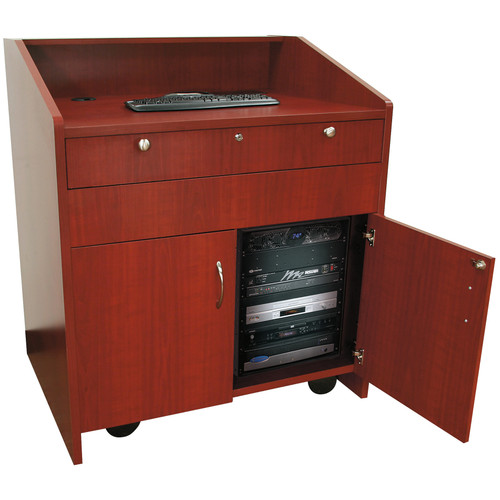

The CFR-12-18 12 space 18 Inch deep cabinet frame rack Designed to provide rackspace in cabinets, credenzas, podiums, lecterns, and other pre-built structures. Middle Atlantic Products has introduced a new welded Cabinet Frame Rack (CFR Series) for commercial AV use designed and engineered to provide the most useable rackspace for the overall height of the rack.
Its ability to maximize rackspace in lecterns, podiums, credenzas, and cabinets makes the CFR a perfect fit for classrooms, meeting rooms, corporate facilities, lecture halls and more.
Within the CFR's space-efficient design, the overall height is almost completely dedicated to rackspace, with just under an inch (0.94") of steel, top and bottom combined, for structural support. That, coupled with the rack's slim 19 1/4" width and two useable depths (16" & 18"), enables it to fit efficiently into a variety of furniture while providing maximum space for equipment.
The Cabinet Frame Rack is available with 8, 9, 10, 11, 12, 13 and 14 rackspaces, and ships fully welded, ready for the loading of equipment. It also comes with two adjustable lacer bars to route and manage cables or mount accessories such as power strips and power supplies.
An optional low profile, low-friction runner kit allows the rack to slide easily in and out for easy equipment access while protecting furniture and woodwork from damage.
| Rack Space | 12 |
|---|---|
| Design | Low Profile |
| Comes standard with: | Two adjustable front to rear lacing bars for cable dressing or mounting accessories |
| Designed to provide rackspace in: | Cabinets, credenzas, podiums, lecterns and other pre-built structures |
| Constructed of: | 11-gauge steel with tapped 10-32 mounting holes |
| Weight capacity | 250 lbs |
| Racking Height | 21.00" (533) |
| Overall Height | 21.94" (557) |
| Useable Depth | 18 Inch |
