MIPRO ACT-70HC Rechargeable Handheld Transmitter
The wideband rechargeable Mipro ACT-70HC handheld transmitter is built on the experience and backbone of three generations of wireless products. Powered by a rechargeable lithium battery, the ACT-70HC features a lightweight magnesium alloy housing, MU-90 condenser capsule, improved RF circuitry, low power consumption characteristics, backlit LCD display, silent on/off and mute switches and 72 MHz of bandwidth. The Mipro ACT-70HC is innovative and reliable, offering the premium performance needed by today's audio professionals. The ACT-70HC handheld transmitter is for use with MIPRO's ACT 7-Series receivers.
| Housing | Aluminum |
|---|---|

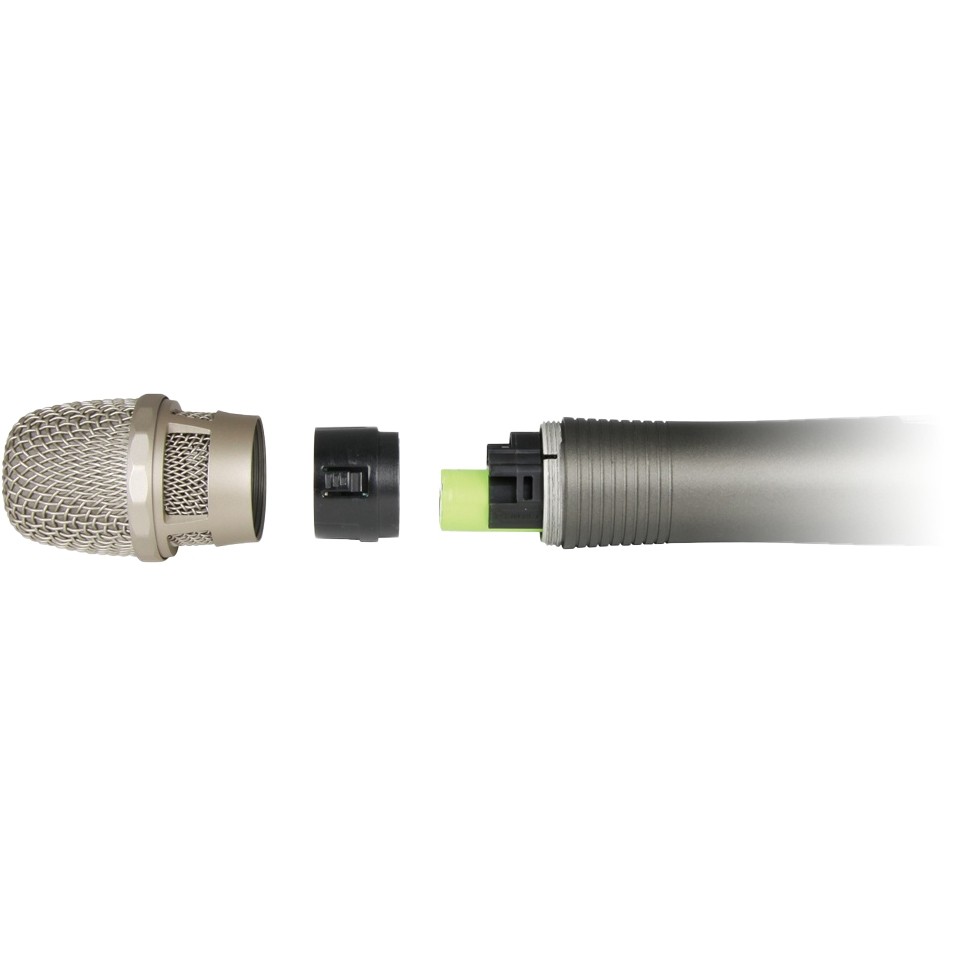

| Mic Capsule Module | Interchangeable Condenser or Dynamic |
| Display | Green Backlit LCD |
| Frequency Range | UHF 480 – 934 MHz (country dependent) |
| Bandwidth | 72 MHz |
| Channel Set-Up | ACT Sync |
| RF Output Power | 10 mW / 50 mW (switchable) |
| Deviation | < ±40 kHz |
| Spurious Emissions | ≦ -55 dBc |
| Gain Setting | +6 dB, +3 dB, 0 dB, -3 dB, -6 dB (five settings) 0 dB = input microphone sensitivity |
| Max. SPL | 142 dB SPL |
| Battery Type | 1 × ICR 18500 lithium battery |
| Current Consumption | High Power: approx. 125 mA Low Power: approx. 100 mA |
| Operating Time | Min.13 hours |
| Dimensions (L x Dia) | 9.8" (250 mm) x 2" (51 mm) |
| Net Weight | 9.7 oz (276 g) |
