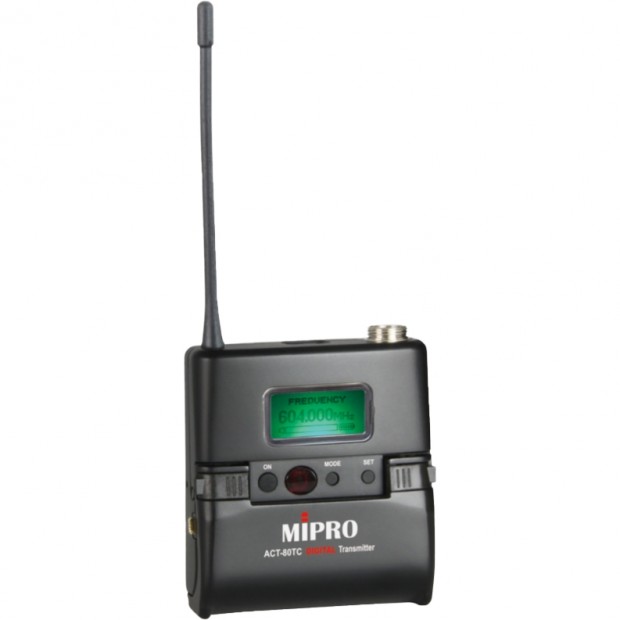

MIPRO ACT-80TC Rechargeable Wideband Digital Bodypack Transmitter
The ACT-80TC rechargeable bodypack transmitter is for use with the ACT-818 and ACT-828 receivers. It features a durable magnesium alloy housing and is the industry's smallest digital bodypack transmitter. It has a detachable antenna and direct and remote mute control. The MIPRO ACT-80TC has an adjustable belt-clip and is powered by one 18500 lithium rechargeable battery.
The transmitter has a high-efficiency circuitry design. The included single rechargeable lithium battery can be easily removed or interchanged for charging. The ICR-18500 battery maintains a high charge capacity for up to 600 full charge cycles.
| Housing | Magnesium |
|---|---|
| Mic Capsule Module | Lavalier, Headworn Mic |
| Display | Green Backlit LCD Displays Various Parameters |
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) |
| Bandwidth | 64 MHz |
| Encryption | 256 bits |
| Modulation Mode | New Digital Modulation |
| Audio Compression | DSP Inertial Coding |
| RF Power Output | 10 mW / 50 mW switchable (country dependent), 50 Ω loaded |
| Spurious Emission | < 4 nW |
| Gain Setting | 6 Settings, Auto Limiter Prevents Distortion |
| Input Connector | Mute Switch, Mini-XLR Connector and Antenna |
| Battery | 1 x ICR 18500 lithium battery |
| Operating Time | Min. 13 hours |
| Charger | MP-80 / MP-8 |
| Dimensions (H × W x D) | 2.8" (70 mm) x 2.5" (63 mm) x 1" (25 mm) |
| Net Weight | 3 oz (85 g) |
