MIPRO MA-100SB/ACT32H Portable PA System with Wireless Handheld Mic

The MA-100SB/ACT32H is an ultra-compact and ultra-light wireless PA system. The MIPRO MA-100SB is powerful and offers a vast array of features in an easy-to-use package. It can be easily carried via the padded shoulder strap, built-in handle, or mounted on a microphone stand. It is an excellent public address solution for small crowds.

Features

Features

MA-100SB Wireless PA System:

Rugged yet lightweight one-piece molded cabinet
Built-in diversity receiver with 16 auto-scannable frequencies
One-touch Scan and Sync (ACT) button for fast and easy channel set-up
Built-in Bluetooth receiver for wireless audio streaming
Built-in USB music player and recorder with LCD screen
Built-in one-button alarm/siren for warning of threats
User-friendly control panel provides intuitive easy operation
50W Class-D amplifier to power a 5" full-range driver
AC and lithium rechargeable battery operation
Up to 12 hours of standby time per 4-hour full charge

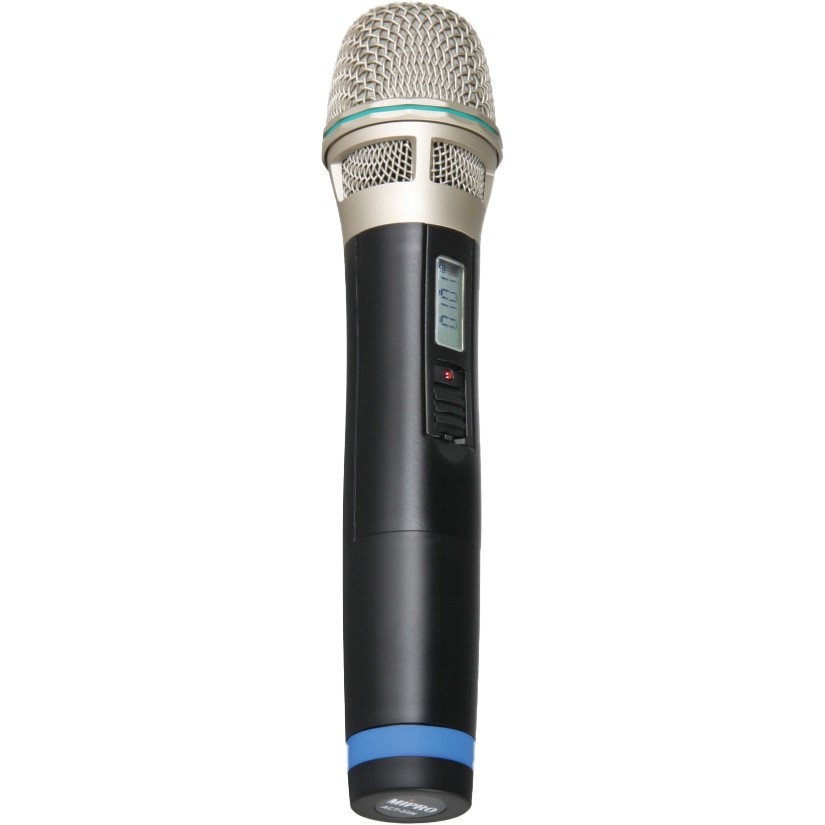

ACT-32H Handheld Transmitter:

Innovatively designed metal housing in MIPRO's distinctive aesthetic and ergonomic style
Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille is easy to detach for cleaning and hygiene practice
Patented capsule suspension design virtually eliminates vibration and handling noises
Built-in high-efficiency antenna
Backlit LCD displays all operational parameter information
World's first ACT™ function provides precise and rapid frequency sync to the receiver

Specification

Portable PA
Maximum Power Output	50W
Amplifier	Class D
Sensitivity	Typical: 90 dB \| Maximum: 102 dB
THD	< 1%
Frequency Response	50 Hz ~ 18 kHz
Speaker	5" full-range, high efficiency
Audio Inputs	Wired: 1/4" (6.3 mm) Line-In: 1/8" (3.5 mm)
Bluetooth Connectivity	Yes
Audio Output	1/8" (3.5 mm)
Power Supply	AC: External 100 ~ 240V AC switching power supply (Max. Power Consumption: 60 W) DC & Battery:Built-in 14.8 V / 2.6 AH rechargeable lithium battery (MB-10 × 1)
Charge Time	4 hours (automatic charging management)
Standby Time	MA-100SB: > 12 hours
Battery Indicator	4-level indicator (25/50/75/100%)
Dimensions (H x D x W)	5.6" (144 mm) x 5.3" (135 mm) x 9.4" (240 mm)
Weight	3.9 lbs (1.8 kg) (MB-10 battery included)
Wireless System
Receiver Channel	MA-100SB: Single
Frequency Range	UHF 5A 506-530 MHz \| 5NC: 542-566 MHz
Bandwidth	24 MHz
Preset Channels	16
Channel Set-Up	Scan & ACT sync
Transmitter	ACT-32H
Antenna	Built-in Dual Antennas
Audio Player
Built-in USB Port	USB 2.0
USB Play and Record	LCD displays track name, number, time, recording status
Operation	On-board \| USB remote control included
ACT-32H
Display	LCD displays all operational parameter information
Frequency Range	UHF 5A: 506-530 MHz \| 5NC: 542-566 MHz
Bandwidth	24 MHz
RF Output Power	30 mW
Deviation	< ± 40 kHz
Spurious Emissions	< -55 dBc
Battery	2x AA alkaline
Operating Time	20 hours Typ.
Weight	0.55 lbs (0.25 kg)
