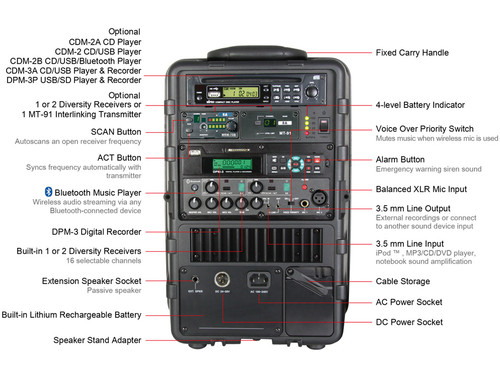

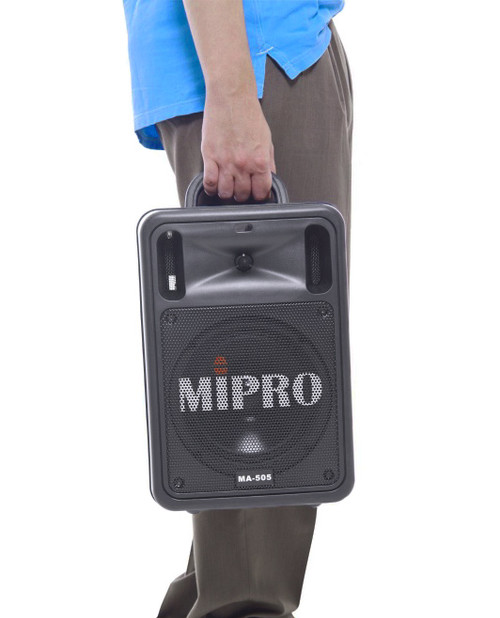

The MA-505 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. Built-in digital audio player with optional CD player and interlinking transmitter/receiver package for extended transmission range. It offers an ideal public address solution for medium crowds.
Ideal Applications:
| Portable PA | |
|---|---|
| Max. Power Output | 100W(rms)/ 4Ω, 145W(max)/ 4Ω |
| Amplifier | Class D |
| Sensitivity | Typical: 91 dB | Maximum: 109 dB |
| T.H.D. | < 1% |
| Frequency Response | 50 Hz – 18 kHz |
| Speaker | Tweeter: 1" Compression Driver; Bass: 8" Woofer |
| Coverage | H 130° × V 90° |
| Audio Inputs | Wired: XLR × 1 & 6.3 mm (1/4") × 1 Wireless: Up to 4. 2 Built-in & 2 External Detachable Line-In: 3.5 mm (1/8 ") mini-jack |
| Bluetooth Connectivity | Yes |
| Audio Output | 3.5 mm (1/8") mini-jack |
| Extension Speaker | Unbalanced 6.3 mm (1/4") jack |
| Volume | Individual volume control |
| Functions | VOP, Tone control or optional Echo control |
| Alarm Siren | Siren sound with fade-in mode |
| Storage | For AC power cable |
| Installation | Hand carry, Flat surface or on a speaker stand |
| Power Supply | AC: Built-in 100 – 240 V AC switching power supply Max. Power Consumption: 165W DC & Battery: External DC connector Built-in 22.2V/4.5AH rechargeable lithium (MB-35 × 1) |
| Charge Time | Up to 4 hours (automatic charging management) |
| Standby Time | Up to 8 hours |
| Battery Indicator | 4-level LED indicator (25/50/75/100%) |
| Color | Black |
| Wireless System (optional) | |
| Built-in Fixed Receiver | 1 or 2 with Scan & ACT sync |
| Detachable Module Receiver | 1 or 2 MRM-70B︱MRM-70W︱MRM-80︱MRM-24 Scan & ACT sync |
| Frequency Range | MRM-70B︱MRM-70W︱MRM-80: UHF 480 ~ 934 MHz (country dependent) MRM-24: 2.4 GHz |
| Preset Channels & Bandwidth | See Accessories - Receiver Modules |
| Antenna | Built-in proprietary active high efficiency antenna |
| Audio Player (optional) | |
| Audio Player | CDM-2︱CDM-2A︱CDM-2B︱CDM-3A︱DPM-3 | DPM-3P |
| Audio Remote Control | DPM-3 (detachable or on-board) |
| Dimensions (H x W x D) | 15.7" (400 mm) x 10.8" (275 mm) x 8.9" (225 mm) |
| Weight | Approx. 18.7 lbs (8.5 kg) (MB-35 battery included) |
