MIPRO MA-707PADM (5AH) Wireless Portable PA System with Handheld Microphone (Discontinued)

Description

Details

The MIPRO MA-707PADM Portable Wireless PA System is a modular, compact, and portable PA system which features a 100W amplifier and an 8" speaker. It includes an MRM-70 wireless receiver module, a CDM-2P CD player module with remote control and an ACT32H5A wireless handheld microphone.

The MRM-70 single-channel diversity-receiver module provides 16 preset UHF frequencies. You need to press the "scan" button once to autoscan for an interference-free receiver frequency. The built-in "noise" indicator detects the presence of interference. In case the indicator is lit during operation, you simply need to press the "scan" button again to autoscan for another interference-free frequency.

The CDM-2P CD/USB player module can play standard 5" audio CDs, as well as USB flash disks via its USB 2.0 port. It features selection and search functions, and has random and repeat playback options. The player module includes a remote control. Headworn, lavalier, and handheld microphones with a transmitter are available to complement the system (sold separately).

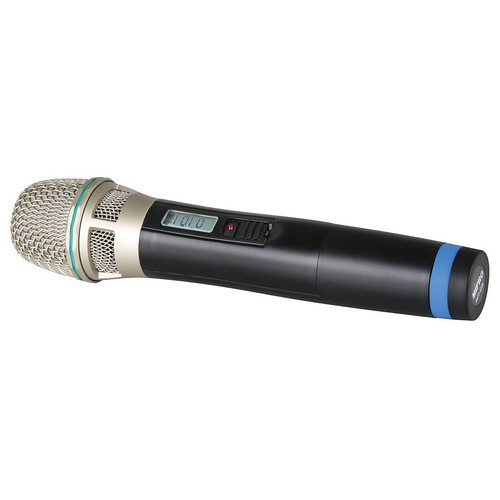

The ACT-32H Cardioid Condenser Mic is a handheld transmitter microphone that uniformly captures sound. It features a multi-layered metal grille which protects the capsule against impact, rolling and pop noise. The reversible end-cap prevents the power on/off switch from being locked to avoid an accidental power-off during performance.

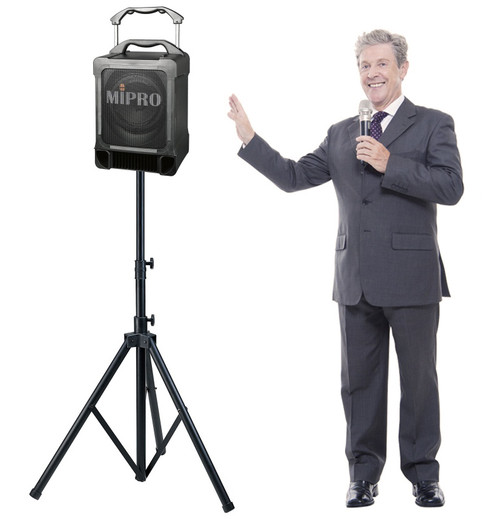

MA-707PADM is housed in a rugged enclosure and is powered by two built-in MB-70 lead-acid 12V rechargeable batteries or via the built-in AC-switching power supply. It is designed for use in medium-to-large crowds, and in applications for schools, seminars, meetings, indoor/outdoor gatherings, and shopping center presentations and promotions. The base of the MA-707PADM features a tripod-mating socket to accommodate a tripod speaker stand. This allows you to use this PA in floor or desk applications as well.

Features

Features

Crowd Sizes up to 700
16 channel wireless receiver built-in; INCLUDES Wireless handheld microphone (ACT32H5A)
AC & Battery powered
8 hour Battery operation time; 8 hour battery charge time
Frequency range: 506 - 530MHz

Specification

MA-707PA
Power Output	100W (Max)
Amplifier	Class AB
T.H.D.	<1%
Frequency Response	50Hz - 18KHz
Audio Inputs	Wired: XLR × 1 & 6.3 mm (1/4")× 1 Wireless: UP to 2 wireless microphones Line-In: Unbalanced 6.3 mm (1/4") jack
Audio Output	Unbalanced line 6.3mm (1/4") jack
Extension Speaker	6.3mm (1/4") Phone jack
Volume	Master and other individual controls
Controls	Tone control on wireless mics
Storage	2 handheld or bodypack transmitters

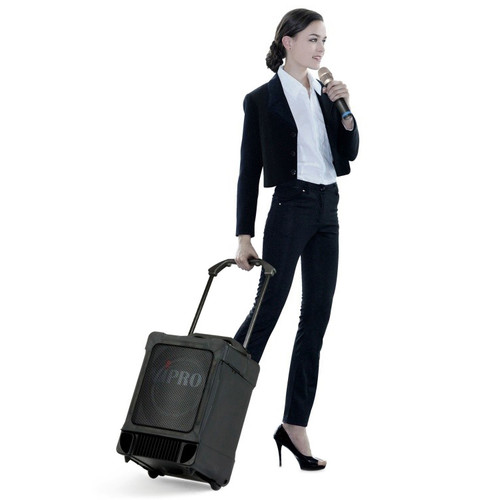

Installation	Speaker stand, flat surface or retractable handle & wheels
Power Supply	AC: Built-in 100 – 240 V AC switching power supply (Max. Power Consumption: 120 W) DC & Battery: 24 – 32 V DC,12V/4.5AH rechargeable gel cell battery (MB-70×2) or optional MB-80×2
Charge Time	Up to 8 hours (automatic charging management)
Stand-by Time	Up to 8 hours
Battery Indicator	Single LED indicator
Dimensions (H x W x D)	17.5" (445 mm) x 12.2" (310 mm) x 9.4" (240 mm)
Weight	Approx. 32.5 lbs (14.8 kg) (batteries included)
ACT-32H Mic
Housing	Black-color rugged plastic housing
Display	LCD displays all operational parameter information
Frequency Range	UHF 480 ~ 934 MHz (country dependent)
Bandwidth	24 MHz
RF Output Power	10 ~ 30 mW (country dependent)
Deviation	< ± 40 kHz
Spurious Emissions	< -55 dBc
Gain	0 dB = input microphone sensitivity. High-fidelity modulation circuit sustains high SPL without distortion
Operating Time	Min. 12 hours
Battery Type	2 × AA alkaline
Current Consumption	Approx. 92 mA
Dimensions (Dia × L)	2" (50 mm) x 9.2" (233 mm)
Weight (Excluding Batteries)	Approx. 8.68 oz (246 g)
