Inside the Design
This professional four-zone commercial sound system is ideal for background music and paging in facilities up to 8,000 square feet. Designed for warehouses, plants, office buildings, or outdoor installations, this system features twelve Pure Resonance Audio PD6 6.5" pendant speakers, four Yamaha VXS5 5.25" surface-mount speakers, and four Yamaha VXC4 4" in-ceiling loudspeakers. It is powered by two Pure Resonance Audio DA2240 240W amplifiers and includes the MX84 4-zone, 8-channel rack-mount mixer and the MX8-PM push-to-talk paging microphone with CAT-5 connectivity. Additional components include the Tascam SS-CDR250N networking CD media recorder, Atlas Sound AP-S15LA power conditioner, a 9U wall rack, 3U rack drawer, four PREP-3-PREP patch cables, and 1000 ft of 16/2 audio wire.
Sound System Features:
- Complete four-zone 70V commercial sound system for background music and paging
- Wide-dispersion pendant, surface-mount, and in-ceiling loudspeakers for versatile coverage
- MX84 4-zone rack-mount mixer with 8 mic/line inputs and flexible routing
- MX8-PM push-to-talk paging microphone with zone-selectable paging over CAT-5
- Dual DA2240 amplifiers deliver a total of 480W with dual-impedance capability
- High-performance Tascam SS-CDR250N supports CD/media recording and playback over network
- Atlas AP-S15LA conditioner provides clean power and surge protection
- Durable 9U wall rack with rack drawer, patch cables, and speaker wire included
About the System Components
Pure Resonance Audio PD6 Pendant Speakers
The PD6 6.5" full-range pendant speakers are designed for open-ceiling environments, delivering wide 150° coverage with clear intelligible audio. These indoor/outdoor speakers feature a coaxial design and weather-resistant construction, making them ideal for warehouses or large spaces with high ceilings.

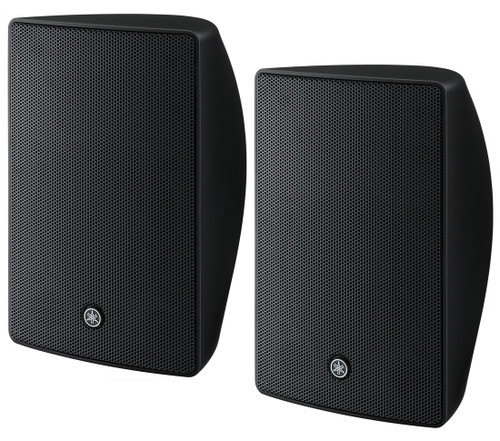

Yamaha VXS5 Surface-Mount Speakers
The Yamaha VXS5 5.25" surface-mount loudspeakers offer high-fidelity sound in a compact design. They are built for indoor/outdoor commercial applications and provide exceptional clarity for background music and paging.
Yamaha VXC4 In-Ceiling Speakers
The Yamaha VXC4 4" in-ceiling loudspeakers are compact and stylish, ideal for spaces where aesthetics matter. They offer wide dispersion and high-quality audio for speech and music applications.

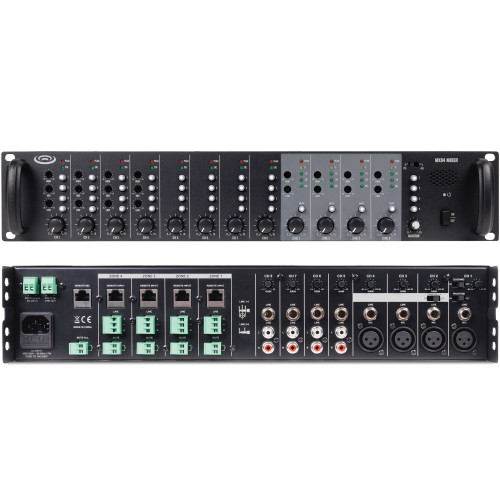

Pure Resonance Audio MX84 4-Zone Mixer
The MX84 rack-mount mixer features 8 mic/line input channels and 4 output zones with independent volume and tone control. It provides reliable audio routing for multi-zone commercial sound systems.

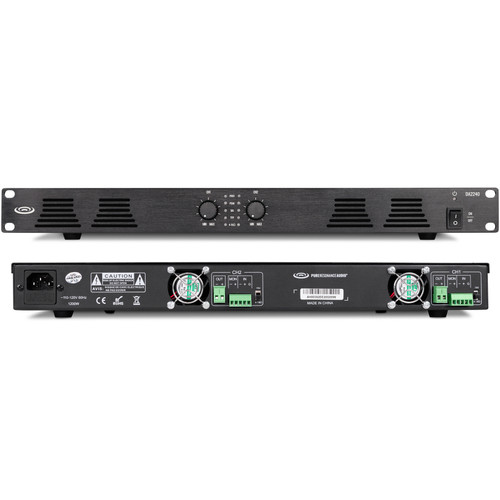

Pure Resonance Audio DA2240 Amplifiers
Each DA2240 amplifier delivers 240 watts of dual-impedance (4-16 ohm and 70V/100V) output power, supporting multiple zones and speaker types in distributed audio systems. Two amplifiers are included for maximum flexibility.

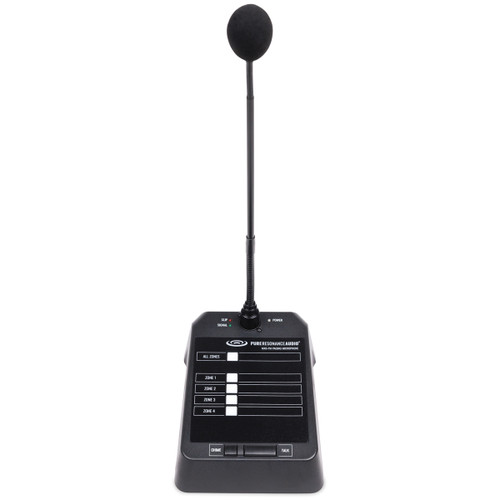

Pure Resonance Audio MX8-PM Paging Microphone
The MX8-PM push-to-talk paging microphone features zone selection, all-call, and group page functions over a single CAT-5 cable, offering precise control and crystal-clear paging in professional installations.
Tascam SS-CDR250N Media Recorder
The SS-CDR250N offers networked CD recording and playback, USB/SD recording, and FTP integration. It's ideal for scheduled music playback or voice announcements in commercial settings.
Atlas Sound AP-S15LA Power Conditioner
The AP-S15LA provides clean AC power, surge protection, and sequenced power distribution for connected equipment. Ideal for safeguarding sensitive audio gear in commercial AV systems.

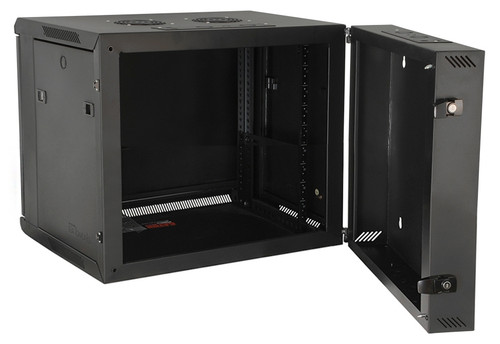

Gator GRW2009508 Wall Rack and GRW-DRW3 Drawer
The 9U sectional wall rack provides organized equipment housing, while the 3U drawer adds secure storage for accessories, remotes, and hardware.
Zone Setup Example
| Zone 1: |
Warehouse
Twelve (12) Pure Resonance Audio PD6 6.5" Pendant Speakers
|
| Zone 2: |
Outdoor Area
Four (4) Yamaha VXS5 5.25" Surface-Mount Speakers
|
| Zone 3: |
Office
Two (2) Yamaha VXC4 4" In-Ceiling Speakers
|
| Zone 4: |
Bathrooms
Two (2) Yamaha VXC4 4" In-Ceiling Speakers
|
