Inside the Design

This church multi purpose sound solution combines the 360° crystal-clear audio coverage of the SD5 with the power and versatility of the MA120BT mixer amplifier. The SD5’s array of custom-engineered drivers works in perfect harmony with its powerful tweeter design to reduce frequency cancellation and provide crystal clear sound, giving this system better audio coverage and response than most loudspeaker systems.

Sound System Features:

• 360° x 180° Coverage: Perfect for the spoken word, our proprietary speaker design produces amazing vocal intelligibility and uniform coverage made possible by a dramatically lower crossover point
• Crystal Clear Sound: The powerful 3" tweeter design works in perfect harmony with the three 5.25" speakers to produce accurate vocals and crystal clear uncolored music reproduction
• Drop-Tile Ceiling Speaker: The SD5 fits perfectly into any standard 2'x2' or 2'x4 ceiling tile grids, providing an amazing 360 degrees of hemispheric sound
• Bluetooth-Enabled: MA120BT supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or smartphones, enabling anyone to walk-in and link up with wireless Bluetooth connection
• VC100W 100W Volume Control: The clean white decora style volume control provides excellent frequency response, low insertion loss, and reliable performance
• Remote Control: The included remote control manages volume levels, play/pause, skip and more all from a distance


About the System Components

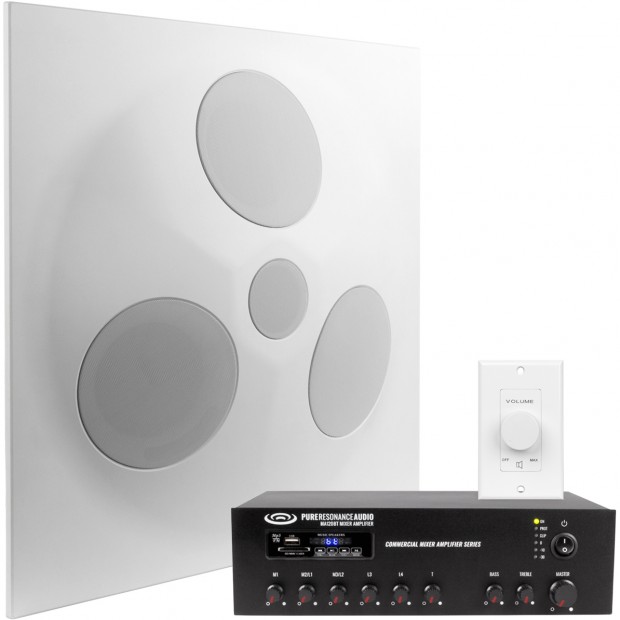

This church speaker package includes a Pure Resonance Audio 2'x2' SD5 SuperDispersion® ceiling speaker array with 360° of crystal-clear audio coverage, each featuring three 5.25" drivers and a 3" tweeter in a thin and lightweight design that is simple to install. Also included is a MA120BT 120 watt Bluetooth mixer amplifier with an IR remote to control the unit from a distance. Also included is a VC100W 100 Decora white 70V volume control and 50' of speaker wire.

Not sure if this is the right House of Worship Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Pure Resonance Audio SD5 SuperDispersion® 70V Omnidirectional Drop Tile Ceiling Speaker Arrays:

• Omnidirectional coverage pattern provides 360° x 180° of consistent frequency response
• Powerful proprietary tweeter design with a lower crossover point improves vocal performance
• Wave guided housing directs sound where it needs to go
• Ported enclosure is acoustically optimized and tuned with bass-reflex for turbulence reduction

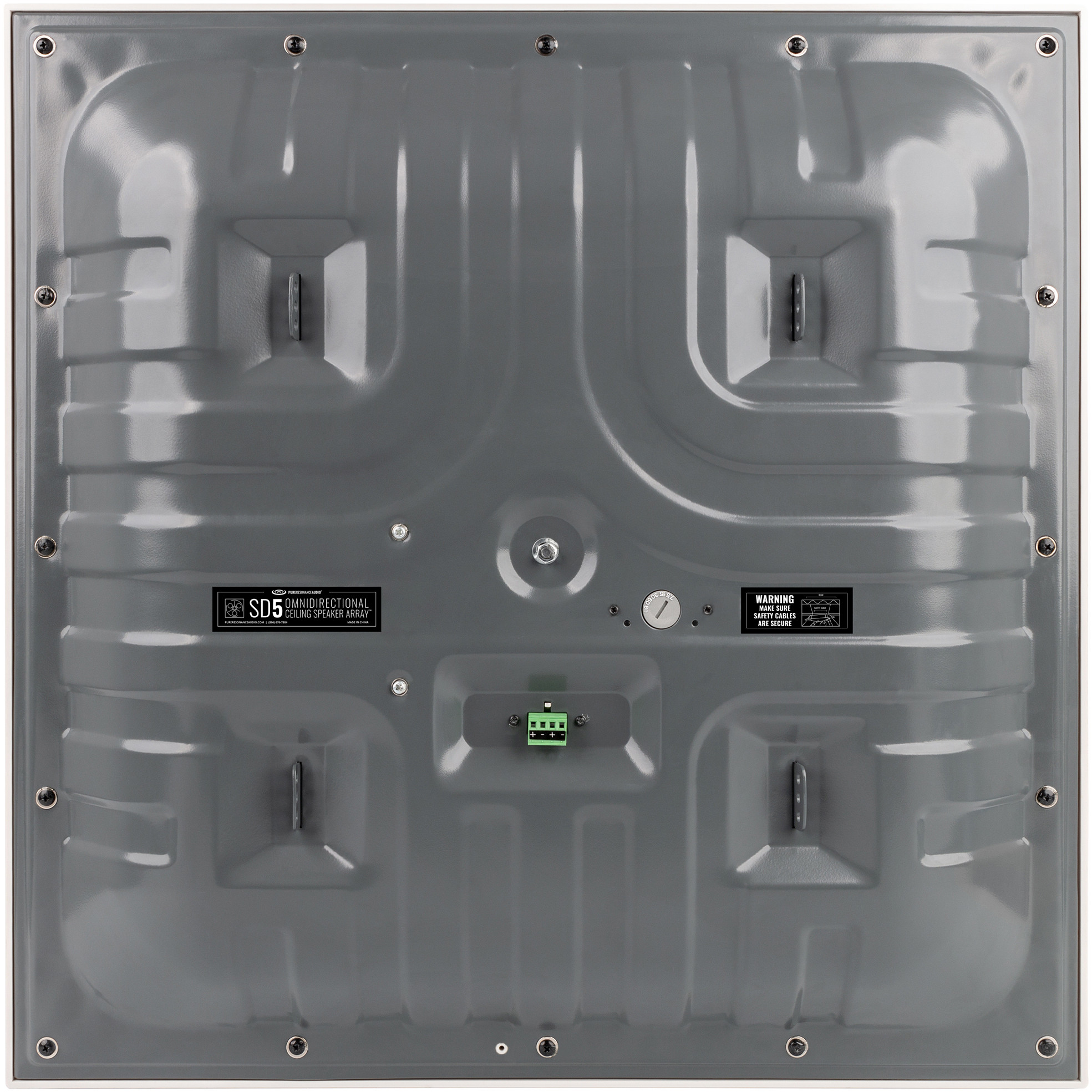

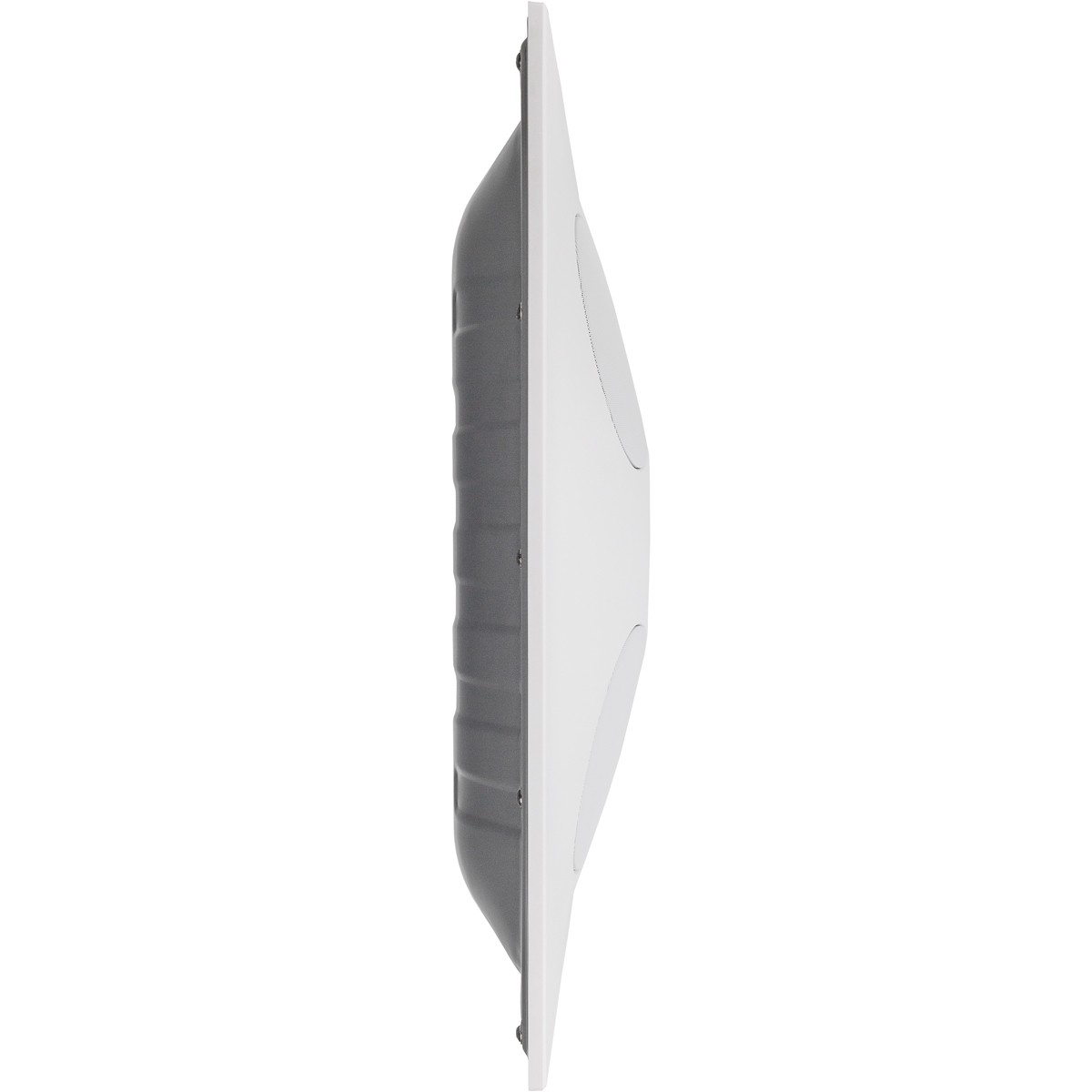

• Low profile metal back-box comes with built-in safety suspension points
• Thumbwheel selectable 8-ohm nominal and 70-volt inputs are compatible with any commercial or stereo amplifier
• Takes just minutes to install, simply remove one ceiling tile and drop the SD5 into any standard drop-ceiling grid
• Safety carabiner kit includes braided steel cables and infinitely adjustable SpeedClamp™ fasteners for secure and fast easy-install



Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 120 Watts
• Built-in 70V/100V transformer

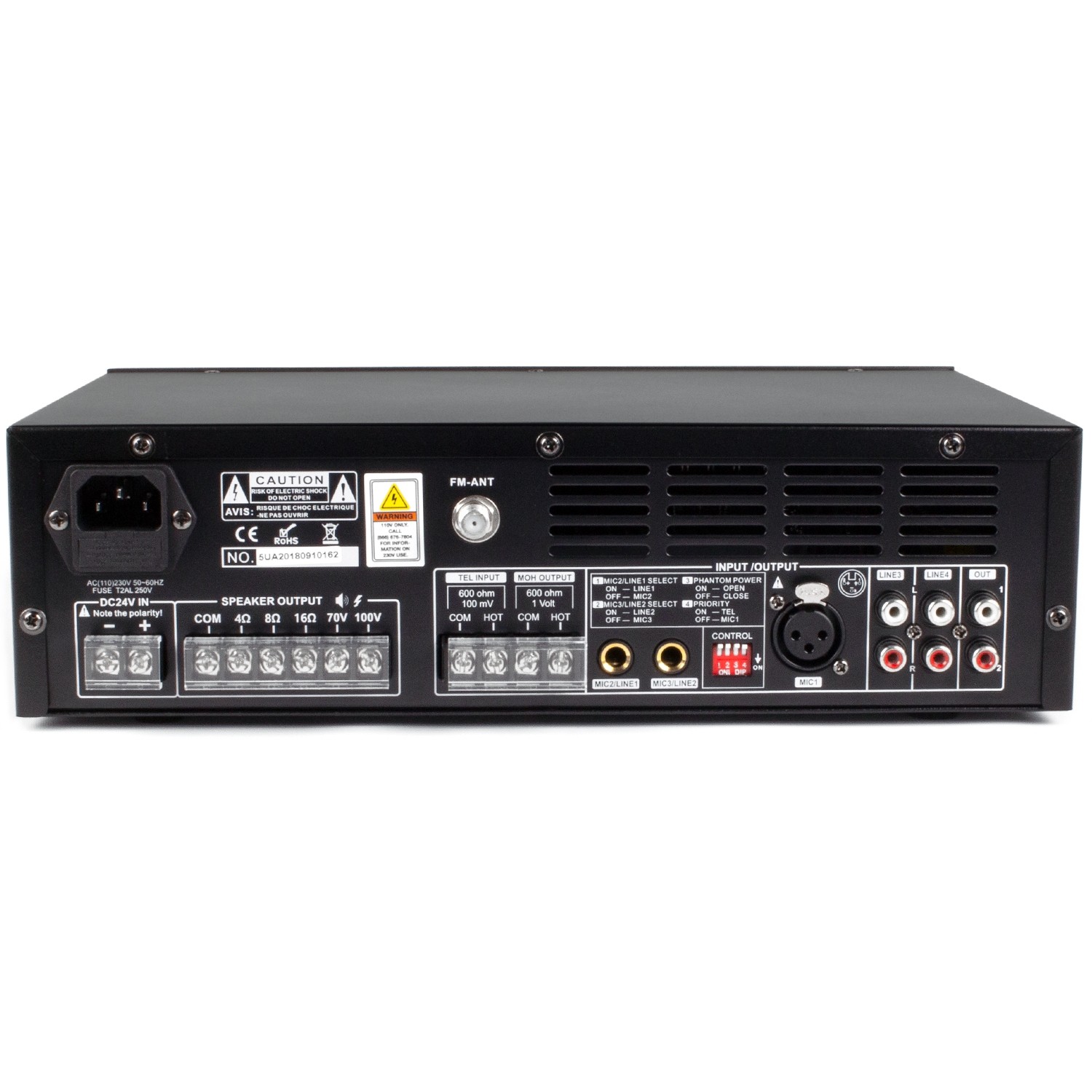

• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

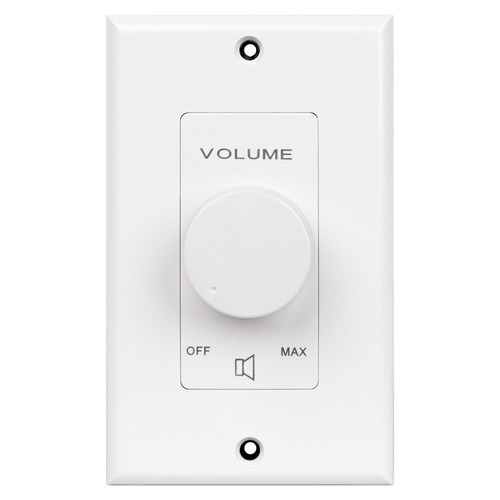

Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Control - White:

• Stylish appearance - Decora-style design includes a white plastic plate with matching knob
• Flexible - The VC100W is perfect for use with a 25V, 70V, or 100V speakers and distributed audio systems
• High-quality adjustment - Volume control attenuator provides excellent frequency response, low insertion loss, and reliable performance
• Smooth volume adjustment - Easily adjust to your desired volume level. No stop between maximum and off position to prevent switch damage
• Versatile - Provides high-quality audio level adjustment of single or multiple speaker lines

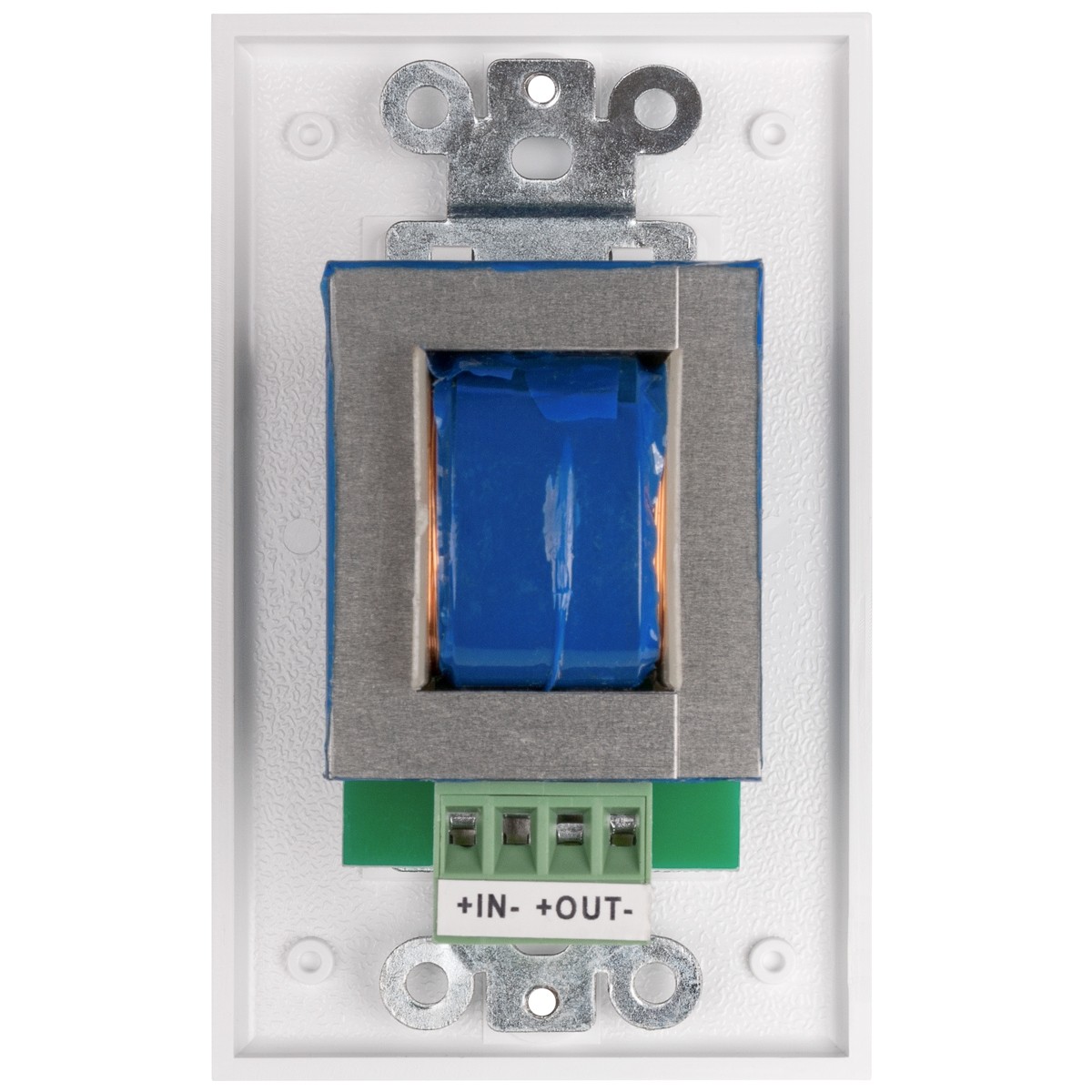

• Detachable euroblock connector - Removable phoenix-style terminal block with in-out throughputs accommodates up to 14G speaker wire

• (1) Pure Resonance Audio SD5 SuperDispersion® Drop Tile Ceiling Speaker Array
• (1) Safety Cable Kit: (4) Steel Safety Cables, (4) Carabiners, and (4) Fastlinks
• (1) Pure Resonance Audio MA120BT 120W Commercial Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (1) Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Control - White
• (50') West Penn 224 18/2 Non-Plenum Audio Speaker Wire - Gray
