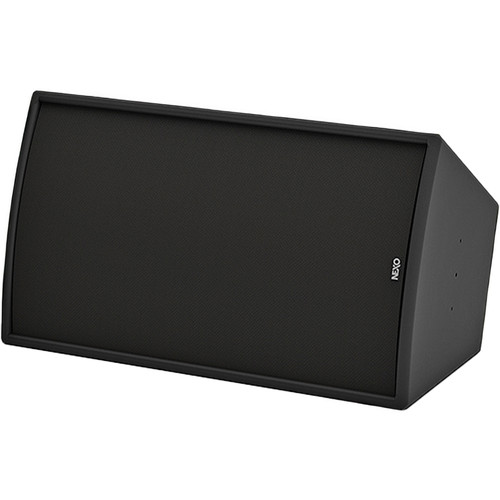

The EPS10 is a high-performance, installation-dedicated point source loudspeaker that builds on NEXO's renowned PS Series heritage. Featuring a high-excursion 10" neodymium low-frequency driver paired with a 1.4" diaphragm compression driver, the EPS10 delivers exceptional output levels up to 130 dB peak while maintaining clarity and control in a compact black enclosure.
At the heart of the EPS10 is NEXO's Asymmetrical Dispersion Constant Directivity "PS" horn, designed to provide optimal audience coverage in fixed installations. The rotatable horn allows installers to tailor vertical dispersion, balancing near-field and long-throw coverage for consistent sound throughout the venue. Its bass-reflex enclosure design ensures a clean, extended low-frequency response even at high output levels.
Purpose-built for permanent installations, the EPS10 features a robust yet lightweight 15 mm birch plywood cabinet with a durable polyurethane coating and IP55 protection when used with the supplied connector cover. Multiple M6 and M10 rigging points, along with a comprehensive range of accessories, allow flexible wall-mounting, flying, or integration with ELS600 or ELS18 subwoofers. Perfect phase alignment with other NEXO loudspeakers ensures seamless system integration without the need for complex electronic adjustments.
| Frequency Response @-6 dB | 70 Hz to 20 kHz |
|---|---|
| Sensitivity 1W @ 1m | 101 dB SPL Nominal |
| Peak SPL @ 1m | 130 dB |
| Vertical Dispersion | +25°/-30° |
| Horizontal Dispersion | 50° to 100° asymmetrical |
| Crossover Frequency | 70 Hz, 120 Hz |
| Nominal Impedance | 8Ω |
| Recommended Power | 500 to 800 Watts/8 Ohms |
| Number of Ways | 2 way passive |
| LF Component | 10" 8 Ohms long excursion neodymium driver |
| HF Component | 1.4" diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion ("PS") horn |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible Cables Section | Cables from 0.75 mm to 3.31 mm (AWG 18 to 12) copper section |
| Compatible Cables Outside Diameter | Cable with maximum outside diameter of 11 mm |
| Rigging Points | 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot) |
| Material | 15 mm thick birch plywood body and galvanized grill |
| Finish | Black structural paint |
| Front Finish | UV & Fire resistant acoustic fabric |
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| IP Rating | IP55 |
| Dimensions (H x W x D) | 20.9" (531 mm) x 12.4" (316 mm) x 11.2" (285 mm) |
| Weight | 32.6 lbs (14.8 kg) |
