NEXO IDS312-I 3x12" Fixed Installation Column Companion Subwoofer

More Views

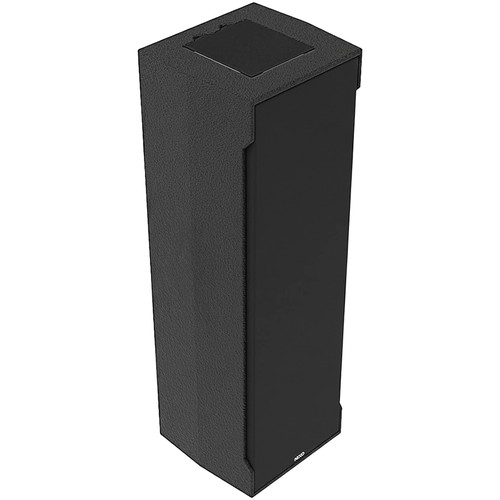

NEXO IDS312-I 3x12" Fixed Installation Column Companion Subwoofer for ID84 Column Speaker - Black

Part # IDS312-I

Model # IDS312-I

The NEXO IDS312-I is a fixed-installation 3x12" column subwoofer designed to perfectly complement the ID84 column speaker. With neodymium drivers, a slim black birch-ply enclosure, and installation-grade connectivity, it delivers powerful low-frequency extension with seamless system integration.

Availability:

List Price $3,384.00

Pro Acoustics Price Price $2,709.99

Your Savings $674.01 (20%)

Qty:

Share with
Add to Wishlist

Description

Details

NEXO IDS312-I 3x12-Inch Installation Black Column Subwoofer

The IDS312-I is a high-performance fixed installation column subwoofer engineered as the ideal low-frequency companion to the ID84 column speaker. Featuring three high-excursion 12" neodymium woofers in a compact bass-reflex enclosure, the IDS312-I delivers impressive output, exceptional clarity, and the signature NEXO power-to-size efficiency. Its sleek black finish and discreet form factor make it perfect for venues requiring both premium audio performance and architectural integration.

Designed specifically for permanent installations, the IDS312-I includes a UV and fire-resistant acoustic fabric front grille and IP54-rated connectivity via cable gland and captive two-core connections. Without the touring Quick Connect system, this version offers a clean, secure, and visually unobtrusive solution for theaters, houses of worship, corporate spaces, and performance venues.

When paired with the ID84, the IDS312-I creates a unified two-meter acoustic source with flawless phase alignment and extended bandwidth, ensuring smooth coverage and powerful, natural sound. Its ability to be stacked horizontally or vertically, combined with a variety of mounting accessories, gives integrators the flexibility needed to achieve optimal system design in any installation environment.

Features

Features

3x12" high-excursion neodymium woofers for powerful LF performance
Purpose-built companion subwoofer for NEXO ID84 column speaker
Slim, architectural black design ideal for discreet installations
Bass-reflex enclosure for high output and low distortion
IP54-rated installation version with cable-gland connectivity
UV and fire-resistant acoustic fabric grille for clean aesthetics
Stackable horizontally or vertically for optimal placement
Perfect phase alignment with NEXO ID Series loudspeakers
Lightweight birch-plywood construction
Wide ecosystem of mounting accessories for integrator flexibility

Specification

Frequency Response @-6 dB	40 Hz to 120 Hz
Sensitivity 1W@1m	105 dB SPL Nominal
Peak SPL@1m	138 dB
Crossover Frequency	40-85 Hz, 40-120 Hz, 40-150 Hz, 63-120 Hz, 63-150 Hz
Nominal Impedance	2Ω
Recommended Power	1300 to 2100 Watts/2 Ohms
Components	3 x Neodymium 12" 6 Ohms long excursion
Connectors	Cable gland with 2x core cable
Rigging points	1 x pair of M6 rigging points to link the IDS312 to a base plate
Material	15 mm baltic birch plywood
Finish	Black structural paint (RAL9005)
Front Finish	UV & Fire resistant acoustic fabric
Operating Temperature Range	0°C - 40°C (32°F - 104°F)
Storage Temperature Range	-20°C - 60°C (-4°F - 140°F)
IP Rating	IP54
Dimensions (H x W x D)	45.7" (1160 mm) x 15" (380 mm) x 13.8" (350 mm)
Weight	68 lbs (31 kg)
