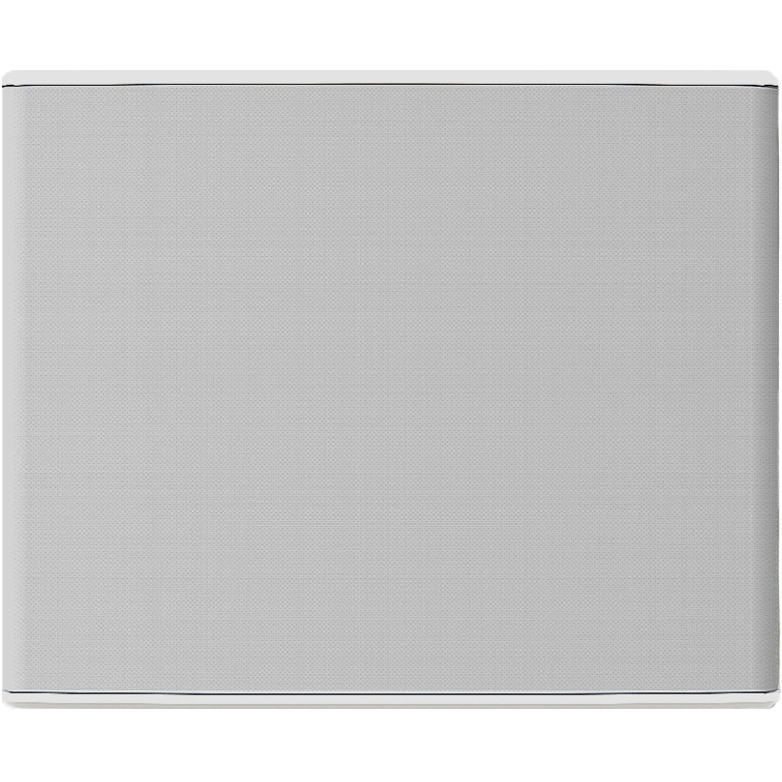

NEXO L18I-PW 18-Inch White Installation Subwoofer
The L18I-PW is a high-output, compact horn-loaded subwoofer engineered specifically for fixed installation applications that demand powerful, controlled low-frequency reinforcement. Equipped with an 18" long-excursion neodymium driver and a precision band-pass horn design, the L18I-PW delivers exceptional bass impact and clarity while extending system response down to 32 Hz with up to 140 dB peak SPL. Its white enclosure integrates seamlessly into professional venues where both performance and aesthetics matter.
Constructed from lightweight yet robust Baltic birch and poplar plywood, the L18I-PW features a rounded cabinet design that improves airflow and enhances durability. A white fabric-covered grille provides a clean, discreet appearance suitable for architectural installations, while threaded inserts on the back and sides allow for secure mounting using compatible accessories.
Optimized to match the efficiency and output of the NEXO P15, the L18I-PW takes full advantage of NXAMPmk2 processing, including Advanced Dynamic Processing and phase-aligned crossover options. With selectable crossover frequencies and low-latency operation, this white-finished installation subwoofer delivers tight, impactful sub-bass ideal for theaters, houses of worship, clubs, and performance venues.
- Features
Features
- Compact 18" horn-loaded subwoofer for fixed installations
- Designed to pair seamlessly with NEXO P15 loudspeakers
- Delivers deep bass extension down to 32 Hz
- Produces up to 140 dB peak SPL with high impact
- High-excursion 18" neodymium driver with 4.5" voice coil
- Lightweight Baltic birch and poplar plywood enclosure
- White fabric grille for a discreet installation appearance
- Threaded mounting points for secure accessory attachment
- Optimized for NXAMPmk2 processing and control
- Specification
Frequency Response (+6 dB) 32 Hz - 120 Hz Peak SPL Level (1m) 140 dB Peak Recommended Amplifiers 1550 to 2450 Watts/4Ω Crossover Frequency 60 Hz, 85 Hz, 120 Hz Nominal Impedance 4Ω Components 1x 18" - 4 ohms - Long excursion - Neodymium driver Connectors Quick-connect push connector Rigging Points 1 x Universal accessory fit on each side + 1 x M20 thread for Pole Stand on top Material Custom made bent plywood of Baltic birch and poplar Finish White structural paint Front Finish Fabric covered front grille Operating Temperature Range 0°C - 40°C (32°F - 104°F) Storage Temperature Range -20°C - 60°C (-4°F - 140°F) Dimensions (H x W x D) 22" (559 mm) x 26.8" (680 mm) x 30.5" (775 mm) Weight 110 lbs (50 kg) - Documents
