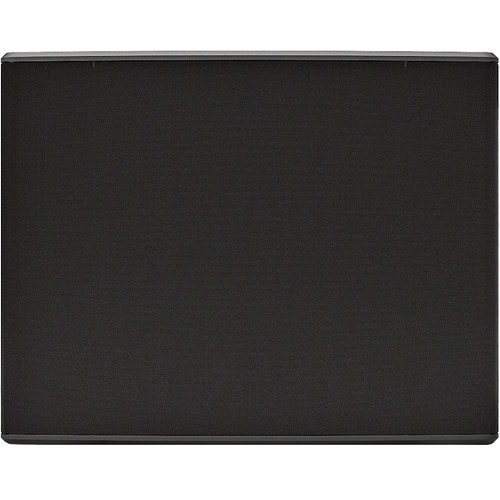

NEXO L20-I 20" Compact Horn-Loaded Fixed Installation Subwoofer
NEXO L20-I 20" Compact Horn-Loaded Fixed Installation Subwoofer for P18 Speaker - Black
NEXO L20-I 20" Compact Horn-Loaded Fixed Installation Subwoofer for P18 Speaker - Black
By NEXO

NEXO L20-I 20" Compact Horn-Loaded Fixed Installation Subwoofer for P18 Speaker - Black

Write a Review
Part #:
L20I
Model #:
L20-I
Availability:

Special Order (Return conditions apply)

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The NEXO L20-I is a compact 20" horn-loaded installation subwoofer in black that delivers powerful low-frequency extension down to 28 Hz with up to 141 dB peak SPL. Built to complement P+ Series systems, it’s an ideal fixed-install partner for the NEXO P18.

Description

NEXO L20-I 20-Inch Black Installation Subwoofer

The L20-I 20" compact horn-loaded fixed installation subwoofer is engineered to deliver massive low-frequency performance in permanent commercial and venue installations. Finished in black, it features a high-excursion 20" driver housed in a lightweight Baltic birch and poplar plywood enclosure, producing deep, controlled bass down to 28 Hz with an impressive 141 dB peak SPL.

Designed specifically for installation environments, the L20-I includes a discreet black fabric-covered grille, threaded inserts for mounting accessories, and a quick-connect push connector for fast, secure wiring. Its horn-loaded, high-efficiency design provides powerful impact with low distortion, making it a perfect solution for extending low-frequency performance in NEXO P+ Series installations, including systems built around the P18.

Features
  • Compact 20" horn-loaded installation subwoofer in black
  • Designed to extend low-frequency output for NEXO P18 and P+ Series systems
  • Deep bass extension down to 28 Hz
  • Delivers up to 141 dB peak SPL output
  • High-excursion 20" driver for strong impact and control
  • Baltic birch and poplar plywood enclosure for strength and reduced weight
  • Black fabric grille for discreet architectural integration
  • Quick-connect push connector for secure installation wiring
  • Threaded inserts for mounting accessory attachment

Specifications
Frequency Response (+6 dB) 28 Hz to 120 Hz
Peak SPL Level (1m) 141 dB Peak
Operating Voltage 80 Vrms (180 Vpeak)
Crossover Frequency 60 Hz, 85 Hz or 120 Hz
Nominal Impedance 4 Ohms
Components 1 x Neodymium 20" 4 Ohms long excursion
Connectors Quick-connect push connector
Rigging Points 1 x universal accessory fit on each side + 1 x M20 thread for Pole Stand on top
Material Custom made bent plywood of Baltic birch and poplar
Finish Black structural paint
Front Finish Fabric covered front grille
Operating Temperature Range 0°C - 40°C (32°F - 104°F)
Storage Temperature Range -20°C - 60°C (-4°F - 140°F)
Dimensions (H x W x D) 23.4" (594 mm) x 29.7" (755 mm) x 35.6" (905 mm)
Weight 130 lbs (59 kg)
