NEXO LS18 18" High Power Cabinet Design Subwoofer

Part #:
LS18
Model #:
LS18
Availability: Special Order Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The NEXO LS18 light, easy-to-handle subwoofer cabinet uses a single 18" excursion driver and is compatible with all NEXO GEO S12 accessories, so it can fly with the S1230 and S1210 line array modules, or anchor a ground-stack of S12 cabinets.

Description

The NEXO LS18 subwoofer cabinet brings new versatility to NEXO GEO S12 line array systems and PS Series cabinets, delivering high SPL at a relatively low cost.

Light and easy-to-handle, the LS18 uses a single 18" excursion driver and is compatible with all GEO S12 accessories, so it can fly with the S1230 and S1210 line array modules, or anchor a ground stack of S12 cabinets. With a steel stand fitting on top of the cabinet, the LS18 also allows for pole mounting of GEO S12 cabinets or NEXO PS15-R2 full-range speakers. LS18 can be flown in tandem with PS15s, which will be of particular interest to the installation sector.

A robust steel fitting on top of the LS18 makes it quick and easy to pole-mount a PS15 cabinet, creating a powerful full-range system for mobile applications. A PS15 cabinet can also be mounted directly on top of the LS18 to provide a powerful drum monitor system.

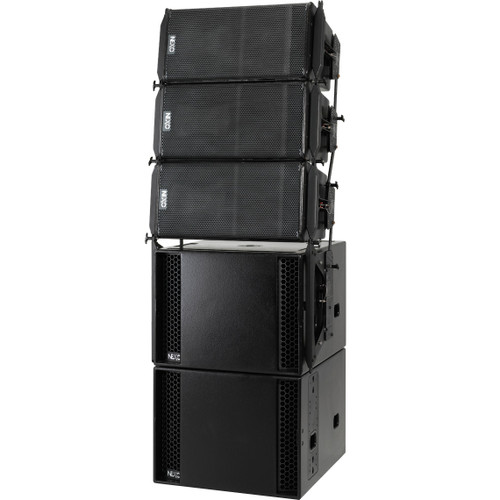

Identical in width to the height of a GEO S12 cabinet, the LS18 is compatible with GEO S12 rigging hardware, making it quick and easy to configure the appropriate scale of ground-stack for any venue.

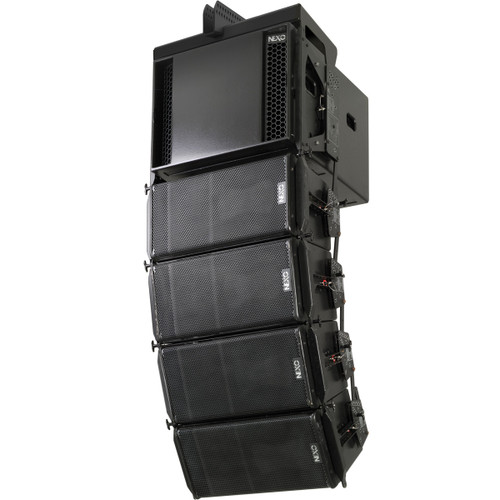

Flown above a series of GEO S12 cabinets, LS18 anchors a discreet and powerful line array that’s perfect for applications in which a clear stage is required, such as houses of worship. A single PS15 cabinet flown beneath an LS18 is an ideal compact and low-profile solution for fixed installations in clubs with a low ceiling height.

Features

  • High power system (137-140dB peak SPL @ 1m)
  • 1 x 18" 4" voice coil long excursion 8 Ω driver
  • Light and easy to handle
  • Integrates with GEO S12 and PS Systems
  • System applications: small to mid-sized tour systems, stadium/arena/auditorium installations, nightclub and music venue installations, houses of worship, corporate AV and presentation systems
  • Baltic birch ply and structured black coating construction
  • Molded dark grey metal grill front finish

Specifications

Usable Range 32Hz - 130 Hz(-6dB)
Nominal Impedance 8 Ω
Components 1 x 18’’ (46 cm) 4’’ voice coil long excursion 8 Ω driver
Connectors 2 x NL4MP Speakon 4 pole
Fittings Handles: 4 metal recessed pockets (2 per side)
Flying points: 2 side plates connecting with external accessories
Stand fittings: internal steel stand fitting on top (35 mm, 1.4") allows pole mounting for PS15 or Geo S12
Dimensions (H x W x D) 20.1” (510 mm) x 26.1” (675 mm) x 30.5” (775 mm)
Weight 122.3 lbs (55.5 kg)
