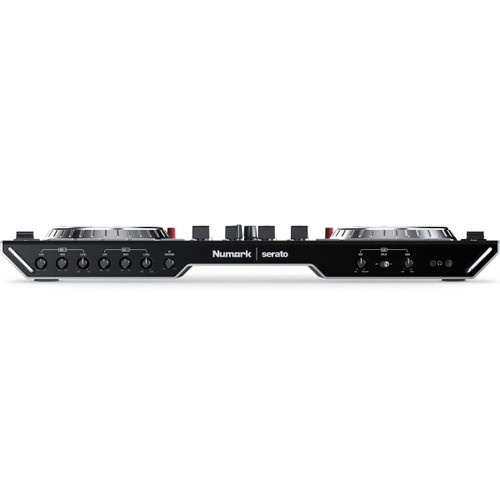

Numark NS6II 4-Channel Premium DJ Controller

Home /
Numark NS6II 4-Channel Premium DJ Controller (Discontinued)

Description

Details

Numark NS6II 4-Channel Premium Standalone DJ Controller with 2 USB Outs and Built-in Hi-Resolution Screens

The Numark NS6II builds on the NS6's amazing legacy of innovation and performance and delivers to you a truly iconic 4-channel DJ controller, now with two USB outs and built-in hi-resolution screens!

Dual USB Outs For DJ Hand-Off

The NS6II DJ controller enables you to connect two laptops simultaneously, connected to Serato DJ for seamless DJ hand-offs. With a push of a button, you and your partner DJ can switch between two laptops and play at the same time between four channels. The possibilities are endless — your creativity has been unleashed!

Built-In Hi-Res Display

Playing to the crowd is key to the success and energy of any event. Maximize the energy and stay connected to the crowd with the built-in full-color 2-inch hi-res displays. You can monitor BPM, platter position, time remaining, pitch adjustment and keylock. Critical information that ticks all the boxes with intuitive actions to keep you focused on the performance. Your DJ senses are on fire as you select the next song in your playlist, all without ever looking at the laptop.

Independent Mixer

In addition to the dual USB outs, the NS6II is a standalone 4-channel mixer to connect turntables and external media devices. You can connect two media devices to the RCA line/phono inputs and switch between them on a dime.

Touch-capacitive frequency knobs (exclusive to Numark), with a simple touch, adjust mid, low and high frequencies during the mix, for the perfect tone. With its audiophile-grade circuitry, the NS6II delivers impeccable 24-bit sound quality without compromise.

Performance Pads

Rubber MPC performance pads give you quick access to hot cues, auto loop/roll, manual loop mode sampler, and slicer. Each function duals-up with sub-functions to give you access to a total of 16 velocity-sensitive pads.

Hot Cue – Set 8 cue points within your DJ software. Secondary function (click button twice) enables hot cue + instant auto loop mode
Auto/Roll - Pressing this button once will enter the auto-looping mode (i.e. 16 bar, 8 bar, etc.). Secondary function (click button twice) enables beat-jumping once auto loop is engaged utilizing parameter keys
Loop Mode – Activate manual loop mode and any saved loops. Secondary function (click button twice) enables a second bank of the Manual/Saved Loops section
8 Pad Sampler – Load custom sound samples such as tags and drops (non-velocity sensitive). Secondary function (click button twice) enables velocity sensitive pads in sampler mode
Slicer – As the track is playing the pad will follow the beat, and when the pad is engaged (rhythmically) beat will stutter per parameter. Secondary function (click button twice) will change the slicer into looping when the pad is engaged temporarily

Pitch Fader

100mm pitch fader gives you full control of tight, seamless blends across 4-channels. On the built-in display, the pitch indication can be monitored without looking at the laptop. The smoothly-resistant long pitch fader is responsive to every tick of the beat.

Software

The full version of Serato DJ comes with the NS6II, and all you have to do is plug and play. NS6II also has an option to upgrade in Serato DJ for the DVS expansion. The DVS expansion allows you to connect external turntables for timecoded vinyl control.

Features

Features

Dual USB ports for DJ handoffs
2-inch color LCD display integrated into each jog wheel
Digital mixer with (2) phono/line inputs that can be mixed directly without software
Comes with Serato DJ (full version)
Touch-capacitive knobs
6-inch multi-function jog wheel with smart learning capacitive technology
4-channel USB Audio
Stereo XLR outputs, Master RCA outputs, Booth RCA Outputs
(2) 1/4" mic inputs
Stand-alone mixer 24-bit, 44.1K audio
USB 2.0
4 in, 4 out with (2) phono preamp
Replaceable crossfader
Roll bar to protect front panel control knobs

Specification

Balanced Master Outputs (XLR)	Frequency Response: 20 Hz – 20 kHz (+0.2 dB) Signal-to-Noise Ratio: 109 dB (A-weighted, max output) THD+N: 0.001% (1 kHz, -1 dBFS) Maximum Output Level: +24 dBu
Unbalanced Master Outputs (RCA)	Frequency Response: 20 Hz – 20 kHz (+0.1 dB) Signal-to-Noise Ratio: 109 dB (A-weighted, max output) THD+N: 0.002% (1 kHz, -1 dBFS) Maximum Output Level: +16 dBV
Unbalanced Booth Outputs (RCA)	Frequency Response: 20 Hz – 20 kHz (+0.1 dB) Signal-to-Noise Ratio: 109 dB (A-weighted, max output) THD+N: 0.004% (1 kHz, -1 dBFS) Maximum Output Level: +16 dBV
Headphone Outputs (Stereo 1/4 in.)	Frequency Response: 20 Hz – 20 kHz (+0.2 dB) Signal-to-Noise Ratio: 104 dB (A-weighted, max output) THD+N: 0.011% (1 kHz, -3 dBu, unloaded) Maximum Output Level: +19 dBu (unloaded) Power Output: 55 mW RMS (per channel into 32Ω)
Line Inputs (Unbalanced RCA)	Frequency Response: 20 Hz – 20 kHz (+0.1 dB) Signal-to-Noise Ratio: 102 dB (A-weighted, max input level) THD+N: 0.002% (1 kHz, +6 dBV, -1 dBFS) Max Input Level: +8 dBV
Phono Inputs (Unbalanced RCA)	Signal-to-Noise Ratio: 93 dB (A-weighted, max input level, 1kHz) Max Input Level: -22 dBV at 1khz
Mic Inputs (Balanced 1/4 in.)	Max Input Level -18 dBu
Dimensions (H x W x D)	2.6" (65.3 mm) x 22.4" (568.5 mm) x 13.8" (349.5 mm)
Weight	9.2 lbs (4.2 kg)
