This cost-effective office speech privacy system with 8 Atlas Sound sound masking speakers and a sound masking generator kit is a highly versatile system designed for medium to large offices and other commercial environments.

Description

Inside the Design

Commercial sound masking systems benefit office environments by minimizing distractions as well as protecting speech privacy. Safeguard private discussions in executive meetings and sensitive conversations in open office spaces by making speech less intelligible with this commercial office sound masking speaker system. This system also helps increase productivity by pleasantly raising the ambient sound level in your environment by emitting just the right amount of acoustically optimized masking noise which can help to reduce noise distractions. This sound masking system is perfect for offices with open ceiling designs, corporate business offices, call centers, and sales floors to protect sensitive information and provide a more pleasant atmosphere.

Sound System Features:

  • Approximately 2000 sq ft of coverage
  • 70V commercial speaker system
  • Selectable pink or white noise sources
  • Designed to reproduce the required spectrum of masking signal into plenum space
  • Suitable for use above suspended ceiling systems or open ceiling space
  • Quick and easy installation
  • Includes chains for suspending speakers from the ceiling

Commercial Office Sound Masking and Speech Privacy System for up to 2,000 SF

This Pro Acoustics designed office sound masking system includes eight Atlas Sound M1000 indirect field sound masking speakers and a GPN1200K sound masking generator kit which consists of a sound masking generator, a rack-mount, and power supply. Also included is 500ft of plenum-rated speaker wire and hanging chains to install the system from the ceiling. This sound masking solution is a highly versatile system designed to accurately reproduce the required spectrum of masking signal for basic sound masking in medium to large offices and other commercial environments.

Features

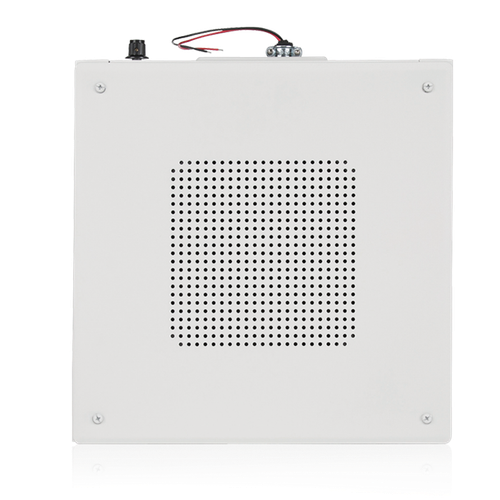

Atlas Sound M1000 8" Sound Masking Speakers:

  • Pre-assembled unit includes 8" dia. loudspeaker, transformer, enclosure, baffle and mounting hardware
  • Labor-saving hardware package – complete with new snap hanger assembly, allows quick and easy installation
  • Innovative input panel includes combination knock-out and strain relief connector to accommodate flexible or rigid conduit
  • Design enables upward, downward, or horizontal orientation
  • 734 in³ enclosure for extended low-frequency response
  • Available in black or white epoxy finishes to blend with a variety of open ceiling plans
  • Suitable for use above suspended ceiling systems or open ceiling spaces approved for use in air handling (plenum ceilings)
  • Safety listed to UL 1480 & UL 2043

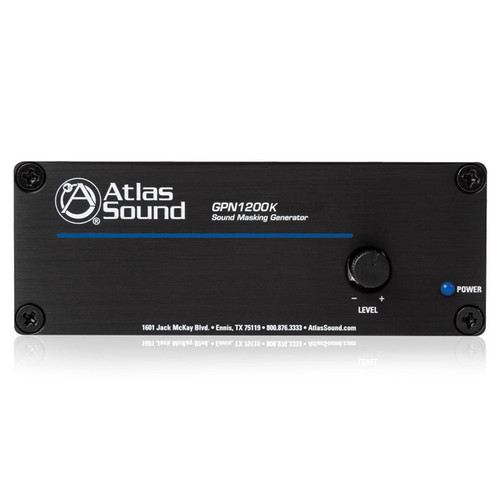

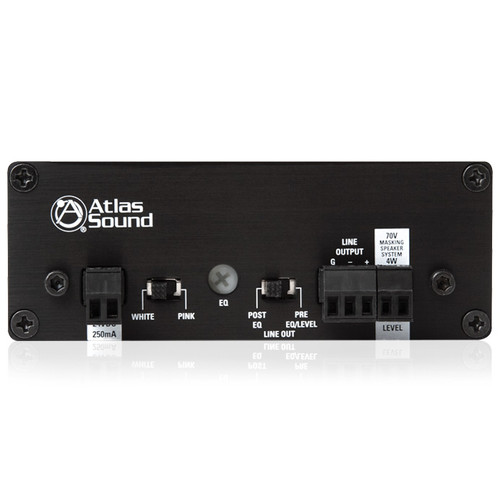

Atlas Sound GPN1200K TSD Sound Masking Generator Kit:

  • TSD-GPN1200 sound masking generator
  • Balanced line output plus 4W, 70.7V output
  • Global input voltage
  • 1RU height
  • Supports up to 4 TSD series modules
  • Adjustable gain and hi-cut filter

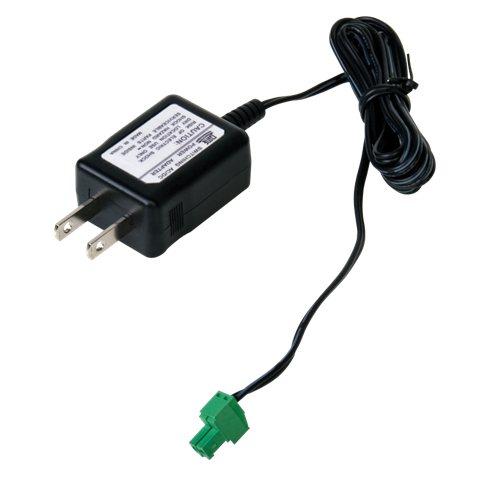

  • TSD-PS24V250MA 24VDC power supply
  • EQ & gain bypass for line output
  • Black brushed aluminum finish
  • TSD-RMK
  • Selectable pink or white noise source
  • Security covers included for all rear panel controls

System Includes

  • (8) Atlas Sound M1000 Sound Masking Speakers
  • (1) Atlas Sound GPN1200K TSD Sound Masking Generator Kit
    • (1) Atlas Sound TSD-GPN1200 Sound Masking Generator
    • (1) TSD-PS24V250MA 24VDC Power Supply
    • (1) TSD-RMK Rackmount
  • (8) Atlas Sound MCHAIN72 72" Hanging Chains for M1000 Speakers

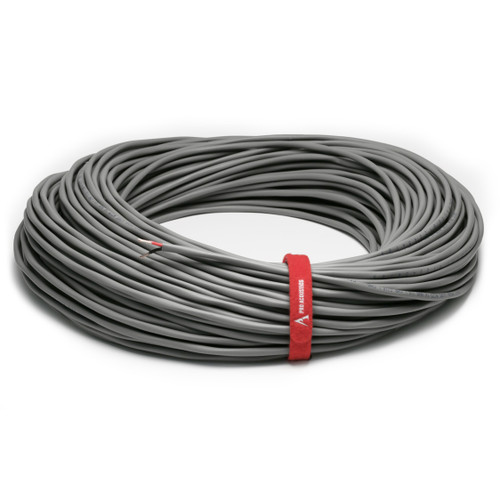

  • (500') West Penn 25224 18/2 Plenum Speaker Wire
