This office sound system package with Bluetooth connectivity will improve the overall atmosphere of your work environment providing high-quality background music throughout your office space and waiting area, up to 5,000 sq ft. Just connect wirelessly to your Bluetooth-enabled device, TV or multi-disc CD player.

Description

Office Sound System Package with 12 Pendant Speakers and 120W Bluetooth Mixer Amplifier

This Bluetooth office sound system will improve the overall atmosphere of your work environment. Studies have shown that playing the right kind of music in your workspace can increase productivity. This Bluetooth office sound system will provide high-quality background music and excellent speech intelligibility throughout any open-ceiling office space and/or waiting area, up to 5,000 sq ft. You can also install in-ceiling with the included tile bridges. With our 7-channel Bluetooth mixer amplifier, you have the flexibility to operate from any audio source such as Pandora, Spotify, Sirius XM radio etc. Just connect wirelessly to your Bluetooth-enabled device, or connect your TV and/or a multi-disc CD player.

System Features:

    • Professional high-performance pendant mount and/or in-ceiling speaker to fit any space
    • 70V commercial sound system
    • 7-Channel mixer amplifier able to add any audio source
    • Bluetooth enabled for wireless connectivity
    • Up to 5,000 sq. ft. of coverage
    • Two wall volume controls for easy access
    • Paging capable by adding a microphone (sold separately) or connecting to your telephone system
    • Easy to install and operate
    • Lifetime technical support

This Bluetooth office speaker package includes twelve Bose FreeSpace DS 16F in-ceiling loudspeakers with tile bridges and pendant mount kits for open-ceiling or in-ceiling installation, our Pure Resonance Audio MA120BT 7-channel 120W Bluetooth commercial mixer amplifier, two Atlas Sound AT100D 100W decora style volume controls with white and ivory plates/knobs to match any decor, and 500ft of speaker wire. Improve your work day and optimize productivity and performance with this great sounding, easy to install Bluetooth sound system. This package can also double as a paging system by adding a microphone or connecting to your telephone system.

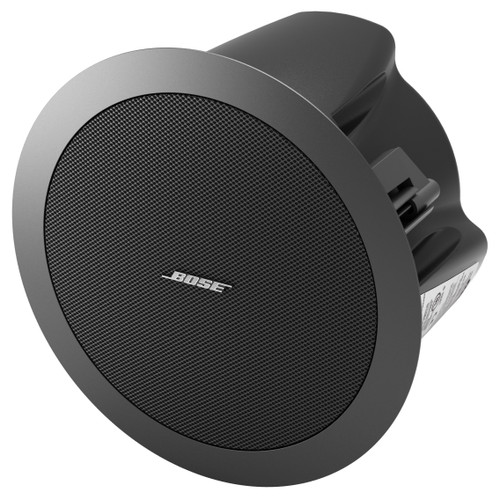

Bose FreeSpace DS 16F In-Ceiling Loudspeakers with Tile Bridges and Pendant Mount Kits

The Bose® FreeSpace DS 16F is the entry-level member of the DS loudspeaker family. It is a high-performance, full-range, flush-mount loudspeaker designed for background music and speech reproduction in a wide range of installed applications. The Bose Professional DS 16F features a wide, even 140° conical pattern and frequency range down to 80 Hz. These 16-watt loudspeakers deliver background music with notable presence and detail as well as clear, natural-sounding speech reproduction. They are well-suited for retail stores, restaurants, hospitality venues, public spaces, offices, meeting rooms, hallways, entrance ways, lobbies, and restrooms. Power settings available are 1, 2, 4, 8, and 16 watts at 70 volts; 2, 4, 8, and 16 watts at 100 volts; and 16 watts at 8 ohms (when referenced to IEC noise for 100 hours). The nominal dispersion shall be 140° conical coverage pattern at -6 dB (average 1 – 4 kHz). The pendant-mount kit allows the speakers to be hung from open ceilings. The input connection consists of a three-terminal barrier strip. The loudspeaker meets numerous standards for combination music and evacuation systems around the world.

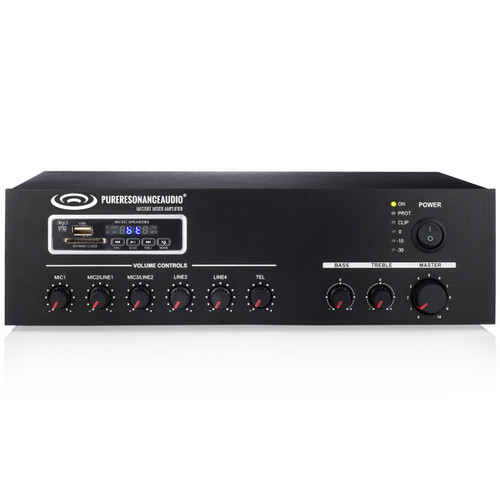

Pure Resonance Audio MA120BT 7-Channel 120W Bluetooth Commercial Mixer Amplifier

This 7-channel mixer-amplifier from Pure Resonance Audio with built-in 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70 Volt, 100 Volt, 8 ohm or 4 ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application in need of background music and general announcements. It is perfect for use in restaurants, retail stores, offices, schools, hospitality, etc. and is equipped with paging and MOH (Music On Hold). The on-board plug-in play MP3 player accepts SD cards and USB thumb drives that can be plugged in on the front panel. The unit includes RCA inputs and RCA line level outputs, a telephone input with VOX priority and a MOH (Music on Hold) output, as well as an XLR input with phantom power. The IR remote for MP3, FM Radio and Bluetooth provides freedom and flexibility allowing full control, even from across the room. This compact public address amplifier also supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or mobile phones, enabling anyone to walk-in and link up with their Bluetooth Wireless Connection to instantly play music or any sound source file.

Atlas Sound AT100D 70V 100W Decora Plate Wall Mounted Volume Control

The Atlas Sound AT100D decora plate mounted attenuator is part of a high-quality auto transformer series that provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.

This system was designed by our talented Pro Acoustics engineers and can easily be customized to meet your specific needs and budget. Buy confidently with our lifetime tech support included with every purchase. Call us today! 1-888-256-4112

Features

Bose FreeSpace DS 16F Loudspeakers:

  • Full-range ceiling loudspeaker with a single 2.25" (57 mm) driver in a ported enclosure to deliver a 140° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications
  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
  • Can be combined with either surface- or flush-mount FreeSpace 3 Acoustimass® module for extended bass response
  • Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille

Pure Resonance Audio MA120BT 7-Channel 120W Bluetooth Commercial Mixer Amplifier:

  • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
  • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
  • MP3 Player, FM Radio & Bluetooth (with IR remote control)
  • USB and SD inputs on front panel
  • Power output rating 120 Watts
  • Built-in 70V/100V transformer
  • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
  • Mic 1 of balanced XLR input (with phantom power)
  • Mic 2-3 microphone or line switchable
  • Line 1-2 input of RCA inputs
  • DIP switches for Mic/Line, phantom power and microphone priority
  • Unbalanced 6.3 mm phone jack input
  • One RCA line output (0.775 line level 0 dBV)
  • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
  • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
  • Short-circuit, clip, overload and high temp protection
  • 24 VDC Emergency backup supply
  • 115V 60 Hz & 24V DC both operation system

Atlas Sound AT100D 70V 100W Decora Plate Wall Mounted Volume Control:

  • Attractive alternative to commercial series attenuators
  • Mount into most 1-gang E.O. boxes
  • UL Listed
  • White and ivory plastic plates with matching skirted knobs in decora style

DOCUMENTS

System Includes

  • (2) Bose FreeSpace DS 16F Contractor 6-Packs
    • (12) Bose FreeSpace DS 16F In-Ceiling Loudspeakers

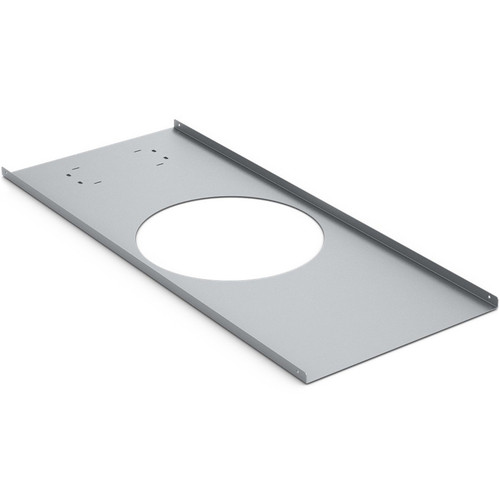

    • (12) Model 16/DS 16F Tile Bridges
  • (12) Bose FreeSpace DS 16F Pendant-Mount Kits
  • (1) Pure Resonance Audio MA120BT 7-Channel 120W Bluetooth Commercial Mixer Amplifier

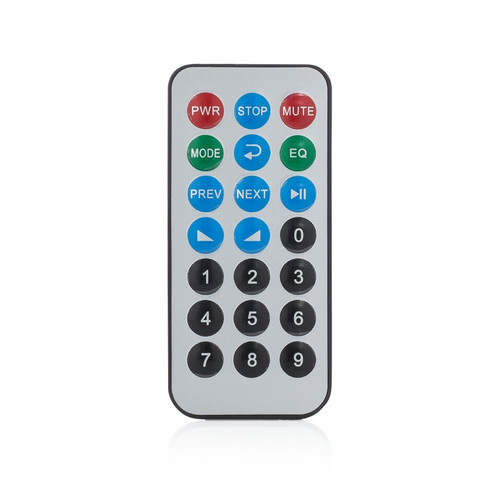

    • (1) IR Remote Control
    • (1) Power Cord
  • (2) Atlas Sound AT100D 70V 100W Decora Plate Wall Mounted Volume Controls

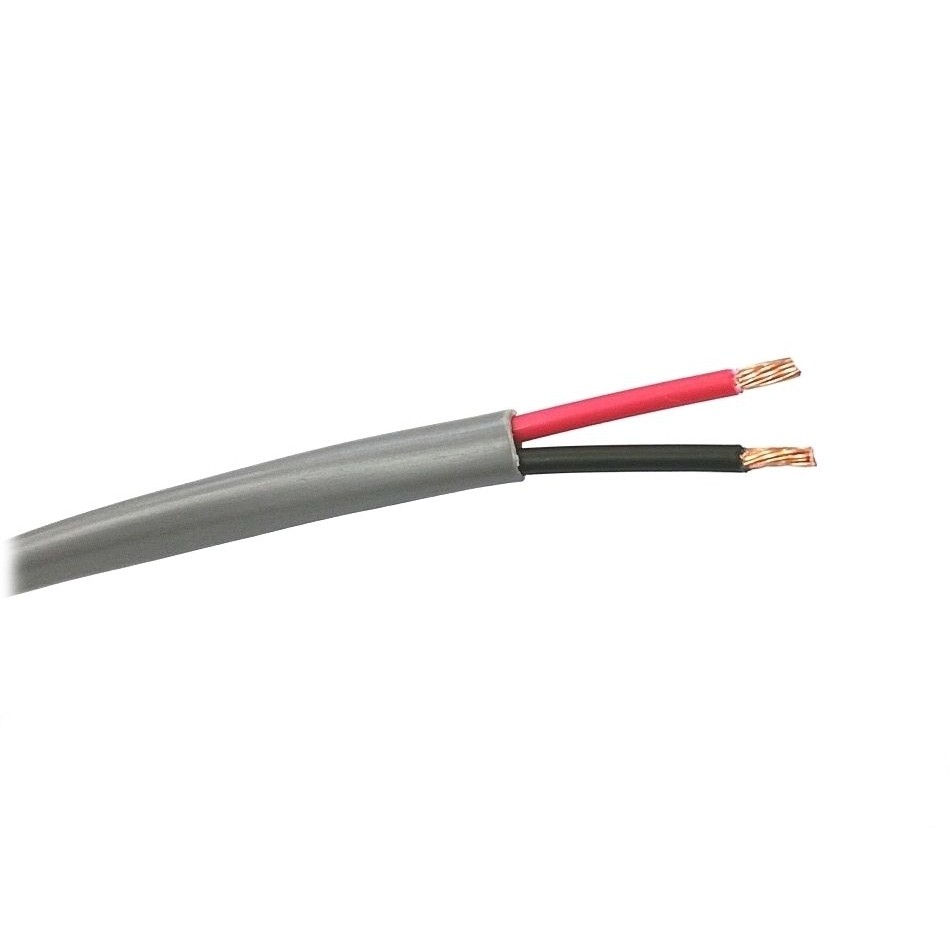

  • (500') West Penn 225 16/2 Audio Speaker Wire
