On-Stage Stands DB500 Passive DI Box

Part #:

609507

Model #:

DB500

Current Stock:

MSRP: $83.99

$49.95

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The On-Stage Stands DB500 passive DI box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power.

Description

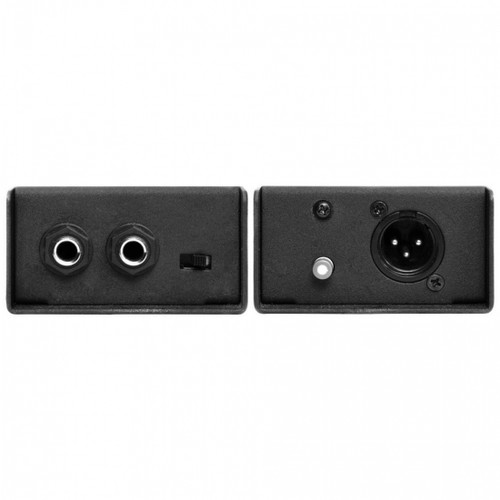

On-Stage Stands DB500 Passive DI Box

The DB500 passive DI box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -20 dB or -40 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, and a throughput connector to pass unaltered signal to a stage amp. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Features

Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
Output signal can be sent via a long cable to a mixer or PA system without frequency loss
Passive circuit does not require a power supply or batteries
High-quality transformer for low distortion and an isolated signal path

Specifications

Applications	Acoustic guitars, bass guitars, keyboards, and more
Inputs	1/4"
Output	XLR
Power	Passive/not required
Pad	20dB, 40dB, Ground Lift: Yes
Input Impedence	350K Ohms
Output Impedence	80 Ohms
Construction	Metal
Dimensions (H x W x D)	1.38" (35.05 mm) x 4.75" (120.65 mm) x 2.88" (73 mm)
Weight	0.5 lbs (0.23 kg)
