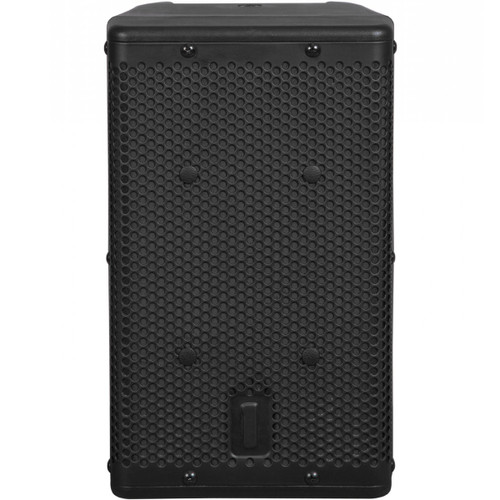

One Systems 106.HTH 2-Way 6.5" Direct Weather Small-Format Loudspeaker - Black

Part #:
106.HTH
Model #:
106.HTH-BLACK
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The One Systems 106.HTH provides an unbeatable combination of excellent sound quality, output-per-size, and comprehensive direct-weather performance. The 106.HTH can be used anywhere outdoors - including on ships or near ocean applications.

Description

One Systems 106.HTH 2-Way 6.5" Direct Weather Small-Format Loudspeaker

The 106.HTH provides an unbeatable combination of excellent sound quality, output-per-size, and comprehensive direct-weather performance. The 106.HTH can be used anywhere outdoors - including on ships or near ocean applications. Unlike typical small-format speakers, the 106.HTH is equipped with a small-format compression driver coupled to a 110 x 70-degree constant-directivity horn. This horn / driver delivers excellent vocal intelligibility, smooth response, and good coverage. Its 6.5" woofer features a large-sized 1.75" voice coil for extended bandwidth and power handling without needing performance-degrading passive protection. The system's 316 marine-grade stainless steel U-Bracket, enclosure reinforcements and its HYBRID stainless steel grille with marine-capable coating ensure extraordinary corrosion resistance and long life. The 106.HTH is a high-performance solution for demanding applications where space is limited. It can be powered Lo-Z (8 ohm) or Hi-Z (70.7 – 100 volts with taps at 50, 25 and 12.5W). The impedance selection is made using separate barrier strips for low and high impedance connections, which provides better reliability than switches.

Features

  • Marine-grade (316) stainless steel rigging and structural support
  • Easily configurable Hi Z (50W) multi-tap or Lo Z (8-ohm) operation
  • Combined 70.7Vrms or 100Vrms operation
  • Marine-grade (316) stainless steel U-bracket included
  • No performance degrading or dynamics limiting passive protection devices
  • 100W continuous, 400W peak power handling in the Lo Z mode
  • IEC 529 IP 56 ingress protection

Specifications

Frequency Response 80Hz – 20,000Hz
Coverage Pattern 110 H X 70 V
Crossover Frequency 3000 Hz
System Sensitivity (1 Watt / 1 Meter) 89dB
Power Handling 100W continuous
200W program
400W peak
Input Impedance (Lo Z) 8-ohms
Input Taps (Hi Z) 50/25/12.5W
Dimensions (H x W x D) 12.3" (312 mm) x 7.3" (185 mm) x 8.5" (217.1 mm)
Weight 14.6 lbs (6.5 kg)
