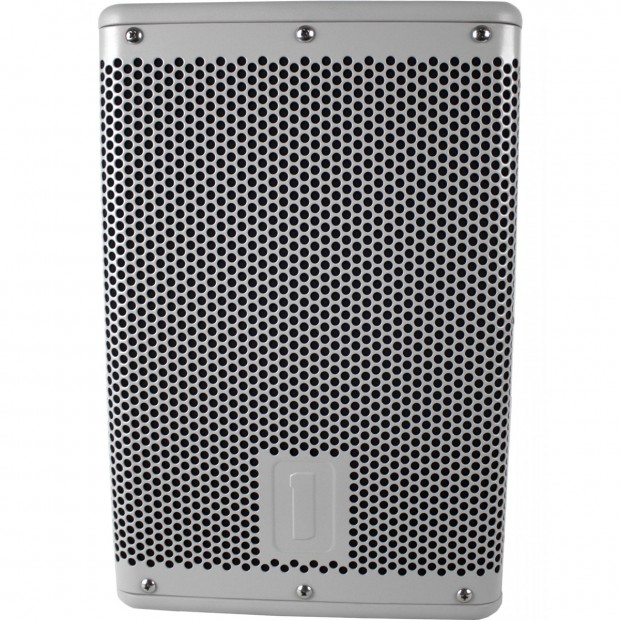

One Systems 108.STC 2-Way 8" Direct Weather Coaxial Loudspeaker
The One Systems 108.STC is an 8" coaxial loudspeaker designed for general-purpose use indoors or for inland environments outdoors. The 108.STC's coaxial design provides true point-source acoustic radiation from its extremely compact enclosure. The 108.STC is installer-configurable for Lo-Z (8 ohm) or Hi-Z (70.7 or 100 volt) use. The 108.STC utilizes a small-format, neodymium-powered compression driver that is coupled to the woofer using a "through-the-pole-piece" design that delivers 70-degree x 70-degree coverage that permits the enclosure to be oriented horizontally or vertically. The 108.STC uses stainless steel for all its rigging points that provide compatibility with One Systems' rigging accessories such as the PM3.M pole mount or PT38.M pan / tilt brackets for installation flexibility. The 108.STC's U-Bracket and its grille are made from structural steel with highly durable dual-layer, zinc-rich powder coating.
| Frequency Response | 70Hz-20kHz |
|---|---|
| Coverage Pattern | 70 Conical |
| Crossover Frequency | 1.5kHz |
| System Sensitivity 1w/1m | 89dB |
| Power Handling | 150W |
| Input Impedance (Lo Z) | 8 |
| Input Taps (Hi Z) | 150/75/37.5W |
| Dimensions (H x W x D) | 13.8" (350 mm) x 9.2" (233.2 mm) x 10.7" (271.4 mm) |
| Weight | 18.5 lbs (8.4 kg) |
