Open Architecture Multi-Zone Ceiling Sound System with Community Speakers - Up to 15,000 SF
This complete sound system is specifically designed for open architecture ceilings where a stylish pendant form factor is desired. This commercial sound system includes eight pendant mount speakers with wide consistent dispersion and four wall mount speakers to ensure that every space is filled with high-quality music and paging even in the most challenging spaces. This system also features a multi-zone mixer and a Bluetooth and CD media player to better adapt to a wide range of open ceiling applications such as warehouses, breweries, hospitality venues, large gyms and more.
Community DP8 8" High Output High-Quality 2-Way Pendant Mount Loudspeakers
The D series Distributed Design DP8 is a high performance 8" pendant loudspeaker designed for open architecture spaces or any location where a stylish pendant form factor is desired. Featuring high power handling, high sensitivity and realistic sound reproduction, the DP8 can be used in a wide variety of speech and music applications. It is equipped with a built-in autoformer, allowing the full loudspeaker output to be realized with 70V or 100V distribution lines. Uniform voicing means that the DP8 can be combined with other D series ceiling and surface mount models without compromising consistency from zone to zone. The proprietary Tru-Phase™ waveguide and perfectly centered driver produce a consistently wide conical polar response up to 16 kHz. An easy-access selector switch is conveniently located on the face of the loudspeaker for selectable 8 ohm or 70V/100V operation, while an integrated rear cover hides all wiring and hanging hardware for an aesthetically pleasing installation. The powerful and versatile D series DP8 provides high-quality paging and musical performance suitable for retail environments, restaurants, resorts, and numerous other applications where the importance of sonic quality cannot be ignored.
Community CS6 6.5" 2 Way Surface Mount Loudspeakers
The Community CS6 6.5 inch Two Way Surface Mount Loudspeaker incorporates the same full-range loudspeaker (as the C6) in a black or white paintable ABS surface mount enclosure. It also has a more focused dispersion than the smaller CS4. It contains a proprietary Tru-Phase™ waveguide that produces a consistently wide conical polar response up to 16 kHz. The CS6 features a genuine coaxial design using separate magnets for the LF and HF drivers for reduced distortion and high sensitivity, thereby permitting up to 3 dB greater output level while requiring up to half the amplification power of competing products. Easily outperforming loudspeakers of a larger size format, the CS6 provides high power handling, high sensitivity and realistic sound reproduction. This loudspeaker is equipped with a built-in autoformer, allowing large numbers of distributed loudspeakers to be powered from a 70V or 100V amplifier output. A convenient front-accessible power tap switch is hidden behind a rotatable logo. Installation is simple and flexible using the included multi-angle pan-tilt bracket which allows low profile mounting and precise positioning of the enclosure in either horizontal or vertical orientation.

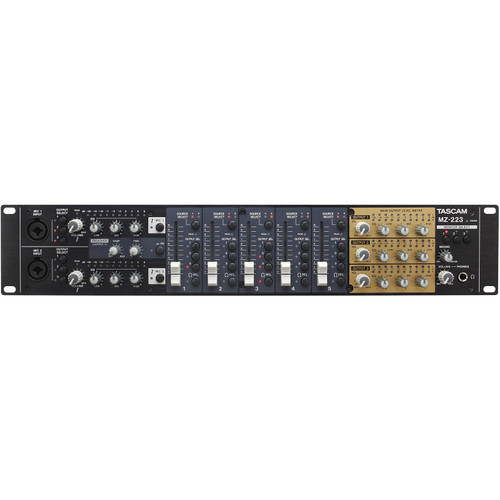

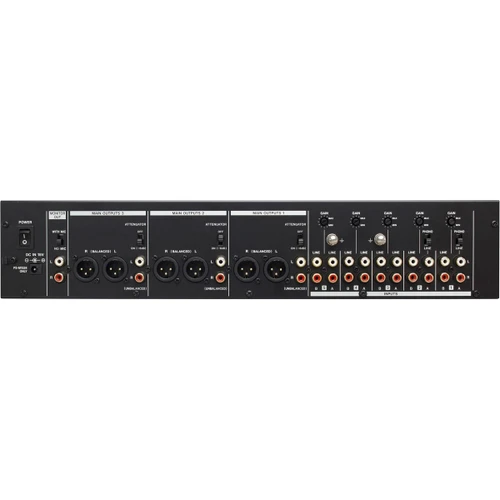

Tascam MZ-223 Industrial Grade Multi-Channel Multi-Zone Mixer
The Tascam MZ-223 is a powerful multi-channel, multi-zone mixer housed in a compact 2U design, The MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio. The independent three-zone outputs each have a combination of balanced professional XLR or RCA unbalanced configurations for long runs or connection to common residential power amplifiers or speakers. This flexibility, for example, allows music to be routed to zone one, ambient noise or natural sounds to zone two, a separate music track or a voice announcement can be routed to zone three, while the convenient "talkover" function will automatically lower any mixed channel source so the microphone can be heard while speaking.

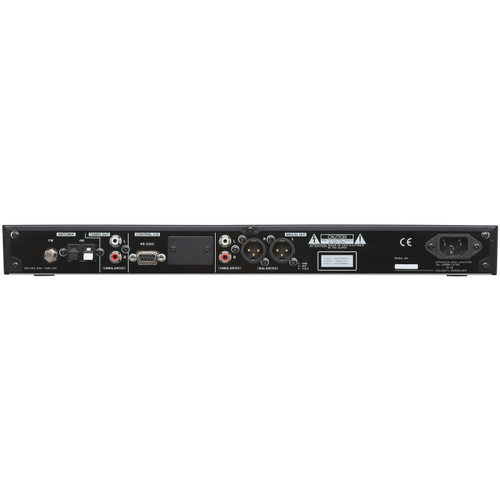

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
Ideal for a variety of installations, the CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is possible. Professional audio connections are provided in the form of XLR balanced outputs, RCA unbalanced outputs, a 2nd set of RCA outputs dedicated to the AM/FM audio, an 1/8" auxiliary input for utilizing audio from any source, and headphones for quick and silent monitoring and confirmation of operation. The CD-400U has also been designed for full-proof and automatic operation with the inclusion of a "panel lock" function which disables the panel buttons, and an automatic playback function which starts playback upon power up. Lastly, to ensure seamless integration into more complex systems, external control is possible using the standard RS - 232C terminal.

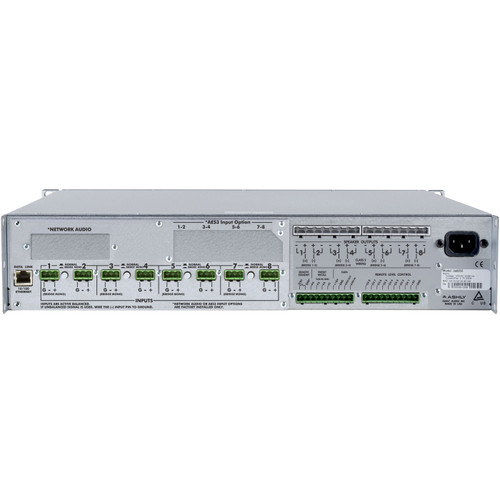

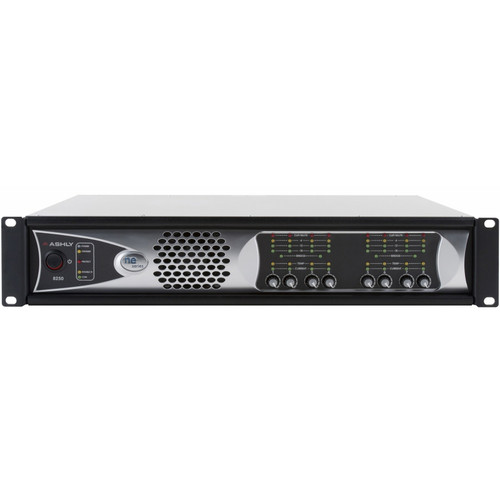

Ashly Audio ne8250.70 Network-Enabled 8-Channel Power Amplifier 8 x 250W @ 70V
The multi-channel ne (Networked-Enabled) Series Amplifiers are uniquely designed around an energy efficient Class-D platform with a switching power supply. This eight-channel power amplifier delivers a minimum power of 150 Watts RMS per channel into 8 Ohm loads and 250 Watts RMS per channel into 4 Ohm loads with all channels operating. When switched into bridged-mono mode, channels 1+2 or 3+4 or 5+6 or 7+8 of the amplifier delivers at least 500 Watts RMS into an 8 Ohm load. The power amplifier includes Euroblock input connectors, Euroblock output connectors, and balanced analog inputs. The power amplifier has remote standby for power up, DC remote level control and contact closure preset recall. It shall have Ethernet control and monitoring of power functions, level, mute, polarity, temperature, current, and amplifier fault conditions. Frequency response is 20Hz to 20kHz ±1.0dB. Signal-to-Noise is greater than 105dB unweighted and SMPTE intermodulation distortion shall be less than 0.5% into an 8 Ohm load, 10dB below rated output. The front panel provides the status of power, standby, protect, power switch disable, signal level, bridge, over-temperature, over-current, and Ethernet communication. The power amplifier is capable of having factory installed AES3, CobraNet®, or Dante® interface options with the addition of two 4-Channel DAC cards.

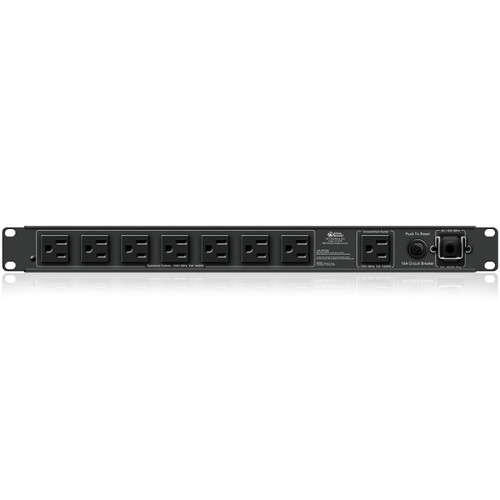

Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit
The AP-S15LA features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies. Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15LA's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15LA includes a pull out from lamp, 12 foot removable IEC cord with retainer.
