Open Architecture Ceiling Sound System with 12 Pendant Speakers - Up to 12,000 SF
This open ceiling sound system is great for open architecture layouts up to 12,000 sq ft with high ceiling designs such as gymnasiums, department stores, malls, airports or any open floor designs with high or vaulted ceilings. These pendant mount loudspeakers and subs provide clear and intelligible wide-coverage audio for indoor or outdoor focused performance. The 6-input mixer amplifier allows you to provide background or foreground music with the option for paging. The Bluetooth media player allows you to play your favorite music from any Bluetooth enabled device.

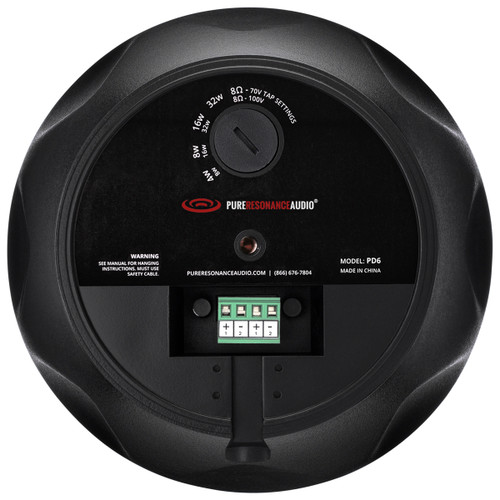

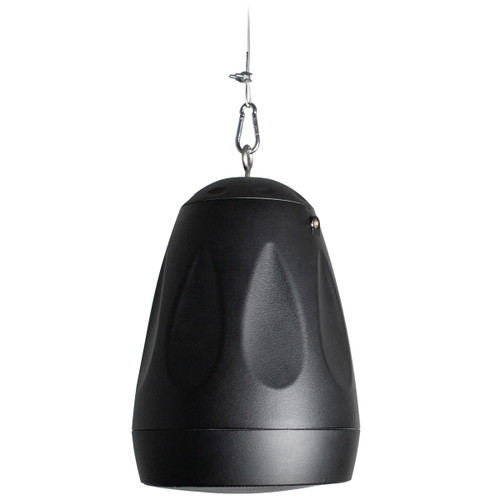

Pure Resonance Audio PD6 6.5" Indoor/Outdoor 70V Commercial Pendant Speakers
Designed to meet the needs of open-ceiling commercial applications, the Pure Resonance Audio PD6 full-range coaxial pendant mount loudspeaker is easy to install and high powered producing clear intelligible audio in spaces with exposed structure open-architecture ceilings. The acoustically matched 6.5" and 1" tweeter maximize the PD6's performance while minimizing its overall footprint. The down-firing design of the driver directs the high fidelity sound for an evenly distributed 150° wide coverage pattern. A tough weather-resistant construction with treated drivers and two-layer, powder-coated grilles bring high-performance audio and vocal clarity to both indoor and outdoor pendant-mount sound systems. The 2-way pendant-mount loudspeaker provides superb sound reproduction for exposed structure or open plenum ceiling venues where a stylish contemporary speaker blends well with the architectural design.

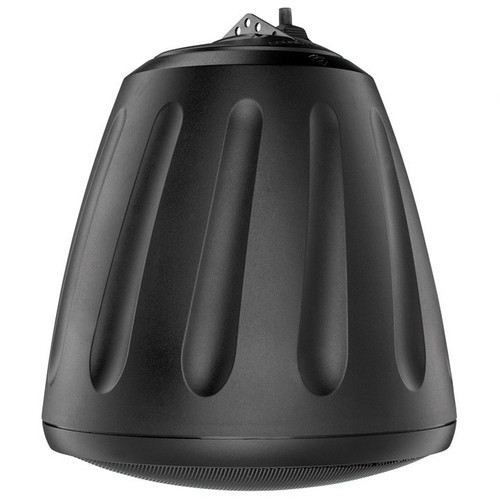

SoundTube RS1001i-II-T 10" Coaxial Open-Ceiling Pendant Subwoofers
The SoundTube RS1001i-II-T open ceiling subwoofer has one 10 inch polypropylene cone with a butyl rubber surround attached to a reinforced baffle. The baffle-mounted, flared and tuned ports are made for maximum efficiency and frequency response. The high-output and maximum efficiency with an accentuated 70 Hz peak to maximize listener's low-frequency experience. The 150-watt, low insertion-loss transformer with an easy-access, five-position tap switch for 25, 70.7, 100V and transformer bypass positions. It includes UL listed hanging hardware with high-quality cables and integrated SpeedClamp self-locking wire clamp for fast, easy and secure installation. It is UL 1480 (UEAY) and CE-approved and the hanging hardware is UL 2239-approved also. Accessories included are the hanging hardware, Euroblock connector, and terminal weather boot.

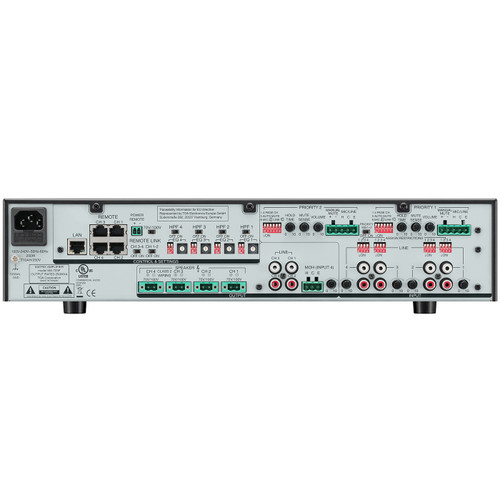

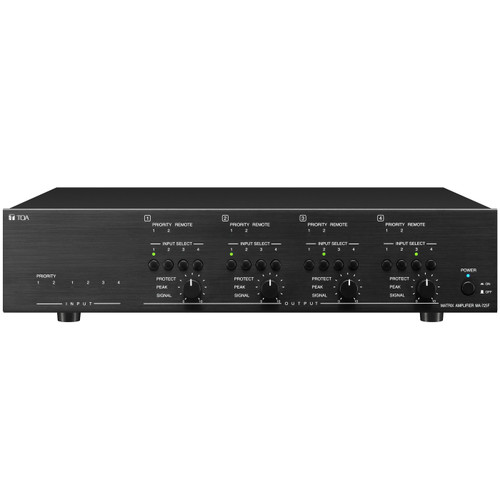

TOA MA-725F 6-Input Matrix Mixer Amplifier with 4 x 250W @ 70V
The TOA MA-725F-AM Matrix Amplifier is developed from years of experience providing mixer-amplifiers for the retail industry (with a client list that’s a virtual "who’s who" of retail) and with the cooperation of some of its top players, the MA-725F-AM is designed to address the demand for a simpler and more cost-effective, mid-level background music and paging systems needing higher power with multiple zones. Just as advanced as some of its high-priced kin, but without the complicated setup or programming required by many other solutions. At its core, the MA-725F-AM is a 6-input matrix mixer: 4 of its inputs are configured for BGM or other line-level sources, while two balanced inputs are designated for priority sources, such as paging mics or message players. This is coupled in a single chassis with a 4 x 250W (@70 or 100V) Class D amplifier, capable of driving large speaker complements with maximum efficiency. A totally digital product sporting 24Bit/48kHz digital sound quality, its simple user-interface belies its advanced inner workings. The only controls any user needs to access are the front panel source select buttons and four output level (zone) controls. All other controls are placed on the rear panel to prevent unauthorized tampering. An optional wall control (WP-700-AM) can be connected via a single CAT5 cable to each of the four output channels, allowing access to volume and source select.

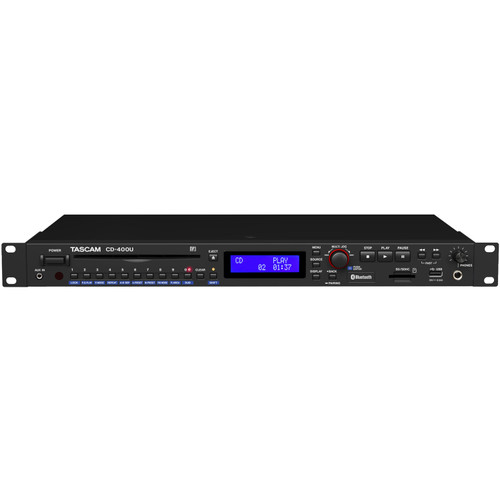

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
Ideal for a variety of installations, the CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is possible. Professional audio connections are provided in the form of XLR balanced outputs, RCA unbalanced outputs, a 2nd set of RCA outputs dedicated to the AM/FM audio, a 1/8" auxiliary input for utilizing audio from any source, and headphones for quick and silent monitoring and confirmation of operation. The CD-400U has also been designed for full-proof and automatic operation with the inclusion of a "panel lock" function, which disables the panel buttons, and an automatic playback function which starts playback upon power up.
AtlasIED AP-S15A 15A Power Conditioner and Distribution Unit
The AP-S15A features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies. Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense, with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15A's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15A includes a 12-foot removable IEC cord witha retainer.
TOA WP-700-AM Wall Remote Volume Control Panel
The WP-700-AM is a wall remote control panel, designed to remotely control MA-725F (or MM-700F) matrix mixer amplifiers.
