Inside the Design
This chain store audio system is designed specifically for open ceiling applications where paging and background music are required. Background music is critical to the success of your retail business, with two volume controls and a paging microphone this sound system is great for department stores, strip malls, outlet stores, chain stores, auto dealerships or any retail applications with an open ceiling floor plan.
Sound System Features:
- Designed specifically for open ceiling applications where paging and BGM (background music) are required
- Six input channel mixer amplifier designed for distributed business paging and background music (BGM)
- Features music on hold (MOH) and a patent pending automatic system test, Push Here Diagnostic® (PHD) designed to check the connected loudspeaker lines for wiring and impedance errors
- The PM-660U features a cardioid pick-up pattern that is uniform over the entire frequency range

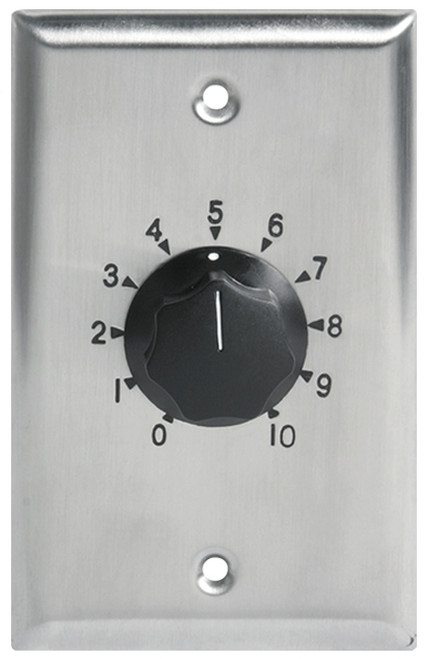

- AT100 volume controls provide the advantages of excellent frequency response, low insertion loss and reliable performance
About the System Components
SoundTube RS600i Open-Ceiling Pendant Speakers
The SoundTube RS600i 6.5-inch open ceiling speaker has one 6.5 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. It includes UL-listed hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking cable grip for fast, easy and secure installation. It also includes a Euroblock connector and terminal weather boot. The patented ZeroReflection enclosure technology is great for optimal sound reproduction and cabinet rigidity. Its easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. The steel grille with a protective powder-coated finish for lasting durability.
AtlasIED AA200PHD 6-Input Mixer Amplifier
The AA200PHD is a six input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and two stereo line inputs, the AA200PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. What Sets the AAPHD Series Apart? The AA200PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD). The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8½, and the loudspeaker wire is free from shorts.

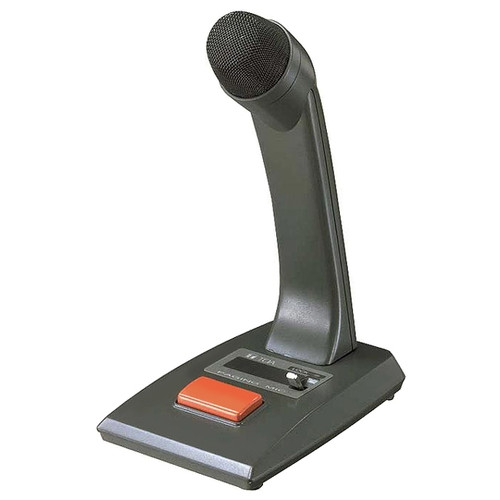

TOA PM-660U Desktop Paging Microphone
TOA's PM-660U is an elegantly styled, compact desk microphone for use in public address, paging and radio communication systems. Ideal applications include restaurants, offices, warehouses, transportation terminals, dispatch centers and entertainment facilities. Its smooth, natural response provides high-quality voice reproduction and excellent articulation to enhance the overall performance of your system. Compact and lightweight, the PM-660U requires a minimum of desk or counter space and is easy to handle. To significantly reduce background noise and feed-back, the PM-660U features a cardioid pick-up pattern that is uniform over the entire frequency range. The dynamic microphone element has a 600 ohm balanced output and the microphone is supplied with an attached 8.2', four-conductor cable with stripped wire ends.
