AtlasIED WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic/Line/Bluetooth Mixer
with WTSD-COVER All-Weather and Security Cover

With this indoor outdoor wall mount Bluetooth mixer package you can conveniently add remote access to your existing sound system. Whether it's installed on the outdoor patio of a restaurant or the wall of your school gymnasium, the possibilities are endless. Easily plug in a wired or wireless microphone system, laptop, tablet, and other devices or just connect your Bluetooth-enabled device to stream music wirelessly. Ideal for hospitality venues, hotels and resorts, restaurants, bars and breweries, gymnasiums and sports venues, fitness centers, Churches and Houses of Worship, retail stores and more.

Applications:

• Indoor / Outdoor Sports Complexes
• Schools - Gymnasiums, Rally Areas, Sport Venues
• Hospitality - Restaurants, Bars and Breweries, Hotel/Resorts, Ballrooms
• Community Multi-Use Facilities, Churches, and House of Worship
• Retail Stores
• Industrial Facilities

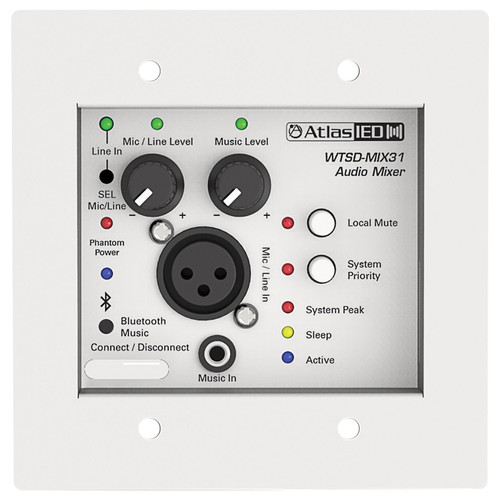

AtlasIED WTSD-MIX31K

The WTSD-MIX31K is a 3x1 Mic/line/Aux/Bluetooth analog mixer that features a balanced microphone/line input and an auxiliary 3.5 mm and Bluetooth summed input with a balanced line output. The WTSD-MIX31K utilizes commercial grade Bluetooth technology featuring ultra-low noise levels, long range connectivity, no auto-connect and a quick disconnect bump feature. Selection between mic or line level for the XLR input is done via front panel switch, accessed thru a pinhole. The high gain mic inputs incorporate user enabled phantom power for condenser microphones and a 125Hz low cut filter to eliminate unwanted low frequency interferences. A local mute button mutes output to the bus and a system priority button can mute building wide BGM systems to isolate the room. An adjustable VOX feature allows for AUX input background audio to be muted when announcing is present. The AUX input is a stereo 3.5mm jack and is electronically summed to achieve the best audio performance. Separate level controls for each input provide control for the audio mix needed. The WTSD-MIX31K can be converted into Dante®Digital Network audio when interfaced with the optional AtlasIED TSD-DAC2i converter.

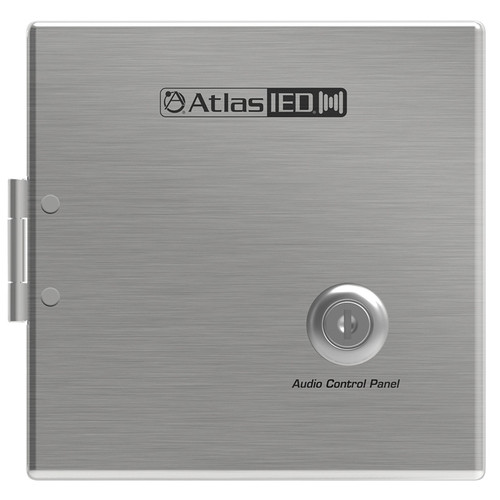

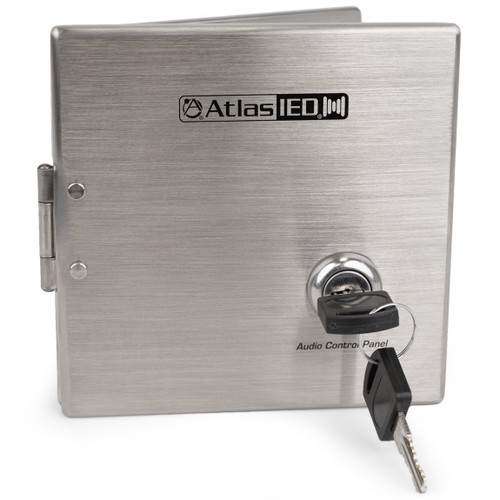

AtlasIED WTSD-COVER

The WTSD-COVER is an accessory designed to work with WTSD wall plates including the WTSD-MIX31K, WTSD-MIX41K and WTSD-XLR4. Constructed of high grade stainless steel, the WTSD-COVER allows a WTSD wall plate to be installed in both indoor and outdoor locations where weather or water might be an issue. The unit includes a rubber gasket that protects the internal hardware when the cover is closed. Additionally, an integrated keyed lock enhances security and prevents unauthorized access to the hardware when not in use.

Atlas Sound WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer:

• Indoor/outdoor use
• XLR balanced mic or line input with individual level controls
• 3.5 mm stereo actively summed input with level control
• Commercial grade Bluetooth input with level control
• Fits most 2-gang boxes
• Uses industry-standard Cat5 or Cat6 cable
• High gain balanced line output for applications up to 400ft
• 120Hz/12dB low cut filter for mic/line
• Local mute switch
• Remote trigger output for remote amplifier turn on
• System priority mute function
• Input signal and peak indicators
• Energy-saving auto-sleep mode



Atlas Sound WTSD-COVER All-Weather Security Cover with Lock and Keys:

• Stainless steel construction
• Integrated rubber gasket
• Integrated keyed lock

WTSD-MIX31 Data Sheet

WTSD-COVER Data Sheet

• (1) Atlas Sound WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer
• (1) Atlas Sound WTSD-COVER All-Weather Security Cover with Lock and Keys

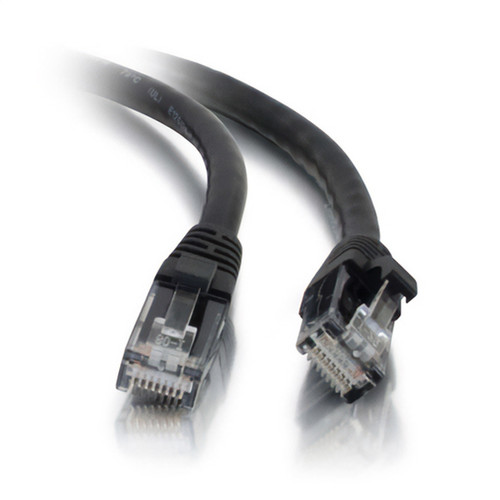

• (50') C2G 28696 Cat5e Snagless Shielded (STP) Ethernet Network Patch Cable
• (50') West Penn 291 22/2 Non-Plenum Audio Wire
