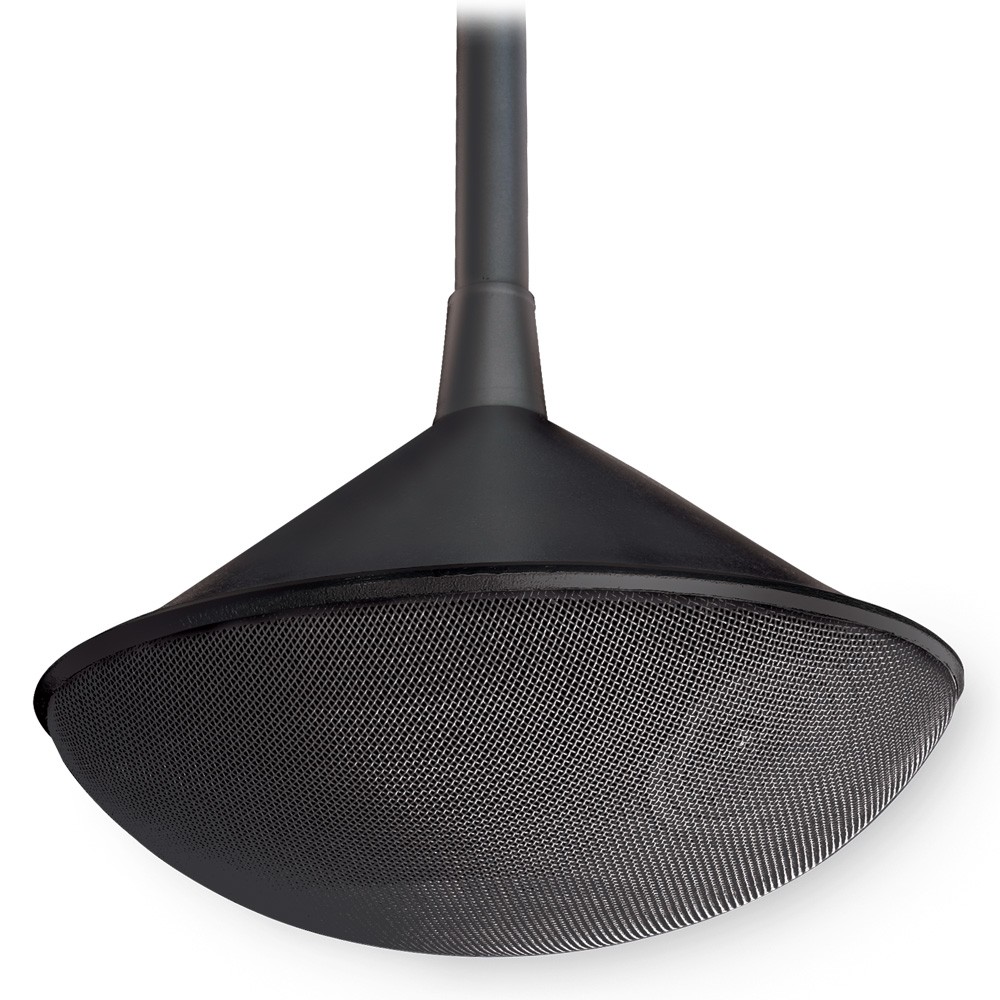

OWI M6750 Mercury Pendant Speaker (Discontinued)

Description

Details

The M6750 is a 70 Volt/8 Ohm combination. One 6.5-inch woofer, four each 2.5" midrange tweeters, a 1-inch tweeter and four bass ports deliver dynamic 360° sound with full 180° dispersion. 100W maximum power at 8 ohms and 20-50W transformer taps. Easy installation in high ceilings. Can be installed either fixed or free hanging. Mercury speakers come in black and white.

Features

Features

70 Volt/8 Ohm combination
Dynamic 360° sound / 180° dispersion
One 6.5" woofer, four each 2.5" midrange tweeters, one 1" tweeter, four bass ports
100W max power at 8 ohms
20-50W taps
Easy installation including high-ceiling applications
Fixed or free hanging
Available in black or white

Specification

Description	1 ea. 6.5" Polypropylene woofer 4 ea. 2.5" Midrange 1 ea. 1" Tweeter 4 Bass Ports
Covered Outdoors	Yes
Impedance	8Ω and 70V Combination
Sensitivity (1W/1M)	90 dB
Max Power @ 8Ω	100W
Max Power	50 W
Nominal Power	20, 30, 40, 50W
Frequency Response	65 Hz-20 kHz
Crossover	12 dB @ 4 kHz and 7 kHz (3-Way)
Dispersion	360° H x 180° V
Woofer Size	6.5" – 1 Each
Woofer Material	Paper
Midrange Size	2.5" – 4 Each
Midrange Material	Paper
Tweeter Size	1"
Tweeter Material	Silk
Bass Ports	4 Each
Enclosure	Polyethylene
Grill Material	Powder Coated Mesh Wire
Colors	Black, White
Mounting Hardware	1.2" Dia. X 18" PVC (Included)
Mount Hardware Option	Safety Cable (Not Included)
Paintable	No
Dimensions (Dia x H)	15" (381 mm) x 10" (254)
Weight (Unit Only)	9.5 lbs (4.31 kg)
Total Weight	13.6 lbs (6.17 kg)
