Cambridge Qt Emitters Sound Masking Speakers

Patient Privacy System with 36 Cambridge Ceiling Qt Emitters and Qt X 300D 3-Zone White Noise Generator with Dante for up to 3600SF

Back of Cambridge Qt Emitters Sound Masking Speakers

By Cambridge

Patient Privacy System with 36 Cambridge Ceiling Qt Emitters and Qt X 300D 3-Zone White Noise Generator with Dante for up to 3600SF

Name: Patient Privacy System with 36 Cambridge Ceiling Qt Emitters and Qt X 300D 3-Zone White Noise Generator with Dante for up to 3600SF
Brand: Cambridge
SKU: SMSS-QTX300D36EMITTERS
Price: 8648 USD
Availability: InStock

Write a Review

Part #:

SMSS-QTX300D36EMITTERS

Model #:

SMSS-QTX300D36EMITTERS

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This speech privacy system covers up to 3600SF and helps promote patient relaxation by pleasantly raising the ambient sound level in your environment by emitting just the right amount of acoustically optimized masking noise which can help to reduce noise distractions and eavesdropping, perfect for healthcare facilities and medical offices to protect sensitive information and provide a more pleasant atmosphere.

Description

Inside the Design

This sound masking system is an innovative solution to help achieve speech privacy in doctors, clinic and urgent care exam rooms as well as provide office noise cancellation, by making human speech less intelligible. The Qt X 300D control module is a compact three-zone networkable controller and with 36 speakers can cover approximately 3,600SF and is expandable up to 36,000SF with additional Qt Emitters, the two Qt wall volume controllers allow you to easily make adjustments. Perfect for waiting rooms, reception areas, patient rooms, exam rooms and Doctor's offices.

Sound System Features:

Up to 3 zones with approximately 3,600 sq ft of coverage
180 degree dispersion of direct field sound masking
Clear, quality paging and background music capabilities
Reduces acoustical interference by using four uncorrelated channels
Precise control over where masking sound is emitted
Small, powerful speakers are virtually invisible in open ceilings
Plug and play installation and easy configuration

About the System Components

This Pro Acoustics designed system provides sound masking for healthcare applications and includes 36 Cambridge Qt Emitters, a Qt X 300D 3-zone sound masking generator and control module with Dante media network, two RC3 Qt in-room decora style volume controls and two 25' plenum-rated volume controls cables.

Not sure if this is the right Sound Masking solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

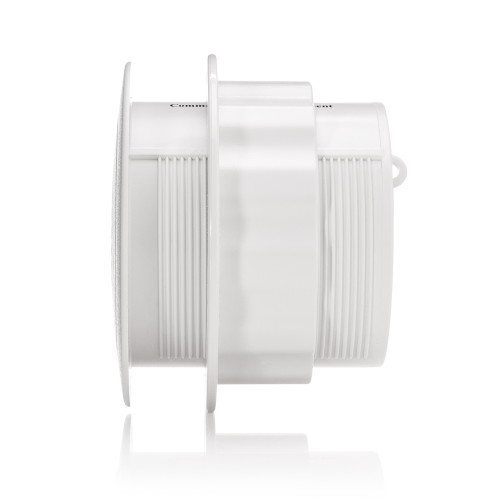

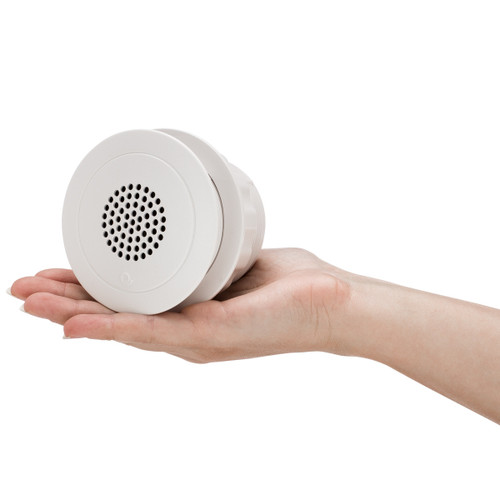

Cambridge Qt Emitters Sound Masking Speakers:

Wide dispersion direct field speakers with 1.25" (3.17 cm) drivers
Small driver size results in nearly 180-degree dispersion of direct field sound masking
Plug and play installation and easy configuration
Reduces acoustical interference by using four uncorrelated channels
DIP switches attenuate the volume level up to 9 dB in 3 dB decrements for easy micro-zoning
Plenum rated, UL-listed and complies with UL 2043
Comes standard with slip ring for acoustical tile mounting

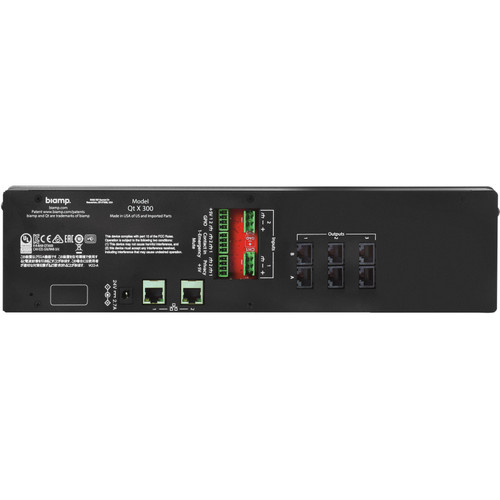

Cambridge Qt X 300D Multi-Zone Sound Masking Generator with Dante:

Compatible with Qt Standard emitters and Qt Active emitters
Supports up to 3 zones
Dante media network
2 audio inputs for paging and music
Contact closure integrates with fire alarm systems

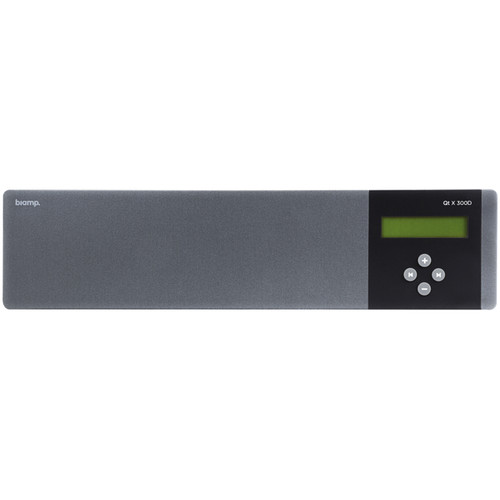

Front panel with LCD
Front Panel Lock (via software control)
Auto ramping
Event scheduling
Adjustable equalizer for masking and audio inputs
4 non-correlated sound masking audio sources per zone
Built-in clock with system NTP support
Wall mount bracket included, optional rack mount bracket also available
Dual network ports (media / control)
Web interface control by any web-enabled device
Third party control API/Ethernet
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems' five-year warranty
Manufactured in the U.S.A.
TAA compliant
GSA eligible

Cambridge RC3 Qt In-Room Volume Control with Decora Style Plate:

Decora® centerplate, faceplate, and knob available in white
Features 6 separate volume settings, from -10.0 dB to 0.0 dB (nominal)
Bottom level setting installer selectable between Mute and –10.0 dB
Controls up to 8 Qt Emitters or 14 Qt Active Emitters
Mounts in most standard electrical boxes, including open back low voltage brackets

System Includes

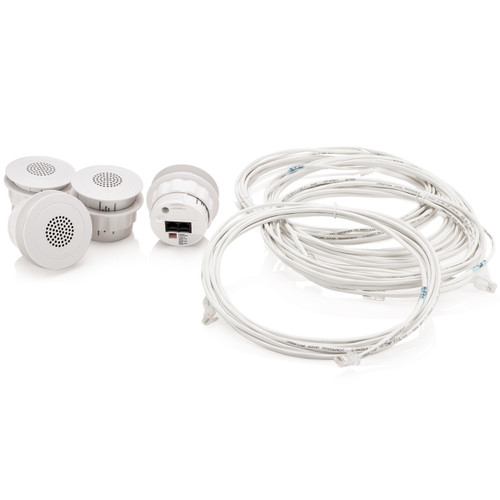

(36) Cambridge Qt Emitters Sound Masking Speakers

(36) 16ft UTP Cables

(1) Cambridge Qt X 300D 3 Zone Sound Masking Generator and Control Module with Dante Media Network
(2) Cambridge RC3 Qt In-Room Volume Controls with Decora Style Plate
(2) Cambridge CC-25-W Plenum-Rated Cables, White - 25ft
