The Peavey DM™112 is a two-way sound reinforcement system based on a heavy-duty 12” woofer and a DX™14 titanium diaphragm dynamic compression driver mounted on a 110 by 80 degree coverage Quadratic Throat Waveguide™.

Description

Peavey Dark Matter DM 112 12" Powered Speaker System

In 1975, Peavey revolutionized the working man's loudspeaker with the SP®1. Now, Peavey does it again with the Dark Matter series of enclosures. Thanks to its new advanced DSP-equipped power section, the high-S.P.L. (Sound Pressure Level) Dark Matter series outperforms any existing enclosure in its category.

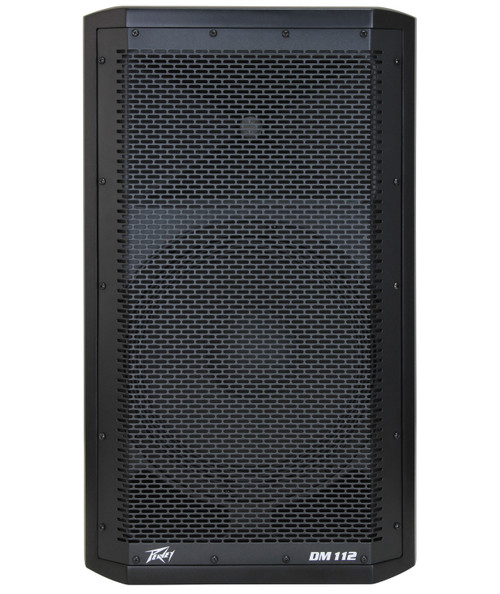

The DM™112 is a two-way sound reinforcement system based on a heavy-duty 12” woofer and a DX™14 titanium diaphragm dynamic compression driver mounted on a 110 by 80 degree coverage Quadratic Throat Waveguide™. It’s contemporary appearance coupled with exceptional performance offer an highly desirable combination. The light yet durable injection-molded plastic enclosure with molded-in stand mount cup eases portable use for live music or PA sound. The trapezoidal cabinet has three handles for ease of portability, and two extra angled sections on either side to allow use as a floor monitor. A full length black powder coated perforated steel grille provides system protection and a professional appearance.

The Dark Matter LCD display and associated selector knob allow users to choose various parameters of operation for the DSP-based EQ. This includes bass and treble control access, as well as EQ presets for different applications or speaker positions/locations. These presets provide users with a highly flexible method of configuring the powered speaker system for a specific use with minimal time and effort.

Fan cooled for maximum reliability, the DM 112 features Peavey's exclusive Quadratic Throat Waveguide™ technology that helps deliver pristine, precise sound.

The ultra-reliable Dark Matter series enclosures are built tough with steel grilles and rugged injection molded cabinets. Their convenient design allows for use as floor monitors or pole-mounted speakers. Perfect for band, DJ or other musical applications, the Dark Matter enclosures produce crystal clear professional audio.

Features

  • Two-way bi-amplified analog amp powered speaker system
  • DSP I/O is at 96 kHz and 24 bits, with low-jitter, professional grade components
  • Fan cooled for maximum reliability
  • Exclusive Quadratic Throat Waveguide™ technology, 110 by 80 degree coverage
  • A Mic/Line switch provides for two different gain settings
  • Thru output is via a male XLR jack
  • Multiple Factory Preset EQ settings for the DSP crossover system
  • Dynamic bass boost function
  • Rugged plastic injection-molded trapezoidal enclosure
  • Cabinet has dual rear corner angled sides for floor monitor use
  • Full-coverage perforated steel grille, with powder coat finish
  • DX™14 compression driver, with 1.4 inch titanium diaphragm
  • Pole mount molded-in for 1 3/8" diameter poles
  • 12" heavy-duty woofer
  • Input is via a combo female XLR and 1/4" TRS phone jack with balanced input
  • User Preset EQ storage provisions allow storing custom presets for later recall
  • DSP processing is 64 bit double-precision

Specifications

Frequency Response 68 Hz to 19 kHz, +/- 6 dB, anechoic environment
Nominal Sensitivity 96 dB (average)
Maximum Sound Pressure Level (1 m) 124 dB SPL peak with music
Transducer Complement Heavy-duty 12" woofer with 1 1/2" voice coil & 32 oz. magnet
DX™14 1.4" titanium diaphragm dynamic compression driver
Box Tuning Frequency 52 Hz
Electroacoustic Crossover Frequency 3,100 Hz
Crossover Internal Electronic DSP
Input Connections One combo female XLR / 1/4" phone jack providing balanced line-level operation from the 1/4" jack section, and the XLR section
Power Requirements Nominal 170 Watts, 120 VAC 60 Hz
Output Connections One male XLR jack
Dimensions (H x W x D) 25.3" (643 mm) x 14.38" (366 mm) x 14" (356 mm)
Weight 35.05 lbs (15.9 kg)
Shipping Weight 41.89 lbs (19 kg)
