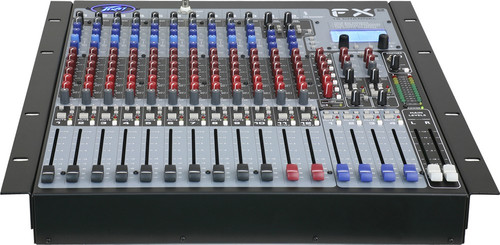

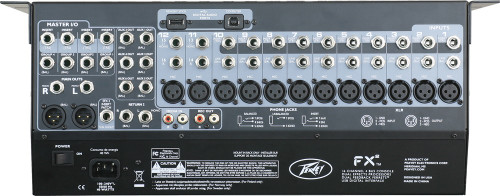

Peavey FX2 24 Channel Mixer with Effects (Discontinued)

Part #:
03600970
Model #:
FX2 24
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The FX2 24 is a digital/analog hybrid mixer with complete rack processing system. It has high-power dual DSP engine with improved digital effects and output processing including Feedback Ferret.

Description

The FX2 24 have features twice the processing power of the original. FX2 24 mixers feature new, Peavey-exclusive technology to enhance live sound reproduction and project studio recording, including Silencer mic preamps, which allow very high gain with low noise and distortion for crystal-clear signal reproduction. The four pre-fader auxes per channel provide four monitor mixes, while the two post-fader auxes are ideal for adding effects (built-in or outboard). These mixers also include dual DSP engines that allow multiple simultaneous effects assignable to any channel via aux 5/6. Onboard effects include reverb, reverb enhanced, delay, compression, expander, de-esser, chorus, flanger, tube emulator, vocal enhancer and gate.

Chain two processors together on each of the two available effects windows. The output section can be configured for Stereo, Dual Mono or Subwoofer mode with a built-in electronic crossover. The mixer features dual USB 2.0 ports, and the ''A'' USB connector allows streaming of digital audio directly to a computer or memory stick as well as exclusive, built-in MP3 compression. You can record your rehearsals, songwriting sessions or live performances directly to an inexpensive USB stick. No other hardware needed and then transfer them to your computer to burn CDs or to transmit electronically. Or insert a memory stick to playback audio files for use between sets.

Features

  • USB 2.0 "A" connection to record directly to or playback from memory stick.
  • USB 2.0 "B" connection for streaming digital out.
  • 3-band EQ with sweepable mid-frequency and variable low cut filters.
  • 2 stereo channels with dual mic/line inputs.
  • 48 volt phantom power.
  • 6 Aux sends.
  • 4 subgroups.
  • 100mm faders.
  • Double the processing power of the orginal FX Series.
  • All new switching power supply design is more efficient than the original.
  • Silencer™ mic preamp XLR inputs.

Specifications

Product Type 24 Channel Mixer with Effects
Mic Input Gain Adjustment Range 0 dB to +60 dB
Mic Input to Left/Right Balanced Output 80 dB (max gain)
Line Input Gain Range -20 dB to +40 dB
Line Input to Left/Right Balanced Output 60 dB (max gain)
Stereo Line Input Gain Range -∞ to +20 dB
Stereo Line Input to Left/Right Balanced Output +30 dB direct to L/R output - +40 dB via channel (max gain)
Frequency Response Mic Input to Left/Right Output: 20 Hz to 20 kHz 0 dB/-1 dB
0.01% 20 Hz to 20 kHz Mic to Left/Right Output 22 Hz to 22 kHz BW
0.005% Mic Pre-amp 22 Hz to 22 kHz BW
Residual Noise Master Left/Right: -100 dBu, -82 dBu, -80 dBu
Residual Noise Groups 1-4: -98 dBu, -90 dBu, -83 dBu
Residual Noise Aux 1-6: -101 dBu, -81 dBu
S/N Ratio (Ref: +4dBu) Master Left/Right: 104 dB, 86 dB, 84 dB
S/N Ratio (Ref: +4dBu) Groups 1-4: 102 dB, 94 dB, 87 dB
S/N Ratio (Ref: +4dBu) Aux 1-6: 105 dB, 85 dB
Equivalent Input Noise (EIN) -129 dBu (Mic input terminated with 150 Ohms)
Adjacent Input Channels (1 kHz) 70 dB typical
Mute Button Attenuation (1 kHz) 80 dB typical
Left to Right Outputs (1 kHz) 70 dB typical
Channel Fader Kill (1 kHz) 80 dB typical
Common Mode Rejection Ratio (Mic Input) -50 dB minimum (20 Hz to 20 kHz), -60 dB typical @ 1 kHz
Phantom Power +48 volts
Signal/Clip Indicators Yellow: -20 dBu, Red: 2 dB below clipping
Power Requirements 100-240 VAC 50/60 Hz 55 watts nominal
Width Packed 25" (63.5 cm)
Height Packed 28" (71.12 cm)
Depth Packed 11.5" (29.21 cm)
Weight Packed 35 lbs (15.876 kg)
