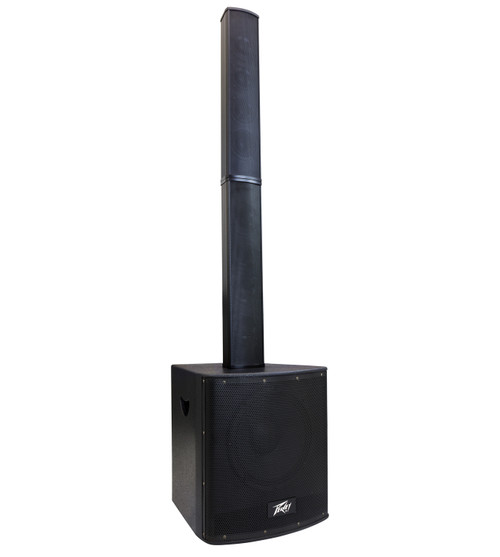

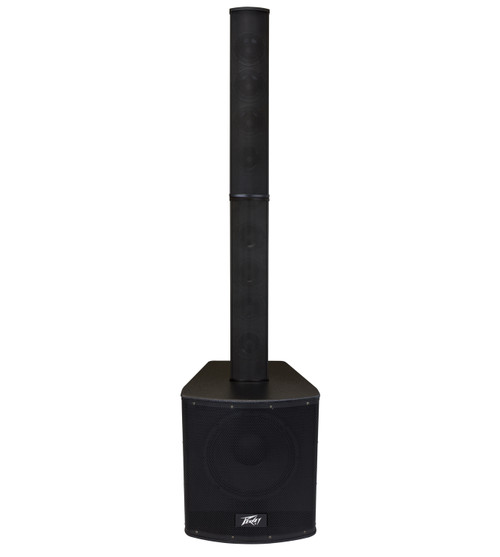

Peavey P2 Powered Line Array System

Home /
Peavey P2 Powered Line Array System (Discontinued)

Description

Details

The Peavey P2™ powered line array system is the perfect solution to provide a wide audience coverage in a low profile package. With incredible 20Hz to 20kHz amplifier fidelity in a super compact design, this portable PA system delivers clarity and performance previously unavailable in this category.

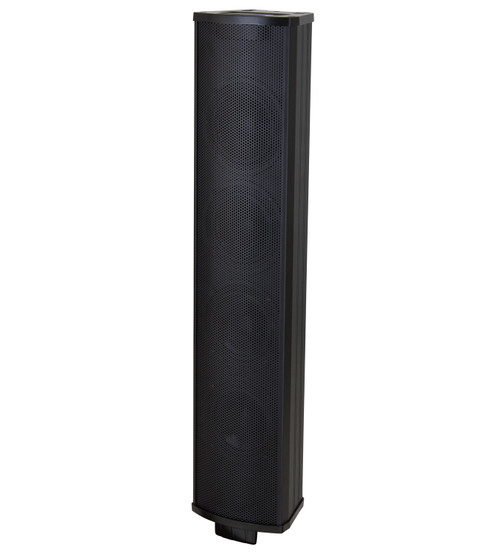

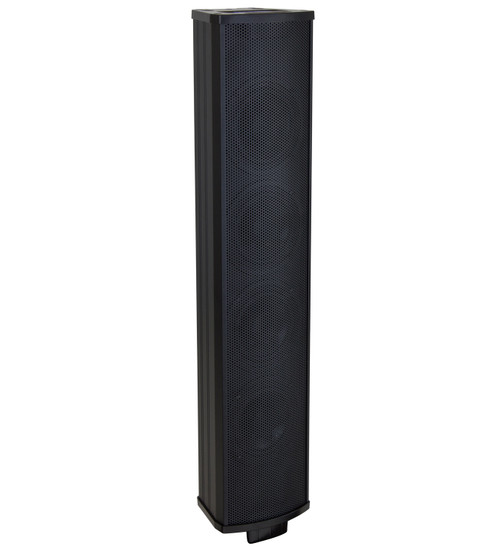

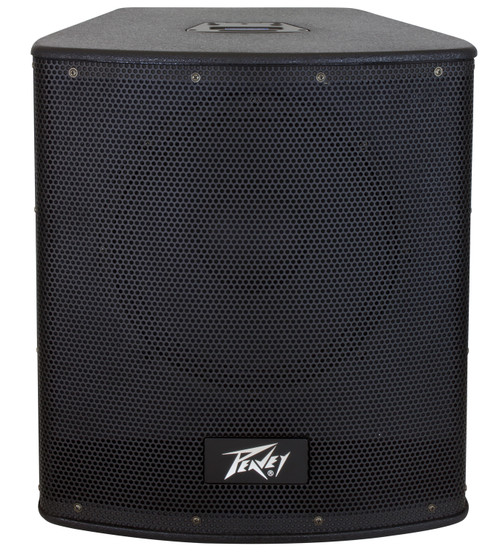

Eight custom 4" drivers deliver pristine clarity whether you are a DJ or a performing artist. The P2's 12" sub is the perfect combination of portability and punch. On board advanced DSP provides optional frequency boost/cut for a variety of audio applications.

Features

Features

Compact and portable design, with clear, powerful sound
12" Powered Subwoofer
Eight 3 1/2" drivers internally crossed over
3 Channel input mixer with independant level control per channel
Channel 1 XLR/1/4" combi with mic/line pad switch
Channel 2 L/R 1/4" input
Channel 3 L/R RCA Stereo inputs
Master Signal/Clip LED Indicator
DSP voicing controls
XLR line level out for linking systems

Specification

Power Supply	100 - 240VAC ~ 50/60Hz
Power Consumption	230W
Power Output	Woofer: 130 Watts peak available power, 65 Watts Cont. into 8 ohms (THD 1 %) Tweeter: 120 Watts peak available power, 60 Watts Cont. into 8 ohms (THD 1 %)
Frequency Response	56 Hz ~ 20K Hz (+/- 10 dB)
Crossover Frequency	Sub to pole: 150Hz Top module to bottom module: 2 kHz
Max SPL	122 dB
Input Sensitivity	MIC: 30mV +/-5mV LINE: 1V +/-0.1V
Woofer	12"
Tweeters	4" x 8
Dispersion	50° horizontal by 35° vertical
Nominal Impedance	8 Ohms
S. P. L.	93 dB ± 3 dB (1w/1m)
Dimensions (H x W x D)	68" (1727 mm) x 17.25" (438.15 mm) x 18.9" (481 mm)
Sub Weight	57.1 lbs (25.9 kg)
Satellite Weight (x 2)	18.5 lbs (8.4 kg)
Net Weight	76 lbs (34.5 kg)

Documents
