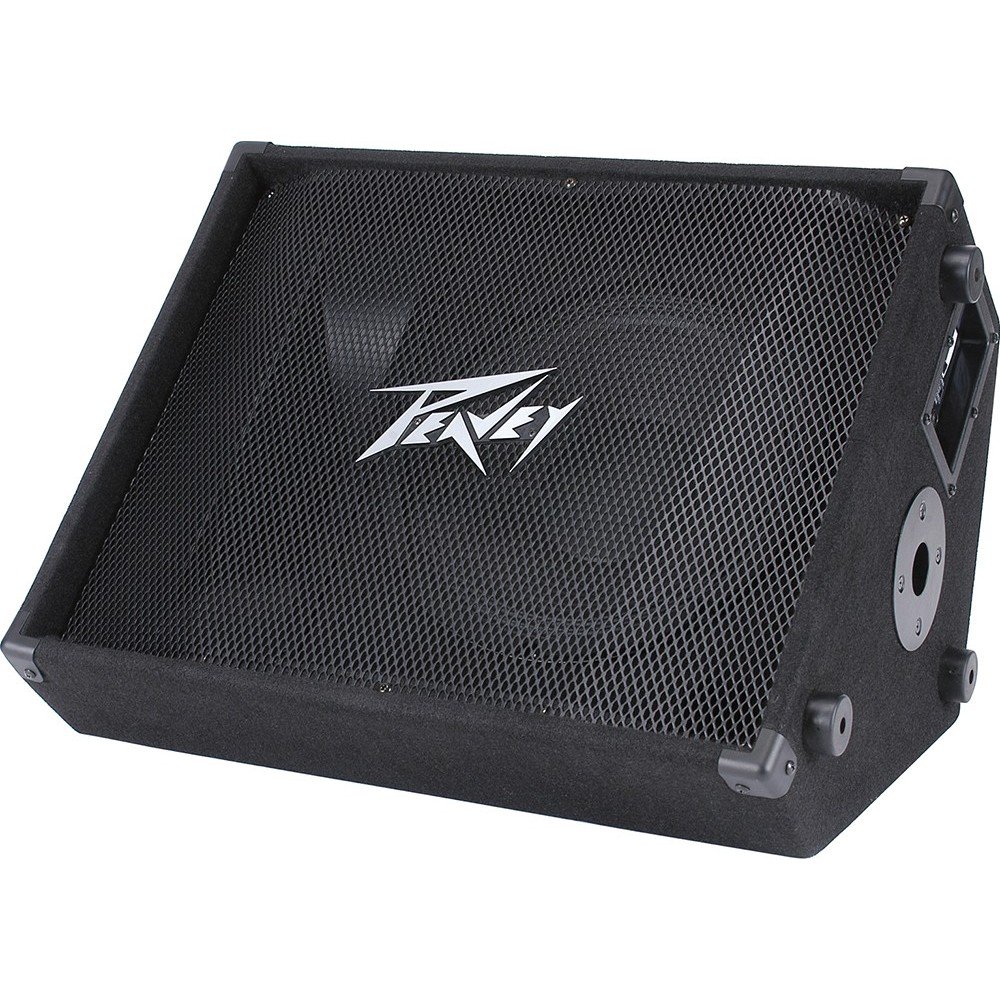

Make your vocals really cut through! Rated at 500W program and 1,000 watts peak power handling capability, the rugged, trapezoidal PV 12M is built to withstand the rigors of the road. The PV 12M can be angled at either 30 or 45 degrees from the floor in addition to being pole mounted. This two-way system features a 12" Sheffield® Pro 1200+™ premium woofer and a 14T™ 1.4-inch titanium-diaphragm compression driver coupled to a constant-directivity horn with our exclusive Sound Guard™ IV high-frequency driver protection. Two 1/4-inch, full-range parallel inputs allow easy daisy chaining. Top quality performance from a very affordable, low-profile stage monitor!
| Frequency range (-10 dB, half space) | 52 Hz to 21 kHz |
|---|---|
| Frequency response (±3 dB, half space) | 68 Hz to 17 kHz |
| Sensitivity (1W/1M) | 98 dB |
| Power rating (program) | 500 Watts |
| Power capacity (peak) | 1000 Watts |
| Maximum SPL | 127 dB |
| Transducer complement | Sheffield Pro 1200+™ 12" premium woofer and 14XT™ 1.4" titanium diaphragm dynamic compression driver |
| Nominal coverage pattern | 90˚ x 40˚ |
| Electro-acoustic crossover frequency | 2.9 kHz |
| Nominal impedance | 8 Ohms |
| Input connections | Two 1/4" phone jacks in parallel |
| Dimensions (H x W x D) | 22.38" (568.33 mm) x 17.75" (450.85 mm) x 12.56" (319.09 mm) |
| Weight | 37 lbs (16.8 kg) |
| Shipping Weight | 44 lbs (19.96 kg) |
