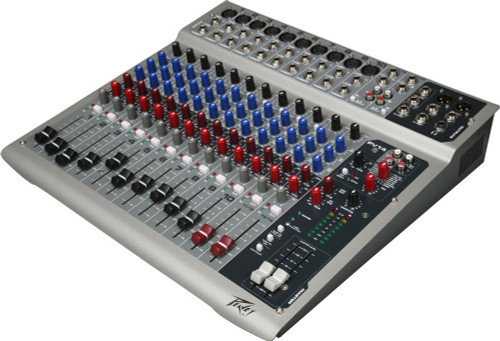

Peavey PV 14 Compact Mixer (Discontinued)

- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.
- Item has been deleted successfully.

Description

Details

The PV 14 mixer includes three-band EQ, effects send, monitor send on each channel and insert points on channels 1-10. With ten mono and two stereo channels, the PV 14 offers a total of twelve inputs. The master section includes 48 volt phantom power, built-in digital effects, effects send and return, assignable tape input and a unique master contour EQ that helps sweeten the mix. Dual XLR and 1/4 inch outputs allow the PV 14 to easily connect with other equipment. Sleek metal design adds strength, durability and looks like no other mixer in this price range. Rack mount kit available.

Features

Features

10 RQ (reference-quality) low noise microphone inputs with insert points
Channels 11/12 and 13/14 with dual switchable stereo line inputs
3-band EQ on all channels
LED clip, signal, mute indication
One pre-fader monitor send
One post-fader effects send
Precision 60 mm faders on input channels and stereo master outputs
Control room output
Global 48 volt phantom power, tape to control room and tape to mix assignments
Stereo outputs with 1/4" unbalanced and XLR balanced connectors
Rugged console design
Universal switching power supply
Built-in DSP effects processor

Specification

Gain
Mic Input Gain Adjustment Range	10 dB to 60 dB
Mic Input to Left/Right Balance Output	88 dB (max gain)
Line Input Gain Adjustment Range	-10 dB to 40 dB
Line Input to Left/Right Balance Output	60 dB (max gain)
Stereo Line Input Gain Adjustment Range	Off to +20 dB
Stereo Line Input to Left/Right Output	40 dB (max gain)
Frequency Response (Mic Input to Left/Right Output)	14 Hz to 25 kHz +0 dB/-1 dB
Total Harmonic Distortion
<0.02% 20 Hz to 20 kHz Mic to Left/Right Output	10 Hz to 80 kHz BW
<0.005% Typical	22 Hz to 22 kHz BW
Hum and Noise
Residual Noise (Master Left/Right)	-97 dBu, -90 dBu, -83 dBu
Residual Noise (Monitor Send)	-95 dBu, -80 dBu
Residual Noise (Effects Sends)	-100 dBu, -80 dBu
S/N Ratio (Ref: +4 dBu) (Master Left/Right)	101 dB, 94 dB, 87 dB
S/N Ratio (Ref: +4 dBu) (Monitor Send)	99 dB, 84 dB
S/N Ratio (Ref: +4 dBu) (Effects Sends)	104 dB, 84 dB
Equivalent Input Noise (EIN)	-129 dBu (input terminated with 150 Ohms)
Crosstalk/Attenuation
Adjacent Input Channels (1 kHz)	>90 dB
Left to Right Outputs (1 kHz)	>75 dB
Mute Button Attenuation (1 kHz)	>90 dB
Channel Fader Kill (1 kHz)	>85 dB
Common Mode Rejection Ratio (Mic Input)	50 dB minimum (20 Hz to 20 kHz); 70 dB typical @ 1 kHz
Meters	8 segment, peak reading (0 dB = +4 dBu)
Signal/Overload Indicators	Red LED lights 3 dB below clipping
Power Requirements	100-240 VAC 50/60 Hz 17 Watts
Dimensions (H x W x D)	3.5" (88.9 mm) x 16.13" (409.6 mm) x 14.75" (374.7 mm)
Shipping Dimensions (H x W x D)	6" (152.4 mm) x 20.562" (522.3 mm) x 17.625" (447 mm)
Weight	12.1 lbs (5.5 kg)
Shipping Weight	15 lbs (6.8 kg)
