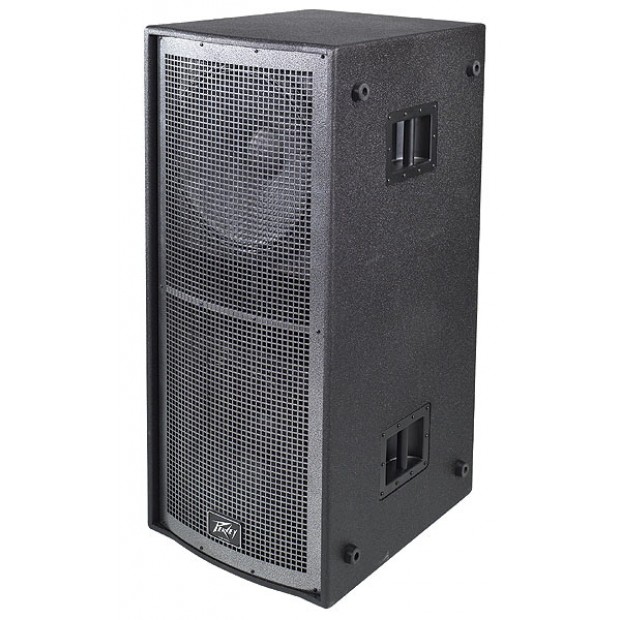

Peavey QW 218 18" Radiator Subwoofer (Discontinued)

Part #:
00571310
Model #:
QW 218
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The QW-218 incorporates two of the new extra-high power Low Rider 18" woofers and a new compact cabinet design. The QW-218 is a direct radiator subwoofer designed specifically for the high end proaudio user.

Description

The Low Rider 18" driver is a milestone in high-power subwoofer design. An incredible 3200 Watt program rating and extra-long cone excursion come together to produce amazing new levels of clean, deep bass. This makes the QW-218 a superior choice for the bottom end of any high powered sound system.

The QW-218 is unusually compact for its power handling, SPL output, distortion performance, and bass extension. This is made possible by special characteristics designed into the Low Rider woofer. The QW-218 is well braced and very stiff, as internal pressures produced by the Low Rider woofer can be very high. The vent design integrated into the enclosure includes a vertical brace to further increase enclosure stiffness.

The QW-218 vent's large area and long path length allow for a large volume of air to move with very low resistance. This is important due to the massive airflow volumes that the Low Rider woofer can produce.

The QW-218 is constructed of premium .720" plywood and is covered with a tough, durable black Hammer Head™ polyurethane coating, making this system rugged and roadworthy. A 16- gauge powder-coated perforated metal grille covers the front of the system to protect the speakers from external damage.

Features

  • Two new Peavey Low Rider 18" Subwoofers
  • 3,200 Watts of program power
  • Extreme low frequency response down to 30 Hz
  • Neutrik® Speakon® Professional input connectors
  • Very compact design
  • Black Hammer Head Polyurethane coating

Specifications

Frequency response Anechoic: 47 Hz – 1.5 kHz (±3 dB)Half-space: 40 Hz – 1.5 kHz (±3 dB)
Usable low frequency limit Anechoic: 34 Hz,Half-space: 30 Hz
Power handling 1600 W continuous,3200 W program,6400 W peak
Sound pressure level Anechoic: 100 dB SPL, (2 V input)Half-space: 106 dB SPL
Maximum sound pressure level Anechoic:132 dB SPL continuous138 dB SPL;Half-space:138 dB SPL continuous144 dB SPL peak
Transducer complement 2 x 18" individually ventedLow Rider™ 18" Sub
Box tuning frequency 36 Hz
Recommended active crossover frequency 150 Hz at 18 dB/octave
Impedance Nominal: 8.0 Ω,Minimum: 7.3 Ω
Input connections 2 x 4-pin Neutrik® Speakon® inputsin parallel,1 x 8-pin Neutrik Speakon input
Input connections 1 x 4-pin Neutrik Speakon thru (foruse with 8-pin input)
Enclosure materials and finish 3/4" plywood finished in thedurable Black Hammer Head™polyurethane coating
Dimensions (H x W x D) 49.0" x 21.00" x 26.75"1244 mm x 533 mm x 679.45 mm
Net weight 147 lbs. (67.2 kg)
