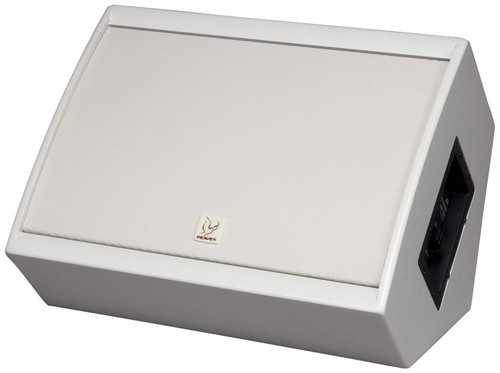

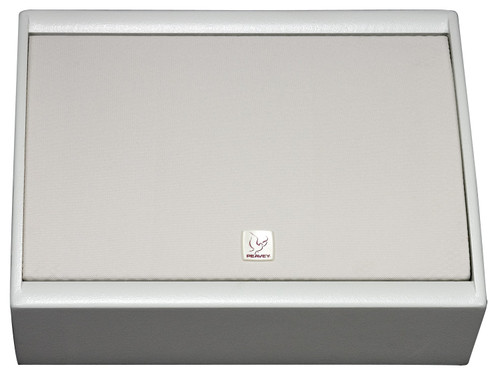

The Peavey SSE 10M Sanctuary Series 10 inch Monitor Speaker is a low-profile monitor enclosure featuring high power ratings with custom components, a sleek look and a unique, snap-in metal grille. The SSE 10M is a full-range, two-way system featuring the highly acclaimed Peavey 14XT titanium compression driver with the diverse Sound Guard IV tweeter protection network and a maximum-performance 10" woofer for a smooth response. The SSE 10M is rated at 400 Watts program and 800 Watts peak. This lightweight speaker system may be placed on stage at angles of either 30? or 45? and is ideal for smaller venues where stage space is at a premium. Connections are made using a four-pin Neutrik Speakon or a paralleled two-position terminal block for additional cabinets. The SSE 10M is available in black and off-white finishes.
| Product Type | 10" Monitor Speaker |
|---|---|
| Frequency response | 80 Hz to 17 kHz (±3 dB) |
| Usable low frequency limit (-10 dB point) | 60 Hz |
| Power handling (Full Range) | 400 Watts program, 800 Watts peak |
| Sound pressure level | 95 dB SPL (2.83 V input) |
| Maximum sound pressure level | 118 dB SPL continuous, 124 dB SPL peak |
| Transducer complement | |
| Low frequency section | Premium grade 10" woofer |
| High frequency section | Peavey 14XT™ titanium diaphragm compression driver on a 90° x 60° constant directivity horn |
| Box tuning frequency | 78 Hz |
| Harmonic distortion | 1% rated power |
| Second harmonic | 100 Hz: 0.43%, 1 kHz: 0.07% |
| Third harmonic | 100 Hz: 0.58%, 1 kHz: 1.02% |
| Harmonic distortion | 10% rated power |
| Second harmonic | 100 Hz: 2.28%, 1 kHz: 0.40% |
| Third harmonic | 100 Hz: 0.97%, 1 kHz: 2.02% |
| Electro-acoustic crossover frequency | 2.8 kHz |
| Impedance (Z) (Full Range) | Nominal: 8 Ω, Minimum: 5.4 Ω |
| Input connection | One four-pin Neutrik® Speakon® in parallel with one two-position terminal strip |
| Dimensions (H x W x D) | 18" (457.2 mm) x 22.25" (565.15 mm) x 16" (406.4 mm) |
| Weight Unpacked | 23.81 lbs (10.8 kg) |
| Weight Packed | 28.66 lbs (13 kg) |
