Pioneer XPRS 115S 15" Reflex Active Subwoofer (Discontinued)

Description

Details

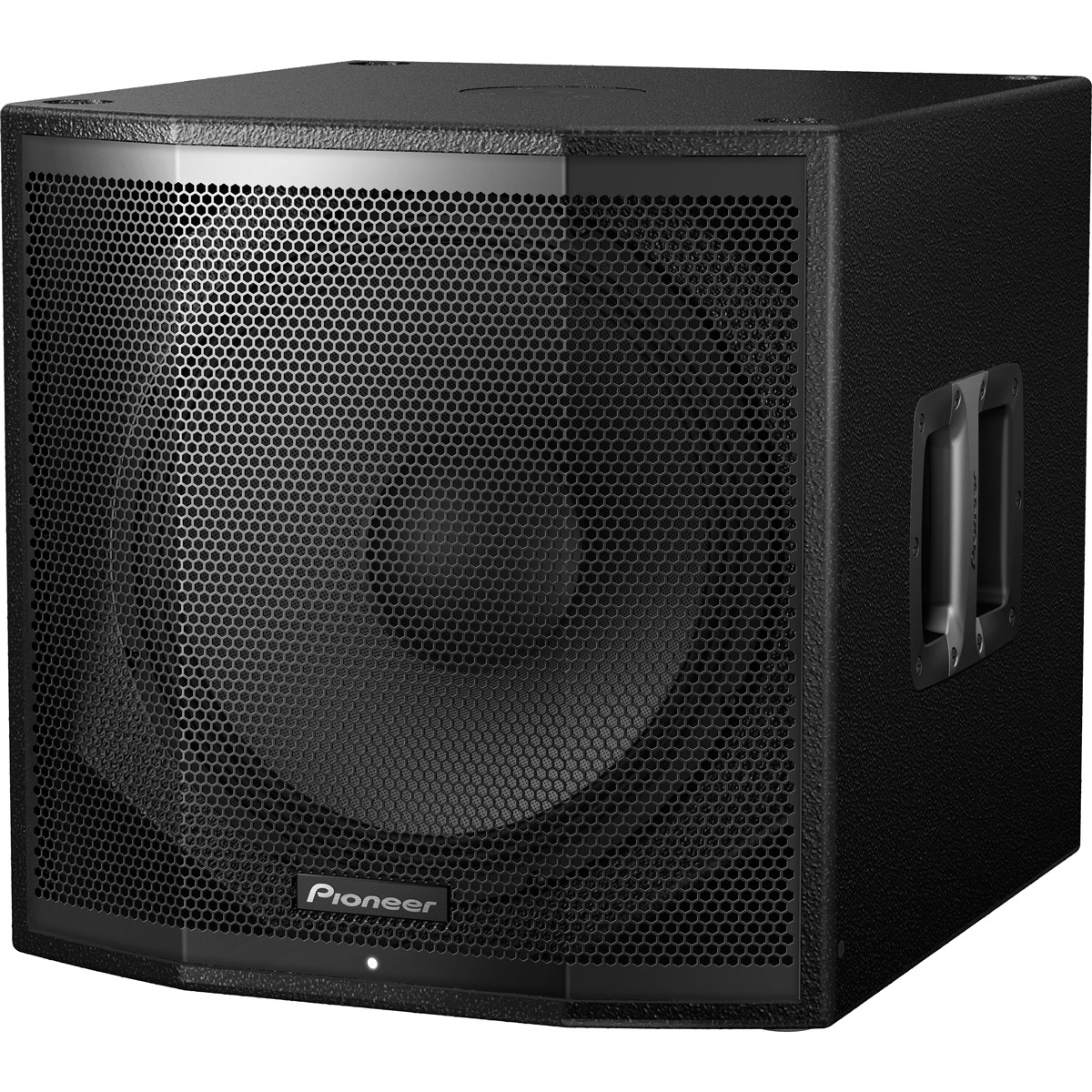

Pioneer XPRS 115S 15" Reflex Loaded Active Subwoofer

The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensures these mobile speakers are reliable and energy-efficient, making them suitable for all music genres and environments.

The XPRS115S is the perfect complement to enhance the tight and powerful low frequencies. On top of the slanted baffle enclosure with 15-inch neodymium drivers, this single 15-inch subwoofer features a versatile Crossover switch so you can easily adjust the low pass filter cut-off at various stages between 80 Hz and 150 Hz.

Features

Features

Tight bass range - The XPRS115S slanted baffle enclosure – housed in a compact 15-mm birch plywood cabinet – and high-quality 15-inch LF drivers deliver rich, powerful low frequencies similar to those produced by the XPRS215S dual 15-inch subwoofer
Powersoft Class D amps - Powersoft's Class D amp modules produce 2400W (peak) or 1200W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments
Instant control - A versatile Crossover switch lets you adjust the low pass filter cut-off at stages between 80 Hz and 150 Hz. At the same time, the Phase switch allows you to choose a positive or negative polarity to prevent multiple subwoofers from canceling each other out
Advanced protection - The XPRS subwoofer is packed with features to protect the drivers, amp and power supply – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system
Flexible connectivity - The subwoofer has 2 balanced XLR/TRS combo sockets so you can input a couple of devices at the same time. Plus 2 balanced XLR through outputs enable easy connection to other speakers and subs

Specification

Frequency Range	40 - 160 Hz
Maximum Sound Pressure	133 dB
Inputs	2 XLR/TRS Combo (balanced)
Outputs	2 Through output XLR (balanced)
Amplifier Output	Class D 2400W peak / 1200W continuous
Impedance	10 kΩ
Driver	15 inch ferrite LF cone driver
Enclosure	15 mm birch plywood
Dimensions (H x W x D)	18.74" (476 mm) x 18.9" (480.06 mm) x 24.92" (632.97 mm)
Weight	67.46 lbs (30.6 kg)
