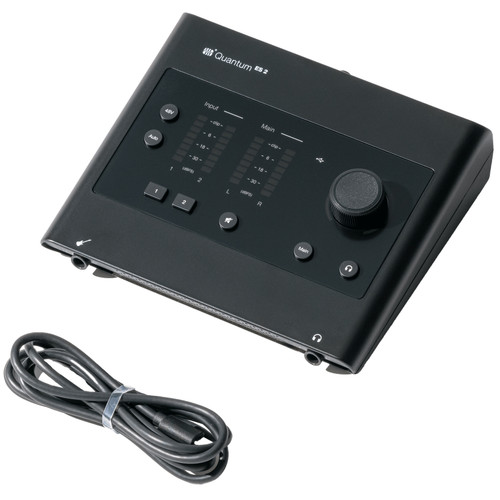

The Quantum ES 2 is a 2x2, 24-bit/192 kHz recording audio interface for musicians, producers, and audio creators. The interface features two newly redesigned high-definition MAX-HD mic preamps with +75 dB of gain, making it ideally suited for a wide range of microphones. Guitarists and bassists can use the front-facing instrument input, co-developed with Fender engineers.
| Microphone Inputs: | |
|---|---|
| Connection Type | XLR Female (Combo), Balanced |
| Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Input Impedance | 1600 Ohms |
| Dynamic Range | 113 dB (A-Weighted, Minimum Gain) |
| EIN | -129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted) |
| THD+N | 0.001% (1 kHz, Minimum Gain) |
| Gain Range | 75 dB |
| Maximum Input Level | +14 dBu (Balanced, Minimum Gain) |
| Phantom Power | +48 VDC |
| Line Inputs: | |
| Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Input Impedance | 10K Ohms |
| Dynamic Range | 114 dB (A-Weighted, Minimum Gain) |
| THD+N | 0.001% (1 kHz, Minimum Gain) |
| Gain Range | +/- 10 dB |
| Maximum Input Level | +15 dBu (Balanced, Minimum Gain) |
| Instrument Inputs: | |
| Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Dynamic Range | 111 dB (A-Weighted, Minimum Gain) |
| THD+N | 0.002% (1 kHz, Minimum Gain) |
| Gain Range | 75 dB |
| Maximum Input Level | +15 dBu (Unbalanced, Minimum Gain) |
| Headphone Outputs: | |
| Connection Type | One - 1/4" TRS Female Stereo |
| Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Impedance Working Range | 22 Ohms |
| Dynamic Range | 111 dB (A-Weighted) |
| THD+N | 0.02% (1 kHz) |
| Maximum Output Level | 7.5 dBu (50 Ohms) |
| MIDI I/O | 3.5 mm Type-B |
| Power Voltage | 120V |
| Color | Black |
| Dimensions (H x W x D) | 1.9" (48.3 mm) x 6.9" (175 mm) x 6.2" (158 mm) |
| Weight | 1.5 lbs (0.68 kg) |
