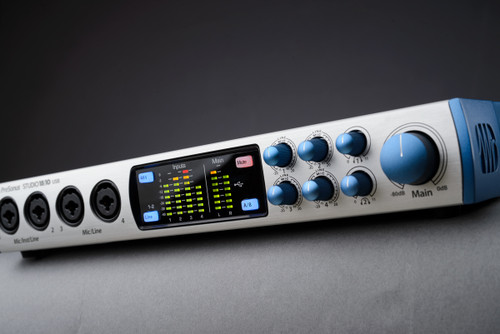

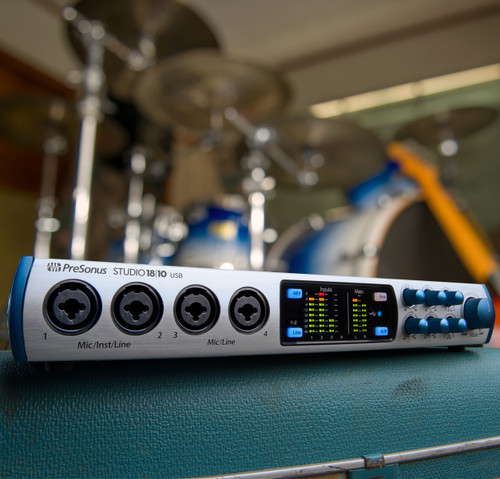

Presonus Studio 1810 18x8 USB 2.0 24-bit 192 kHz Audio Interface Recording System (Discontinued)

The Electronic Musician’s Choice

A fine choice for project studios, the Studio 1810 USB 2.0 audio/MIDI interface records up to 18 simultaneous inputs with its 4 XMAX Class A preamps, 4 dedicated 1/4" TRS line inputs, and ADAT and S/PDIF inputs. Eight outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with included Studio One® Artist for Mac® and Windows® and UC Surface for Mac, Windows, iPad®, and Android™. You also get a left and right main output with dedicated level control and Mute; four balanced, DC-coupled line outputs; two headphone outputs with A/B switching for monitoring different mix streams; and S/PDIF and MIDI I/O.

Designed for Creative Electronic Music Production

Almost everyone at PreSonus is a musician, and many of us are DJs and electronic musicians. So we understand the need for a high-quality interface with the best sounding preamps available and top quality digital converters. We need cue mix monitoring for live DJ gigs as well as in the studio. We need direct line inputs for our external synths, and we need expandability because we can’t resist adding more synths to our collection. That’s why we created the Studio 1810. With 18 flexible inputs, 8 outputs, cue mix monitoring on the first of two headphone outputs, and an onboard DSP monitor mixer that’s integrated into both Studio One® Artist and UC Surface, the Studio 1810 delivers superior audio and the features electronic music producers and DJs need.

Superior Sound

High-grade digital converters, ultra-low-jitter clocking, and our famous XMAX preamps add up to a superior recording and listening experience. The Studio 1810 operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. XMAX Class A microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you’ll hear every breath, transient, and detail in your recordings, making it ideal for both vocal production and sampling.

All the Inputs You Need, When You Need Them

In addition to XMAX mic preamps, the first two Studio 1810 inputs provide instrument preamps so you can directly connect guitars and basses without a D.I. box. All four combo connections feature line level inputs with 40 dB of gain for low-level line devices, like that TR-808 you snagged off Craigslist. Four direct-to-ADC balanced line inputs are ideal for connecting synthesizers, outboard preamps, and channel strips. And the Studio 1810 is equipped with eight channels of ADAT Optical input (four channels at 96 kHz), enabling you to expand your inputs with an 8-channel converter like our premium-quality DigiMax DP88, so your recording system can grow along with your synth collection.

In the Studio and on the Gig

The first of two high-powered headphone outputs features Cue Mix A/B so you can choose between two mixes with a button press, providing the flexibility you need for live DJ performances and studio collaboration. In addition to L/R main outputs with front-panel Mute and level controls, you get four balanced line outputs for monitor mixing plus stereo S/PDIF digital I/O. All line-level outputs are DC coupled, enabling them to send control voltages. An 18x6 monitor mixer lets you create three stereo near-zero-latency monitor mixes. Studio 1810’s MIDI I/O enables connection to a keyboard, sound module, or control surface, as well, making this versatile interface the heart of your studio.

World-Class Recording Software Included

The Studio 1810 interface works with virtually all Mac and Windows audio-recording software but it really shines when used with the included PreSonus Studio One® Artist DAW. Built by creative people for creative music production, Studio One is easy to learn and enables you to compose, record, and produce your masterpiece without getting distracted by the tools. The mix controls for the Studio 1810’s onboard monitor mixer are seamlessly integrated into Studio One. Using Studio One’s unique Z-Mix feature, you can create near zero-latency monitor mixes without leaving your recording environment. You also can remote-control monitor mixes using free PreSonus UC Surface touch-control software for Mac®, Windows®, iPad®, and Android™.

The Flexible Production Tool

With cue mix headphone monitoring, onboard monitor mixing, sweet-sounding preamps, abundant line inputs, and up to 192 kHz sample rate, the Studio 1810 will give you the ultra-high-def sound and versatile connectivity you need to make state-of-the-art recordings and perform live. An excellent companion for any recording software, the Studio 1810’s integration with Studio One Artist and remote control with UC Surface provide a complete and thoroughly professional recording solution. Check out the Studio 1810 at your favorite PreSonus dealer.

• 24-bit/192 kHz, USB 2.0 18x8 audio interface (8x8 at 192 kHz)
• 2 mic/instrument/line inputs and 2 mic/line inputs all with XMAX Class A mic preamps and +48V phantom power
• 4 back panel 1/4” TRS balanced line inputs
• 8 channels of ADAT Optical input (4 channels at 96 kHz)
• 2 1/4" TRS balanced DC coupled main outputs with level control and dedicated mute button
• 4 1/4" TRS balanced DC coupled line outputs
• 2 headphone outputs with A/B switching on headphone output 1
• LED metering for all analog inputs and main outputs
• S/PDIF and MIDI I/O
• Flexible routing, zero-latency monitor mixing, and control-room integration with included Studio One Artist
• Monitor mix control with free UC Surface for Mac®, Windows®, iPad®, and Android™
• Studio Magic Plug-in Suite included
