Presonus StudioLive RM32AI 32 Channel Digital Mixer (Discontinued)
Presonus StudioLive RM32AI 32 Channel Digital Mixer (Discontinued)
Presonus StudioLive RM32AI 32 Channel Digital Mixer (Discontinued)
Presonus StudioLive RM32AI 32 Channel Digital Mixer (Discontinued)
Presonus StudioLive RM32AI 32 Channel Digital Mixer (Discontinued)

Presonus StudioLive RM32AI 32 Channel Digital Mixer (Discontinued)

Write a Review
Part #:
StudioLive RM32 AI
Model #:
RM32AI
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Presonus StudioLive RM32AI Active Integration 32x16x3 rack mount digital mixer combines UC-Surface touch control software with 32 recallable XMAX Class A preamps, 32 internal channels, 25 buses, 52x34 FireWire 800 recording interface, and more.

Description
Based on the StudioLive™ AI-series engine and controlled with powerful, battle-ready UC-Surface touch software for Mac®, Windows®, and iOS®, the StudioLive RM32AI rack-mount digital mixer is scalable and compact. It provides 32 inputs with recallable XMAX™ Class A preamps, 16 line outs, and 3 main outs (left, right, and mono/center); 32 internal channels and 25 buses; a 52x34 FireWire 800 recording interface; 96 kHz operation; and extensive signal processing.

 Designed for live-sound mixing and studio recording, the RM32AI’s Active Integration™ technology includes direct Wi-Fi and Ethernet networking and tightly integrated Capture™ recording software with true Virtual Soundcheck mode and Studio One® Artist DAW for Mac and Windows, and a Nimbit® account for online music promotion and distribution.

Features
  • Fully recallable mixer
  • 32 locking XLR inputs with recallable XMAX™ Class A mic preamps and +48V phantom power
  • 16 XLR line outputs on the front, mirrored on rear-panel DB25 jack
  • 3 XLR main outputs (left, right, mono) with analog trim pots
  • 32 LED meter grid
  • 32 internal channels
  • 25 mix buses
  •   16 aux mix buses
  •   3 main mix buses (left, right, mono)
  •   4 internal FX buses (2 reverb, 2 delay)
  •   Stereo solo bus
  • Fat Channel signal processing on all input channels and all buses, with 4-band parametric EQ, compressor, gate, limiter, and more
  • 52x34 direct digital FireWire recording interface

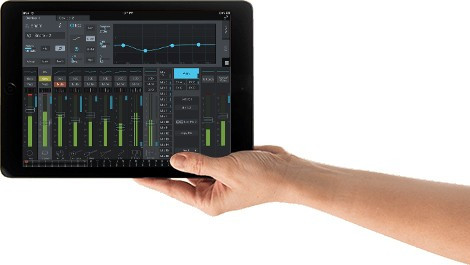

  • UC-Surface™ battle-ready, live mixing and control software
  •   Designed specifically for live sound mixing
  •   Multiplatform support for Mac®, Windows®, and iPad®
  •   Windows 8 multi-touch-compatible for large touchscreen mixing
  •   Contextual-based navigation for quick, intuitive access to all mixing functions

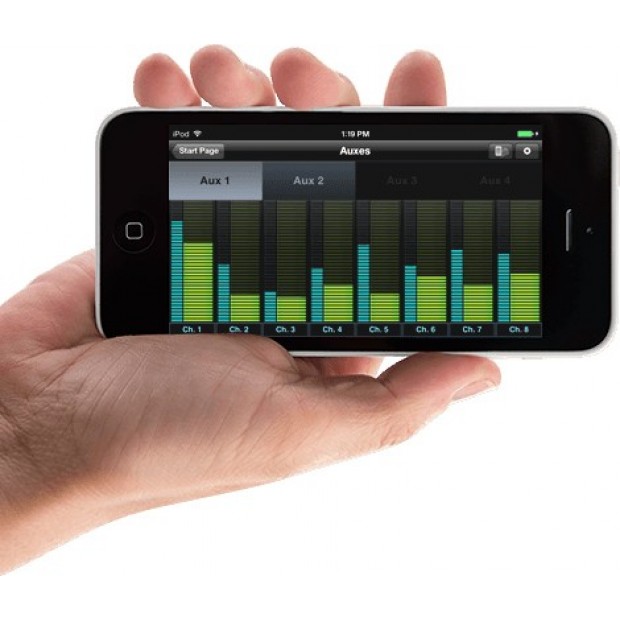

  • Compatible with free QMix™-AI personal monitoring control app for iPhone®/iPod® touch
  • Complete solution: Includes Capture™ live-recording software and Studio One® Artist DAW for Mac and Windows, and Nimbit® account for online music promotion and distribution.
  • USB jack and included Wi-Fi LAN adapter provides wireless control
  • 2 FireWire S800 ports, 1 Ethernet control port, and S/PDIF digital output
  • Option card slot for future expansion, Thunderbolt, Dante, and AVB cards coming soon
  • Up to 96 kHz operation
  • Front-panel Mute All button temporarily mutes all inputs and outputs
  • Stereo tape input (RCA jacks)
  • Headphone output with volume knob and selectable source
  • +48V Meters button to display phantom power assignment on the meter grid
  • 1x1 MIDI interface
  • 4U rackmount
  • Extensive library of tutorials and downloads
